SIGNAL GENERATOR

GSXR750R 1989 (K) (E01 E02 E04 E22)

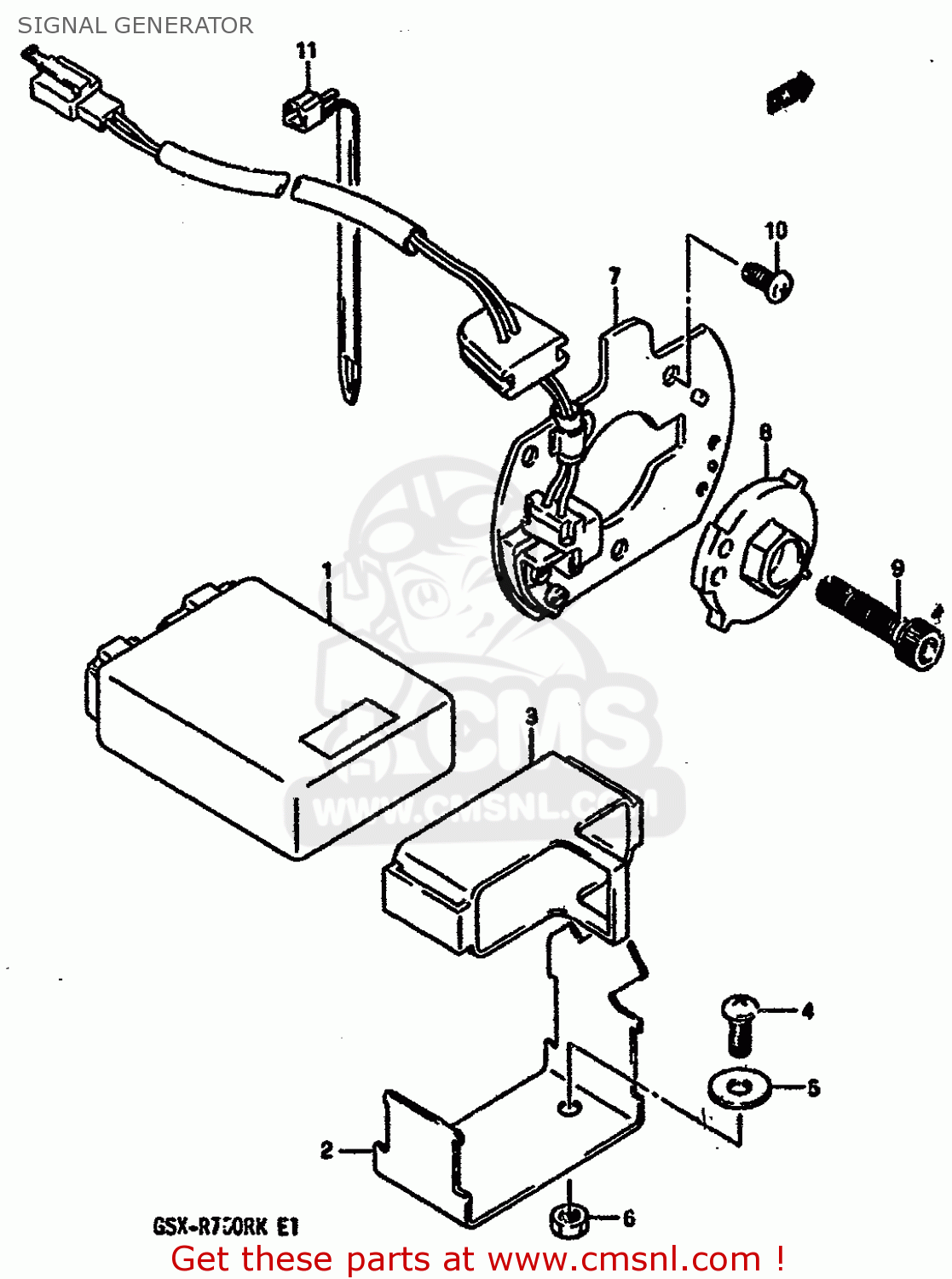

Signal generator diagram GSXR750R 1989 (K) (E01 E02 E04 E22)

SIGNAL GENERATOR GSXR750R 1989 (K) (E01 E02 E04 E22)

SIGNAL GENERATOR GSXR750R 1989 (K) (E01 E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1

3290007D00
ref: 1

IGNITER UNIT

€ 412.50

2

3293307D00
ref: 2

BRACKET

€ 0.00

3

3298040C00
ref: 3

CUSHION,IGNITER

€ 9.50

4

0211206126
ref: 4

SCREW

€ 1.50

5

09160060A6
ref: 5

WASHER

€ 2.00

6

0831012066
ref: 6

NUT

€ 2.00

7

3311007D00
ref: 7

SIGNAL GENERATOR ASSY

€ 143.00

8

3312019C00
ref: 8

ROTOR,SIGNAL

€ 182.00

9

0711008306
ref: 9

BOLT

€ 3.00

10

0211205107
ref: 10

SCREW

€ 2.00

11

0940714403
ref: 11

CLAMP(L:125)

€ 2.50
