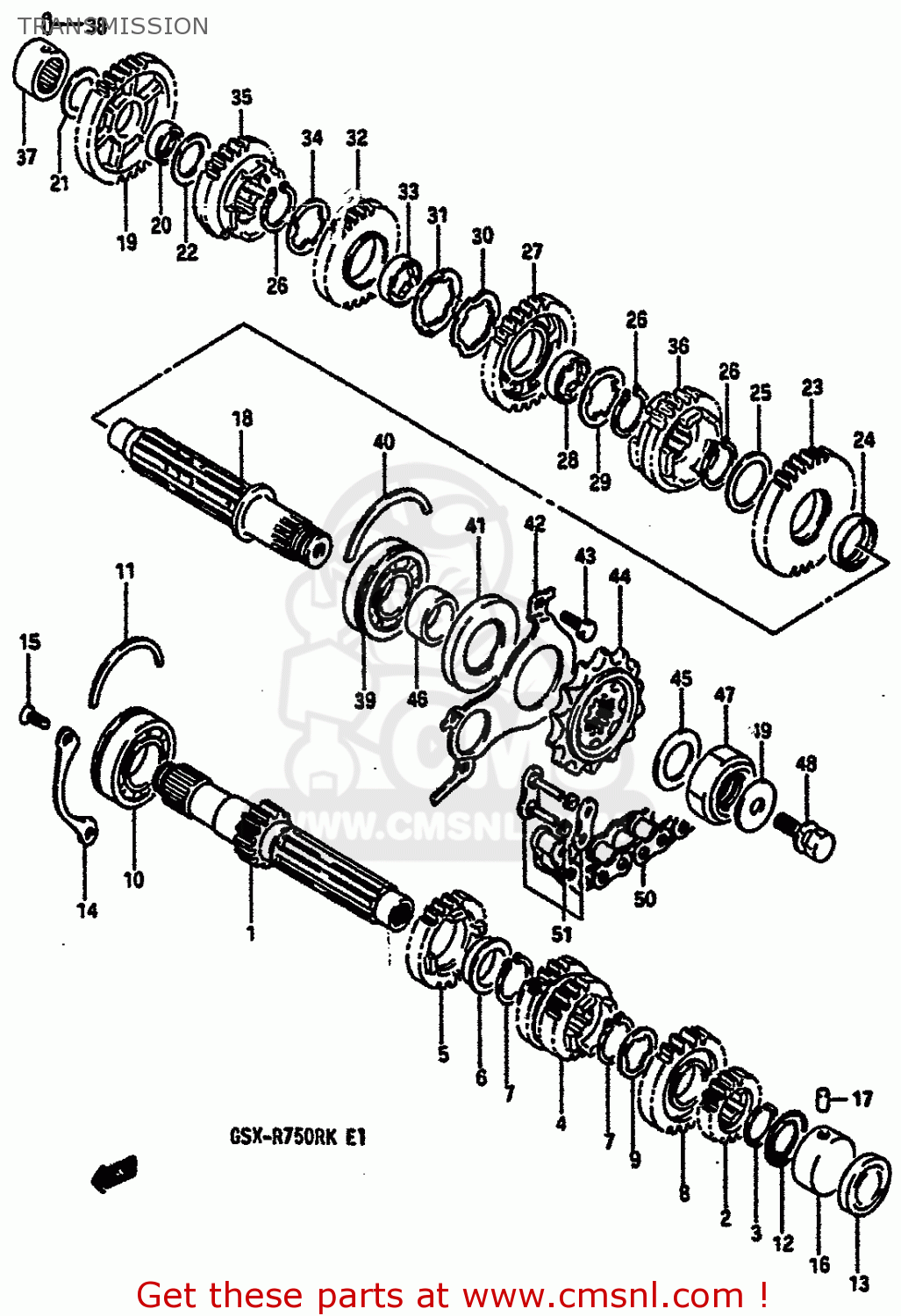

TRANSMISSION

ref

part #

description

quantity

1

2412107D01
ref: 1

COUNTERSHAFT (NT:13)

€ 255.50

2

2422107D00
ref: 2

GEAR,2ND DRIVE (NT:17)

€ 81.50

3

0938025013
ref: 3

CIRCLIP

€ 3.00

4

2423107D00
ref: 4

GEAR,3RD & 4TH DRIVE(NT:19/20)

€ 154.50

5

2425107D01
ref: 5

GEAR,5TH DRIVE

€ 181.50

6

0930125001
ref: 6

BUSHING

€ 12.50

7

0938025003
ref: 7

RING,SNAP

€ 3.00

8

2426107D00
ref: 8

GEAR,6TH DRIVE (NT:20)

€ 156.00

9

0916725012
ref: 9

WASHER,LOCK

€ 3.50

10

0926225051
ref: 10

BEARING(25X62X17)

€ 59.50

11

0939062006
ref: 11

C-RING

€ 5.00

12

0928520006
ref: 12

SEAL,OIL(20X31.2X2.7)

€ 7.00

13

2311627A30
ref: 13

CAP,COUNTER SHAFT,L

€ 10.00

14

2474127A00
ref: 14

RETAINER,CNTR SHAFT BEARING

€ 7.00

15

0212206167
ref: 15

SCREW

€ 2.00

16

0926320069
ref: 16

BEARING(20X34X17.5)

€ 39.50

17

0422107129
ref: 17

PIN

€ 1.50

18

2413107D00
ref: 18

DRIVESHAFT

€ 283.00

19

2431107D00
ref: 19

GEAR,1ST DRIVEN (NT:31)

€ 163.50

20

0930022008
ref: 20

BUSH(22X26X9)

€ 10.50

21

0821120341
ref: 21

WASHER

€ 2.00

22

0821122341
ref: 22

WASHER

€ 3.00

23

2432107D00
ref: 23

GEAR,2ND DRIVEN (NT:32)

€ 122.50

24

0930028001
ref: 24

BUSH(28X32X8)

€ 11.50

25

0821128381
ref: 25

WASHER, THRUST

€ 3.50

26

0833111289
ref: 26

CIRCLIP

€ 2.50

27

2433107D00
ref: 27

GEAR,3RD DRIVE

€ 141.50

28

2433227A00
ref: 28

BUSH

€ 13.50

29

0916728001
ref: 29

WASHER,LOCK

€ 3.00

30

0916728002
ref: 30

WASHER,LOCK

€ 3.00

31

0916928001
ref: 31

WASHER

€ 3.00

32

2434107D00
ref: 32

GEAR,4TH DRIVE

€ 152.50

33

2433227A00
ref: 33

BUSH

€ 13.50

34

0916728001
ref: 34

WASHER,LOCK

€ 3.00

35

2435107D00
ref: 35

GEAR,5TH DRIVE

€ 154.50

36

2436107D00
ref: 36

GEAR,6TH DRIVEN (NT:24)

€ 215.50

37

0926320040
ref: 37

BEARING(20X34X20)

€ 42.50

38

0422107209
ref: 38

PIN

€ 1.50

39

0926225105
ref: 39

BEARING(25X62X17)

€ 59.50

40

0939062006
ref: 40

C-RING

€ 5.00

41

0928334005
ref: 41

SEAL,OIL(34X62X6)

€ 14.50

42

2475127A01
ref: 42

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

43

0110706107
ref: 43

BOLT

€ 2.00

44

2751017C00
ref: 44

SPROCKET,ENGINE (NT:15)

€ 67.00

45

0821125402
ref: 45

WASHER,THRUST

€ 3.00

46

0918025091
ref: 46

SPACER(25X34X17.5)

€ 16.00

47

0915920004
ref: 47

NUT

€ 12.00

48

0114706168
ref: 48

BOLT

€ 2.50

49

0821206222
ref: 49

WASHER

€ 1.50

50

2760007D00104
ref: 50

CHAIN,DRIVE (50GSVX104L)RK

€ 258.00

51

2762007D00
ref: 51

JOINT

€ 8.00
