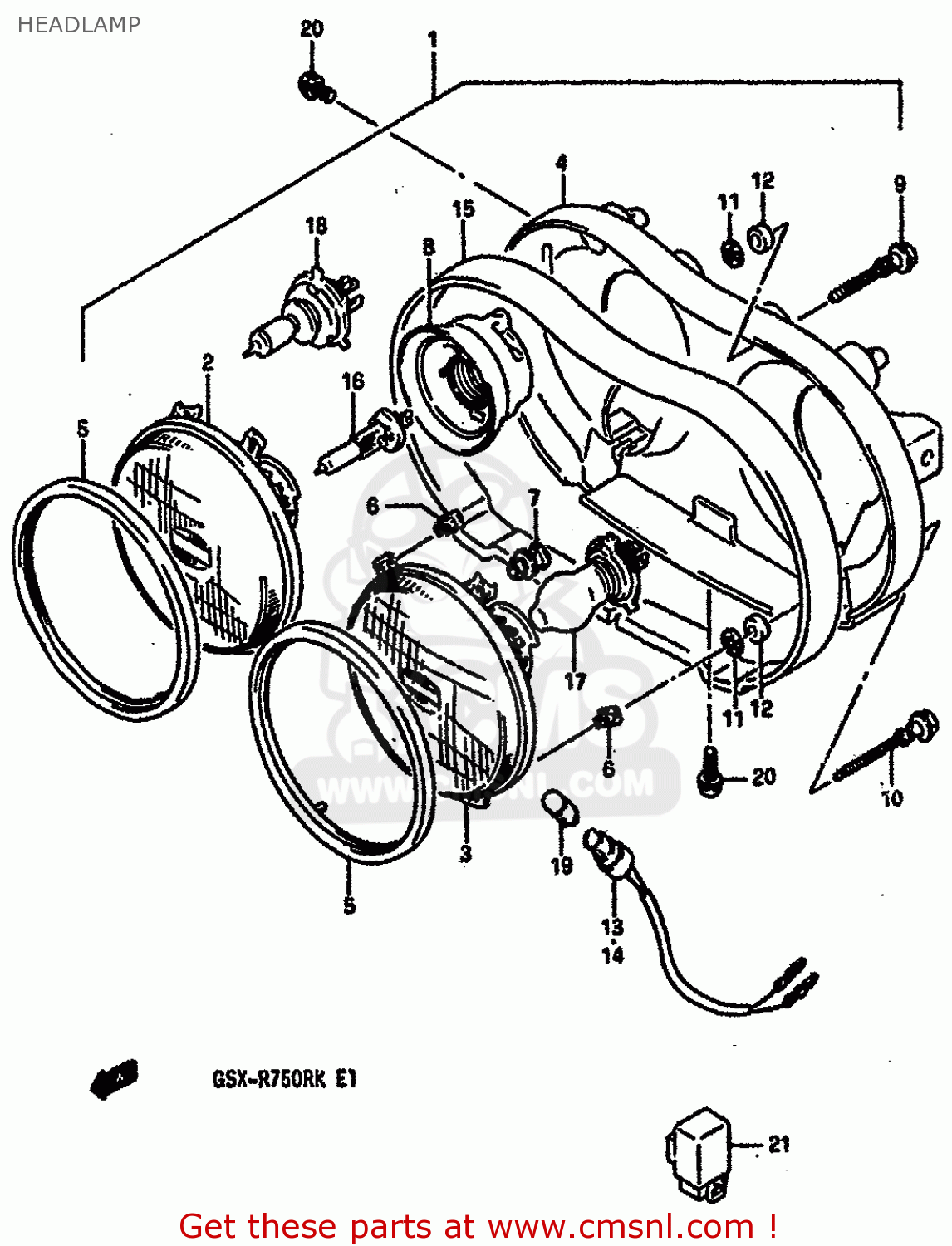

HEADLAMP

ref

part #

description

quantity

1-1

3510007D00999
ref: 1-1
E1

HEADLAMP ASSY

€ 262.50

1-2

3510007D40999
ref: 1-2
E4

HEADLAMP ASSY

€ 0.00

1-3

3510007D50999
ref: 1-3
E22

HEADLAMP ASSY

€ 0.00

2-1

3512117C00
ref: 2-1
E1

UNIT,HEADLAMP RH

€ 81.50

2-2

3512117C50
ref: 2-2
E4,E22

UNIT,HEADLAMP RH

€ 93.50

3-1

3532117C00
ref: 3-1
E1

LAMP UNIT

€ 80.50

3-2

3532117C40
ref: 3-2
E4,E22

UNIT,HEADLAMP LH

€ 77.00

4

3524007D00
ref: 4

HOUSING

€ 63.00

5

3512704A00
ref: 5

RING,RETAINING

€ 15.00

6

3515205C00
ref: 6

NUT,HEADLAMP ADJUSTER

€ 2.50

7

3516204A00
ref: 7

SCREW,SPHERICAL

€ 2.00

8-1

3517320A01
ref: 8-1
E1

COVER,SOCKET

€ 14.50

8-2

3517320A01
ref: 8-2
E4,E22

COVER,SOCKET

€ 14.50

8-3

3517306B50
ref: 8-3
E4,E22

COVER, SOCKET,LH

€ 10.00

9

3515105C00
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.50

10

3515305C00
ref: 10

SCREW,ADJUSTER

€ 4.50

11

3515732B00
ref: 11

WASHER

€ 1.50

12

3516705C00
ref: 12

BUSHING

€ 1.50

13

3611804A00
ref: 13
E4,E22

SOCKET

€ 11.50

14

3611805C00
ref: 14
E1

SOCKET & CORD

€ 9.50

15

3524217C12
ref: 15

GASKET,HEADLAMP

€ 40.00

16

0947112122
ref: 16
E4,E22,EXECUTED LOCA

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

17

0947112061
ref: 17
E4

BULB (12V, 60/55W, H4)

€ 0.00

18-1

0947112060
ref: 18-1
E1

BULB(12V60/55W,H4)

€ 8.00

18-2

0947112060
ref: 18-2
E22

BULB(12V60/55W,H4)

€ 8.00

19

0947112063
ref: 19
E4,E22

BULB(12V4W)

€ 6.00

20

0211236165
ref: 20

SCREW

€ 2.50

21-1

3864017C00
ref: 21-1
E1

RELAY ASSY,HEADLAMP

€ 37.50

21-2

3864017C00
ref: 21-2
E4,E22

RELAY ASSY,HEADLAMP

€ 37.50
