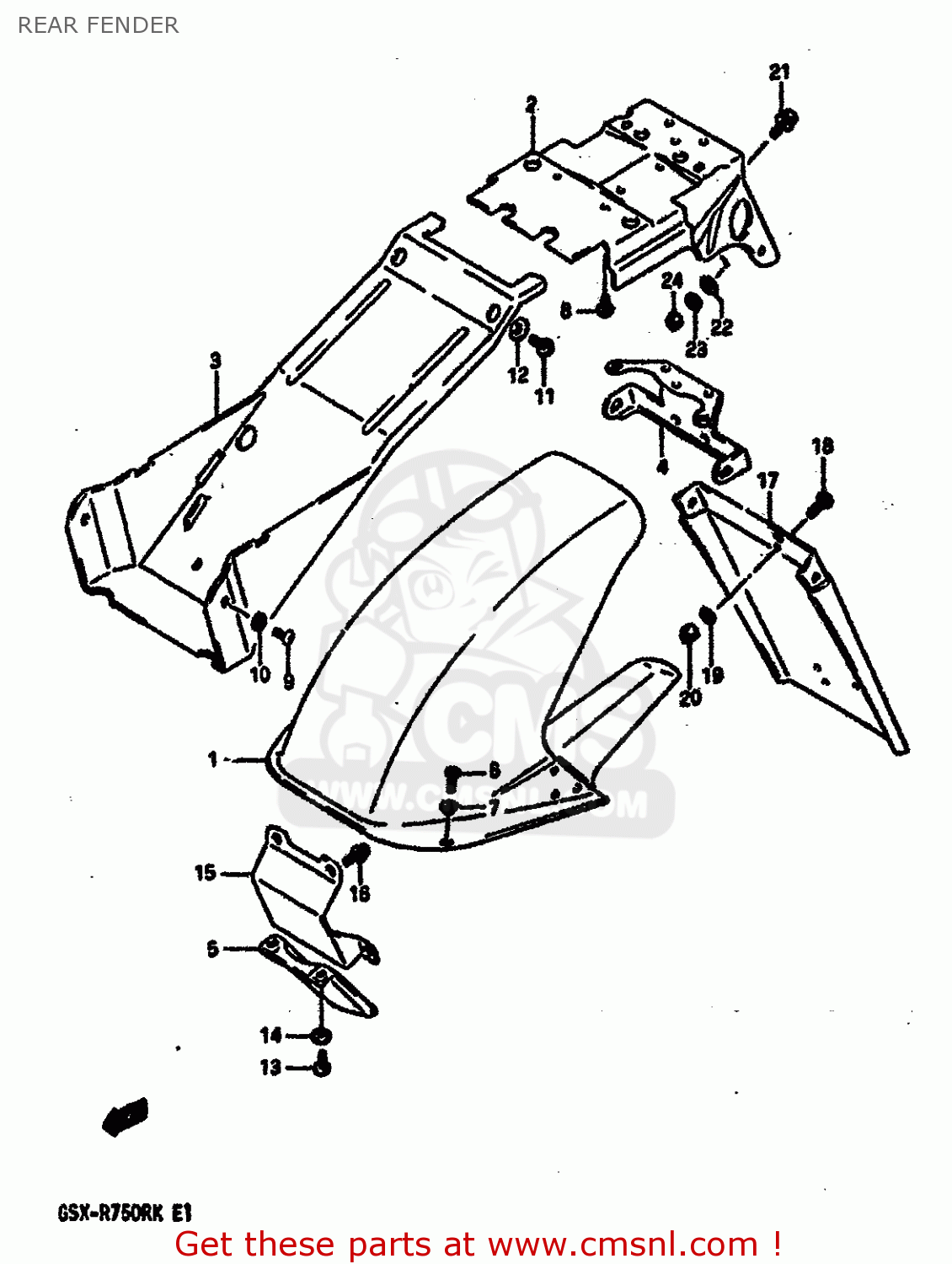

REAR FENDER

ref

part #

description

quantity

1

6311007D00
ref: 1

BODY,REAR FENDER LOWER

€ 49.00

2-1

6311207D20
ref: 2-1
E1,E2,E4

BODY,REAR FENDER

€ 56.00

2-2

6311207D30
ref: 2-2
E22

BODY,REAR FENDER

€ 56.00

3

6311307D00
ref: 3

BODY,REAR FENDER FRONT

€ 35.00

4

6324107D00
ref: 4

BRACKET,REAR FENDER

€ 35.00

5

6341142A00
ref: 5

GUARD,RR UNIT MUD

€ 3.50

6

0214206164
ref: 6

SCREW

€ 2.50

7

0916906036
ref: 7

WASHER

€ 2.50

8

0214206125
ref: 8

SCREW 6X12

€ 2.00

9

0214205124
ref: 9

SCREW, FRONT & REAR

€ 1.50

10

0916005031
ref: 10

WASHER

€ 1.50

11

0214206164
ref: 11

SCREW

€ 2.50

12

0916006074
ref: 12

WASHER (6.5X24X1.6)

€ 2.00

13

0214206167
ref: 13

SCREW

€ 2.00

14

0916906025
ref: 14

WASHER,LOCK

€ 3.00

15

6342107D01
ref: 15

MUD GUARD,CUSHION LOWER

€ 0.00

16

0913606015
ref: 16

SCREW(6X16)

€ 2.00

17-1

6331107D00
ref: 17-1
E1,E4

EXTENSION,REAR FENDER

€ 24.50

17-2

6331107D10
ref: 17-2
E2

EXTENSION,REAR FENDER

€ 24.50

17-3

6331107D20
ref: 17-3
E22

EXTENSION,REAR FENDER

€ 24.50

18

0214206164
ref: 18

SCREW

€ 2.50

19

09160060A6
ref: 19

WASHER

€ 2.00

20

0831921068
ref: 20

NUT 6MM

€ 2.00

21

0111706128
ref: 21

BOLT,LICENCE PLATE

€ 2.50

22

0916006020
ref: 22

WASHER

€ 2.00

23

0832221068
ref: 23

WASHER

€ 2.00

24

0831011067
ref: 24

NUT 6MM

€ 2.50

all assemblies
