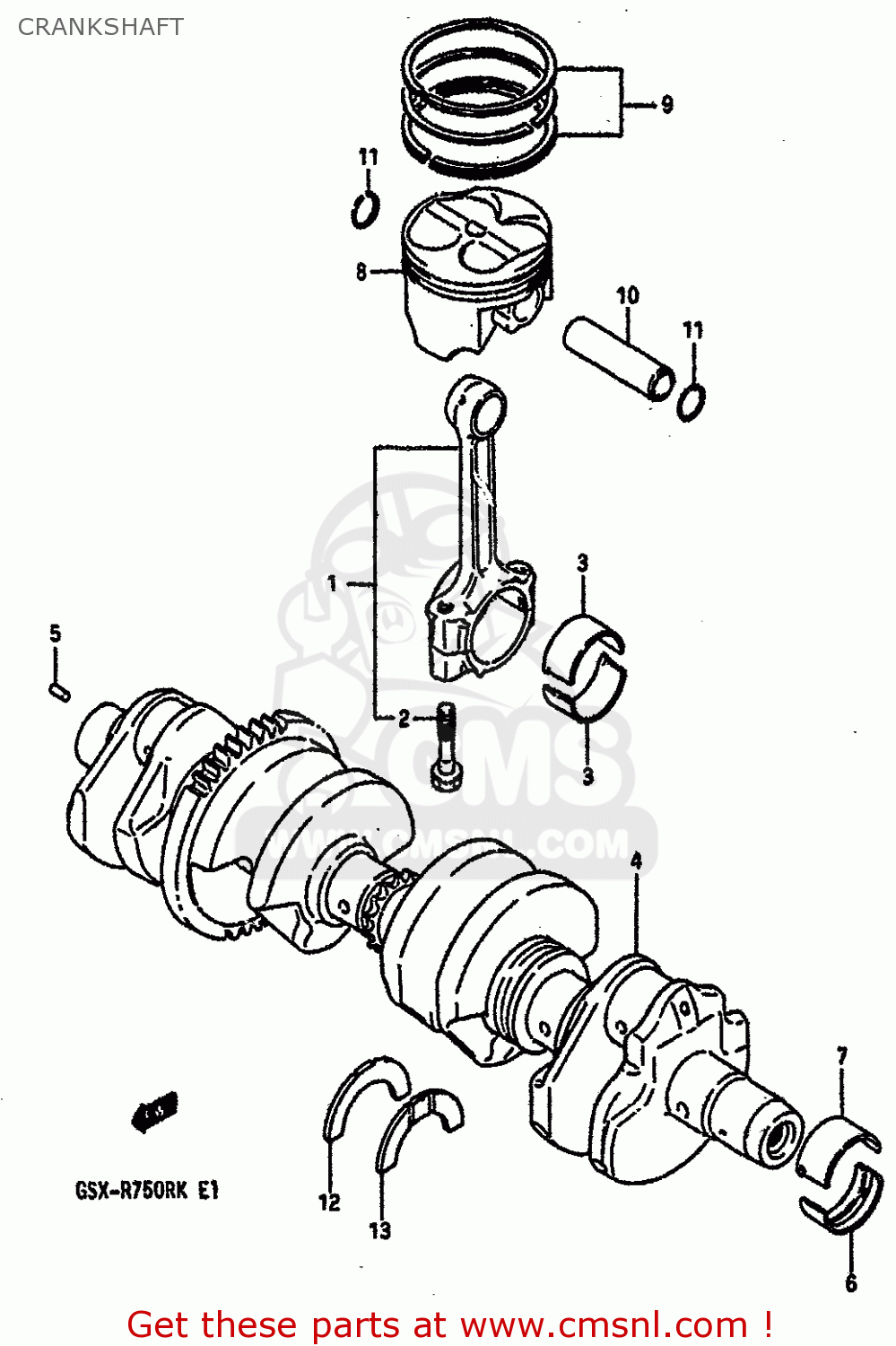

CRANKSHAFT

ref

part #

description

quantity

1

1216007D00
ref: 1

ROD ASSY,CONNECTING

€ 460.50

2

1216327A51
ref: 2

BOLT

€ 20.00

3-1

1216427A000A0
ref: 3-1

BEARING,CRANK PIN

€ 14.50

3-2

1216427A000B0
ref: 3-2

BEARING,CRANK PIN

€ 14.50

3-3

1216427A000C0
ref: 3-3

BEARING,CRANK PIN

€ 15.00

3-4

1216427A000D0
ref: 3-4

BEARING,CRANK PIN

€ 15.50

4

1222027A52
ref: 4

CRANKSHAFT

€ 1,492.50

5

0422104089
ref: 5

PIN

€ 1.50

6-1

1222927A000A0
ref: 6-1
LOWER

BEARING,CRANKSHAFT LWR

€ 12.00

6-2

1222927A000B0
ref: 6-2

BEARING,CRANKSHAFT LWR

€ 12.00

6-3

1222927A000C0
ref: 6-3

BEARING,CRANKSHAFT LWR

€ 12.00

6-4

1222927A000D0
ref: 6-4

BEARING,CRANKSHAFT LWR

€ 12.00

7-1

1222927A100A0
ref: 7-1
UPPER

BEARING,CRANKSHAFT UPR

€ 12.00

7-2

1222927A100B0
ref: 7-2

BEARING,CRANKSHAFT UPR

€ 12.00

7-3

1222927A100C0
ref: 7-3

BEARING,CRANKSHAFT UPR

€ 12.00

7-4

1222927A100D0
ref: 7-4

BEARING,CRANKSHAFT UPR

€ 11.50

8-1

1211107D030F0
ref: 8-1

PISTON

€ 97.00

8-2

1211107D03050
ref: 8-2
OPT

PISTON (OS:0.5

€ 144.50

8-3

1211107D03100
ref: 8-3
OPT

PISTON (OS:1.0)

€ 91.00

9-1

1214007D10
ref: 9-1

RING SET,PISTON

€ 103.50

9-2

1214007D10050
ref: 9-2
OPT

RING SET,PISTON(OS:0.50)

€ 65.50

9-3

1214007D10100
ref: 9-3
OPT

RING SET,PISTON(OS:1.0)

€ 61.50

10

1215107D00
ref: 10

PIN,PISTON

€ 13.50

11

0938118003
ref: 11

CIRCLIP

€ 3.00

12

1222843414
ref: 12

PLATE,CRANK THRUST

€ 9.50

13-1

1222843411
ref: 13-1

PLATE,CRANK THRUST

€ 8.50

13-2

1222843412
ref: 13-2

PLATE,CRANK THRUST

€ 8.50

13-3

1222843413
ref: 13-3

PLATE,CRANK THRUST

€ 8.00

13-4

1222843414
ref: 13-4

PLATE,CRANK THRUST

€ 9.50

13-5

1222843415
ref: 13-5

BEARING,THRUST

€ 8.50

13-6

1222843416
ref: 13-6

PLATE,CRANK THRUST

€ 9.50

all assemblies
