CYLINDER

GSXR750R 1989 (K) (E01 E02 E04 E22)

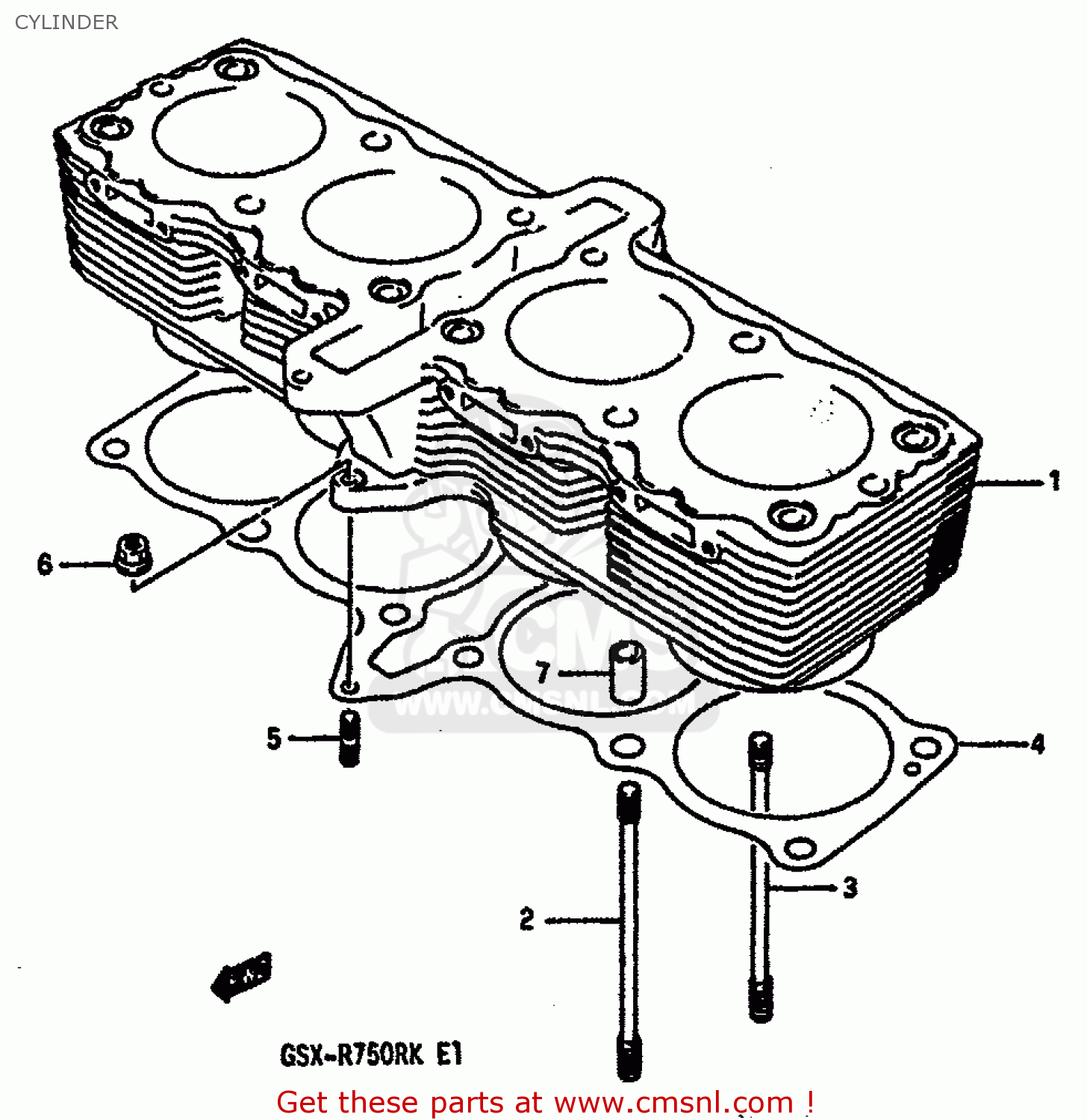

Cylinder diagram GSXR750R 1989 (K) (E01 E02 E04 E22)

CYLINDER GSXR750R 1989 (K) (E01 E02 E04 E22)

CYLINDER GSXR750R 1989 (K) (E01 E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1

1121007D00
ref: 1

CYLINDER

€ 791.00

2

0910810109
ref: 2

STUD BOLT (L:150)

€ 11.00

3

0910810073
ref: 3

BOLT,STUD

€ 9.50

4

1124127A02
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

5

0142106205
ref: 5

STUD BOLT L:20

€ 2.50

6

0831616064
ref: 6

NUT 6MM

€ 2.50

7

0920613006
ref: 7

PIN

€ 9.00
