FRONT MASTER CYLINDER

GSXR750R 1989 (K) (E01 E02 E04 E22)

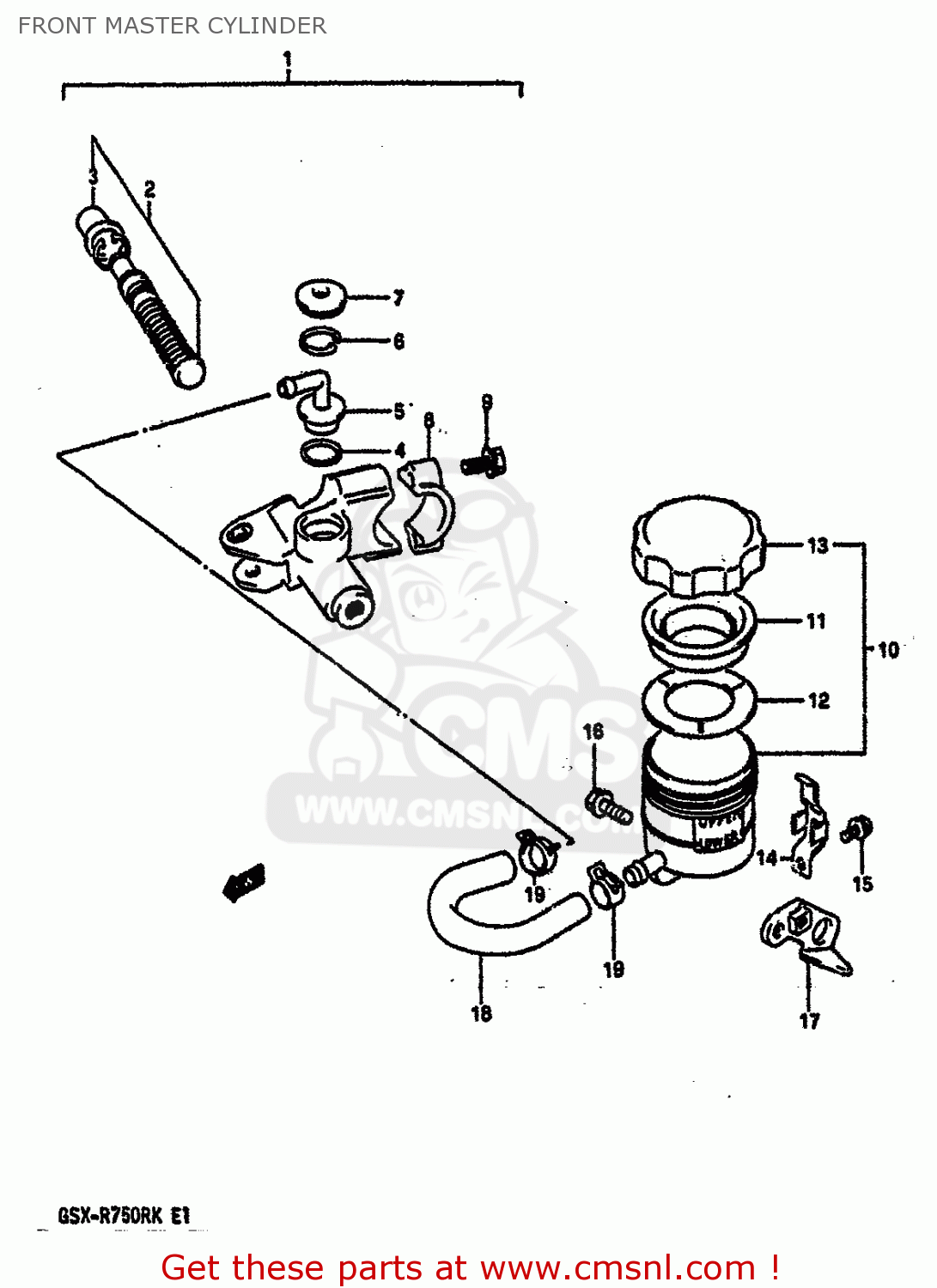

Front master cylinder diagram GSXR750R 1989 (K) (E01 E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

5960032C00
ref: 1

CYLINDER ASSEMBLY,FRONT MASTER

€ 263.00

5960045860
ref: 2

PISTON & CUP SET

€ 44.00

5966644300
ref: 3

BOOT

€ 6.00

6968634200
ref: 4

O RING

€ 3.50

5967217C00
ref: 5

CONNECTOR

€ 8.00

6967400B20
ref: 6

CIRCLIP

€ 3.00

5967317C00
ref: 7

COVER,DUST

€ 7.00

5967136500
ref: 8

HOLDER

€ 10.00

5967517C00
ref: 9

BOLT

€ 3.00

5974007D00
ref: 10

TANK ASSY,RESERVOIR

€ 67.00

5966718441
ref: 11

DIAPHRAGM

€ 8.50

5966818441
ref: 12

PLATE,DIAPHRAGM

€ 3.50

5966907D00
ref: 13

CAP

€ 16.50

5974317C00
ref: 14

PLATE,RESERVOIR TANK CAP

€ 8.00

0211274128
ref: 15

SCREW

€ 2.50

0151706167
ref: 16

BOLT 6X16

€ 1.50

5975017C00
ref: 17

BRACKET COMP,RESERVOIR

€ 6.00

5973117C00
ref: 18

HOSE,RESERVOIR TANK FR

€ 17.50

5973517C00
ref: 19

CLAMP,RESERVOIR TANK FR

€ 4.00
