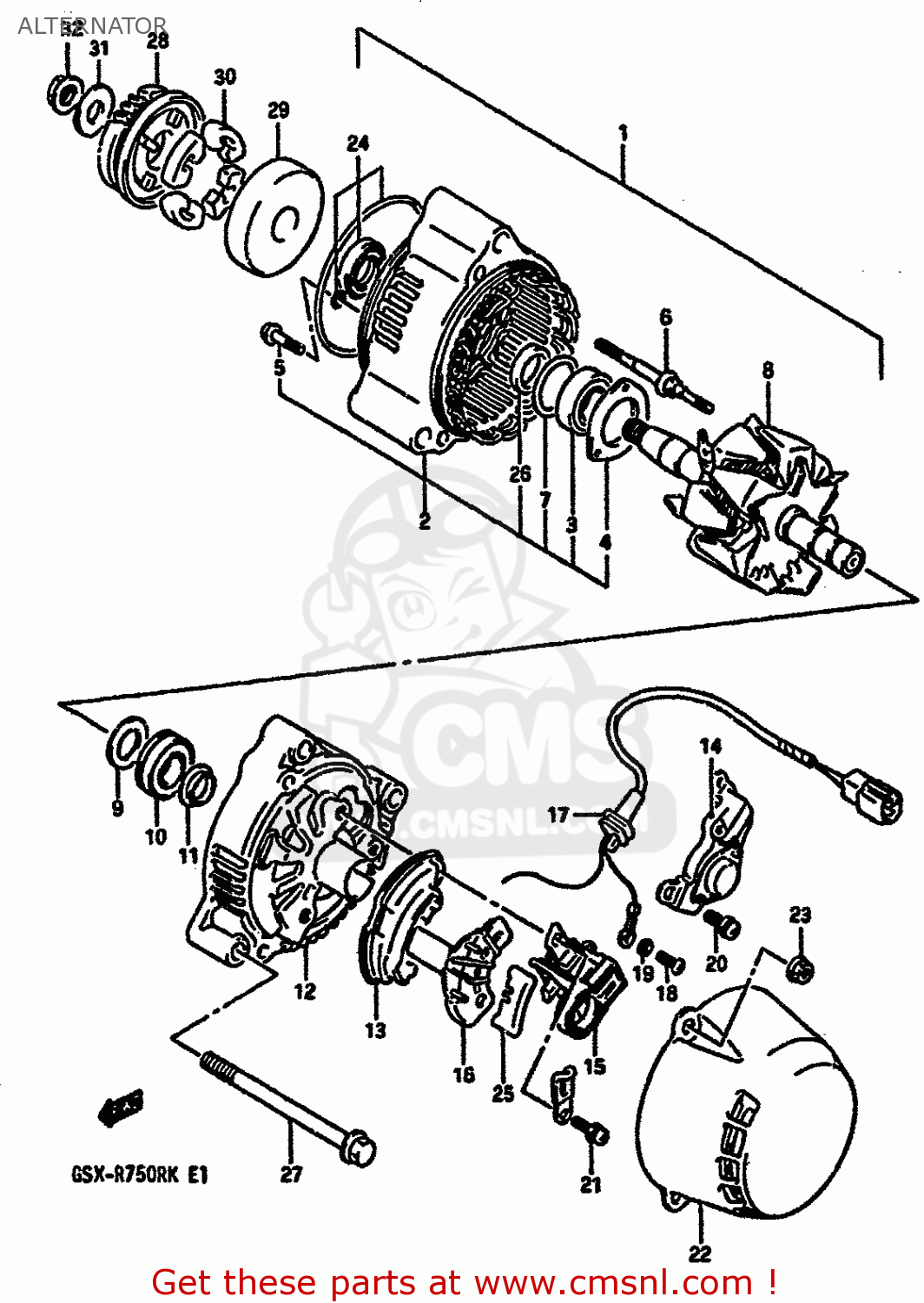

ALTERNATOR

ref

part #

description

quantity

1

3140048B03
ref: 1

GENERATOR ASSEMBLY

€ 1,063.50

2

3158048B00
ref: 2

FRAME,DRIVE END

€ 248.50

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3158548B00
ref: 4

RETAINER

€ 9.00

5

3158648B00
ref: 5

SCREW,BEARING RETAINER

€ 3.50

6

3158719C00
ref: 6

STUD BOLT

€ 9.00

7

3161348B00
ref: 7

COVER,BEARING

€ 5.50

8

3171048B03
ref: 8

ROTOR ASSEMBLY

€ 277.50

9

3161327A00
ref: 9

COVER (2)

€ 3.50

10

3161248B00
ref: 10

BEARING

€ 42.50

11

3161327A10
ref: 11

COVER(2)

€ 5.50

12

3161148B00
ref: 12

FRAME,END

€ 83.00

13

3162127A00
ref: 13

HOLDER,RECTIFIER

€ 225.50

14

3250027A00
ref: 14

REGULATOR

€ 321.00

15

3165648B00
ref: 15

HOLDER,BRUSH

€ 55.50

16

3168727A00
ref: 16

COVER,RECTIFIER

€ 4.50

17

3148048B00
ref: 17

WIRE,LEAD

€ 22.00

18

0211204086
ref: 18

SCREW

€ 2.00

19

0832121046
ref: 19

LOCK WASHER

€ 2.00

20

3168827A00
ref: 20

SCREW

€ 2.50

21

3168806B00
ref: 21

SCREW

€ 2.50

22

3161448B00
ref: 22

COVER

€ 67.50

23

0831616055
ref: 23

NUT ,5MM

€ 2.00

24

3178048B00
ref: 24

SEAL SET,OIL

€ 47.50

25

3151427A00
ref: 25

BUSH

€ 4.50

26

3177606B00
ref: 26

SPACER

€ 22.00

27

0151708905
ref: 27

BOLT (8X90)

€ 3.50

28

2273019C01
ref: 28

GEAR,GENERATOR DRIVEN

€ 112.50

29

2273327A03
ref: 29

HOUSING,GENERATOR GEAR

€ 95.00

30

2123106B00
ref: 30

DAMPER,GENERATOR DRIVEN

€ 5.50

31

0821110283
ref: 31

WASHER

€ 3.00

32

0831626106
ref: 32

NUT

€ 3.50

all assemblies
