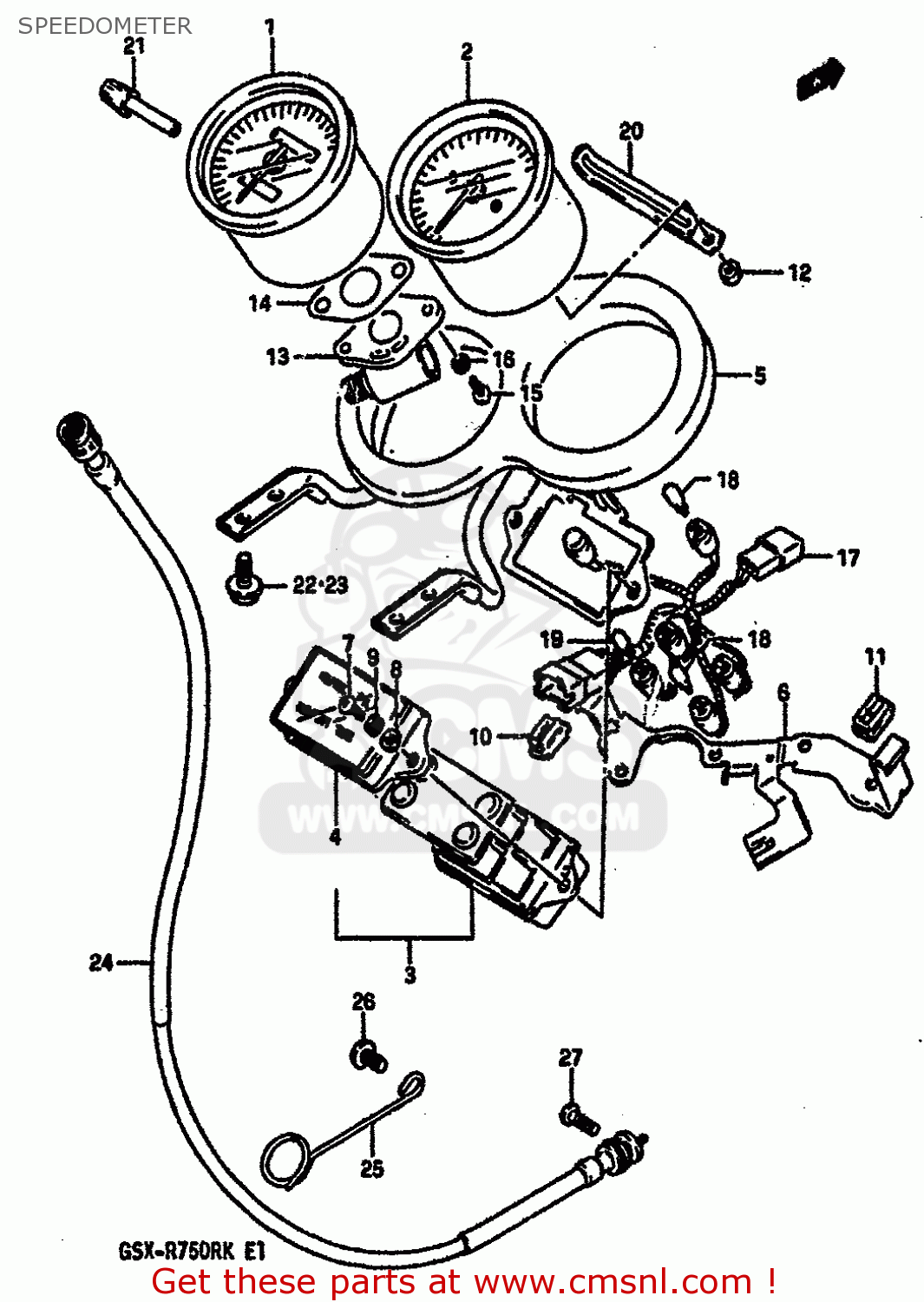

SPEEDOMETER

ref

part #

description

quantity

1-1

3411007D20
ref: 1-1

SPEEDOMETER

€ 505.50

1-2

3411007D30
ref: 1-2

SPEEDOMETER ASSEMBLY

€ 303.50

2

3421007D10
ref: 2

TACHOMETER

€ 470.50

3-1

3638017C20
ref: 3-1

BOX ASSEMBLY,PILOT LAMP

€ 64.00

3-2

3638017C30
ref: 3-2
E2

BOX ASSEMBLY,PILOT LAMP

€ 64.00

4

3638117C20
ref: 4

LENS,BOX

€ 13.00

5

3495007D10
ref: 5

PLATE,SETTING

€ 151.50

6

3411117C00
ref: 6

BRACKET

€ 63.00

7

0211204124
ref: 7

SCREW

€ 1.50

8

0832221045
ref: 8

WASHER

€ 5.00

9

0832121047
ref: 9

WASHER,LOCK 4M

€ 2.00

10

3418917C00
ref: 10

DAMPER,LEFT

€ 3.50

11

3418904A30
ref: 11

CUSHION

€ 6.00

12

0831011045
ref: 12

NUT

€ 2.00

13

3413148B10
ref: 13

GEAR BOX

€ 150.00

14

3413217C00
ref: 14

GASKET,METER GEAR BOX (NAS)

€ 5.50

15

0211204128
ref: 15

SCREW

€ 1.50

16

0832121047
ref: 16

WASHER,LOCK 4M

€ 2.00

17

3417017C20
ref: 17

SOCKET,METER

€ 123.50

18

0947112103
ref: 18

BULB(12V3W,T6.5)

€ 2.50

19

0947112108
ref: 19

BULB(12V1.7W,T6.5)

€ 2.00

20

0940404402
ref: 20

CLAMP

€ 2.50

21

3412449400
ref: 21

KNOB,TRIP

€ 4.50

22

0151706125
ref: 22

BOLT 6X12

€ 2.50

23

0151706163
ref: 23
RH,FR

BOLT

€ 2.50

24

3491017C00
ref: 24

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

25

3493945000
ref: 25

GUIDE,SPEEDOMETER CABLE,R

€ 4.50

26

0214206108
ref: 26

SCREW

€ 2.00

27

0211205164
ref: 27

SCREW

€ 2.00

all assemblies
