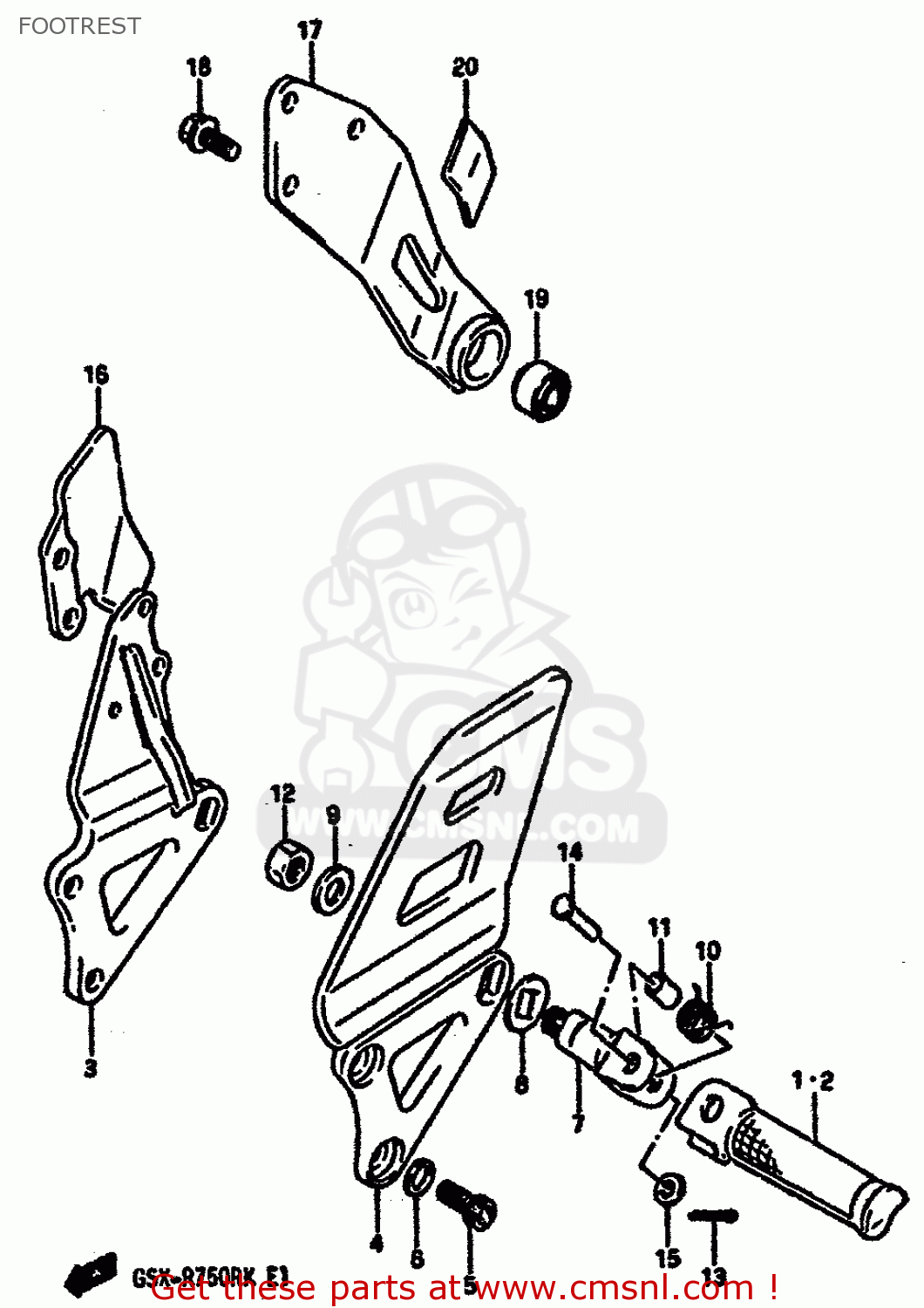

FOOTREST

ref

part #

description

quantity

1

4351117C02
ref: 1

BAR,FOOTREST,R

€ 48.50

2

4352117C02
ref: 2

BAR,FOOTREST,L

€ 48.50

3

4351007D00
ref: 3

BRACKET,FOOTREST RH

€ 109.50

4

4352007D00
ref: 4

BRACKET,FOOTREST LH

€ 109.50

5

4352917C10
ref: 5

BOLT,FOOTREST BRACKET

€ 3.50

6

0916410005
ref: 6

WASHER

€ 6.50

7

4353017C01
ref: 7

BOSS,FOOTREST

€ 43.00

8

4321317C01
ref: 8

PLATE,FOOTREST INNER

€ 4.50

9

4321417C01
ref: 9

WASHER,FR FOOTREST

€ 52.50

10

0944819020
ref: 10

SPRING

€ 3.50

11

0918008149
ref: 11

SPACER(8.1X12X22)

€ 7.00

12

0831022127
ref: 12

NUT 12MM

€ 3.00

13

0411125158
ref: 13

PIN 20X15

€ 1.50

14

0920008057
ref: 14

PIN

€ 3.00

15

0832211088
ref: 15

WASHER

€ 2.00

16

4350640C01
ref: 16

GUARD,FRONT FOOTREST RH

€ 0.00

17

4381007D00
ref: 17

BRACKET,MUFFLER

€ 114.00

18

0151708207
ref: 18

BOLT

€ 3.00

19

0931910033
ref: 19

BUSH(10.2X25X19)

€ 6.50

20

4188106C00
ref: 20

TAPE,FRAME PROTECTOR

€ 7.00

all assemblies
