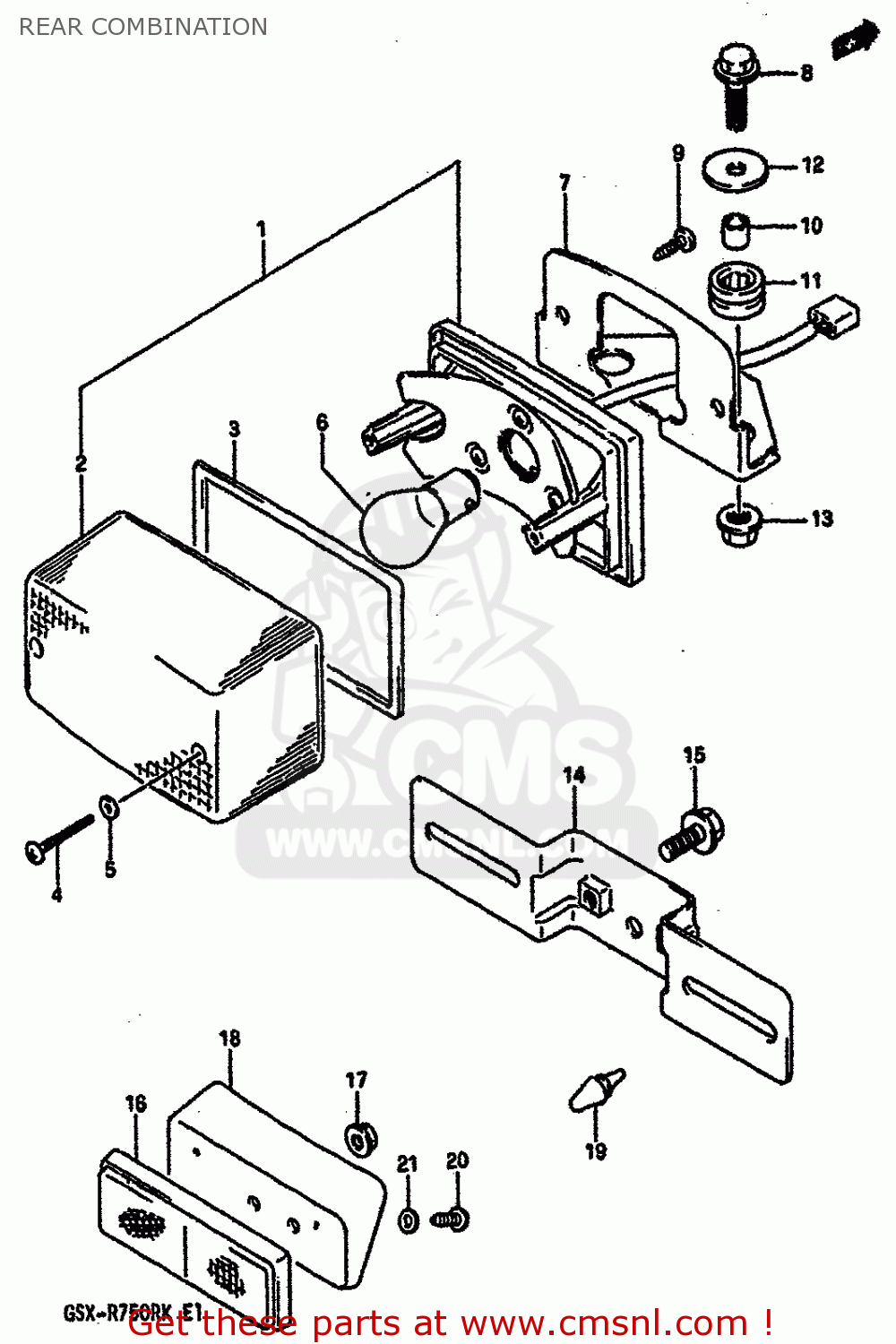

REAR COMBINATION

ref

part #

description

quantity

1

3571007D10
ref: 1

LAMP ASSY,REAR COMBINATION

€ 90.50

2

3571236A70
ref: 2

LENS

€ 19.00

3

3571313600
ref: 3

GASKET,RR COMBI LAMP LENS (NAS)

€ 3.50

4

0321104208
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112128
ref: 6

BULB(12V21/5W,BF141-49642A)

€ 6.00

7

3572607D00
ref: 7

BRACKET,REAR COMBINATION

€ 10.50

8

0151706258
ref: 8

BOLT

€ 2.50

9

0351105165
ref: 9

SCREW

€ 2.50

10

0918006138
ref: 10

SPACER(6.3X9.1X11.5)

€ 1.00

11

0932009009
ref: 11

CUSHION

€ 5.00

12

0916006002
ref: 12

WASHER (6.5X24X1.2)

€ 2.00

13

0831616066
ref: 13

NUT

€ 2.50

14

3592732C10
ref: 14

BRACKET,LICENCE PLATE

€ 9.50

15

0151706164
ref: 15

BOLT

€ 2.50

16

3597000A21
ref: 16

REFLECTOR ASSEMBLY,REAR

€ 22.00

17

0831626056
ref: 17

NUT

€ 2.00

18

3597712C00
ref: 18

SPACER,RR RR

€ 8.00

19

0932106029
ref: 19

CUSHION

€ 3.00

20

0354104125
ref: 20

SCREW

€ 1.50

21

0832221045
ref: 21

WASHER

€ 5.00

all assemblies
