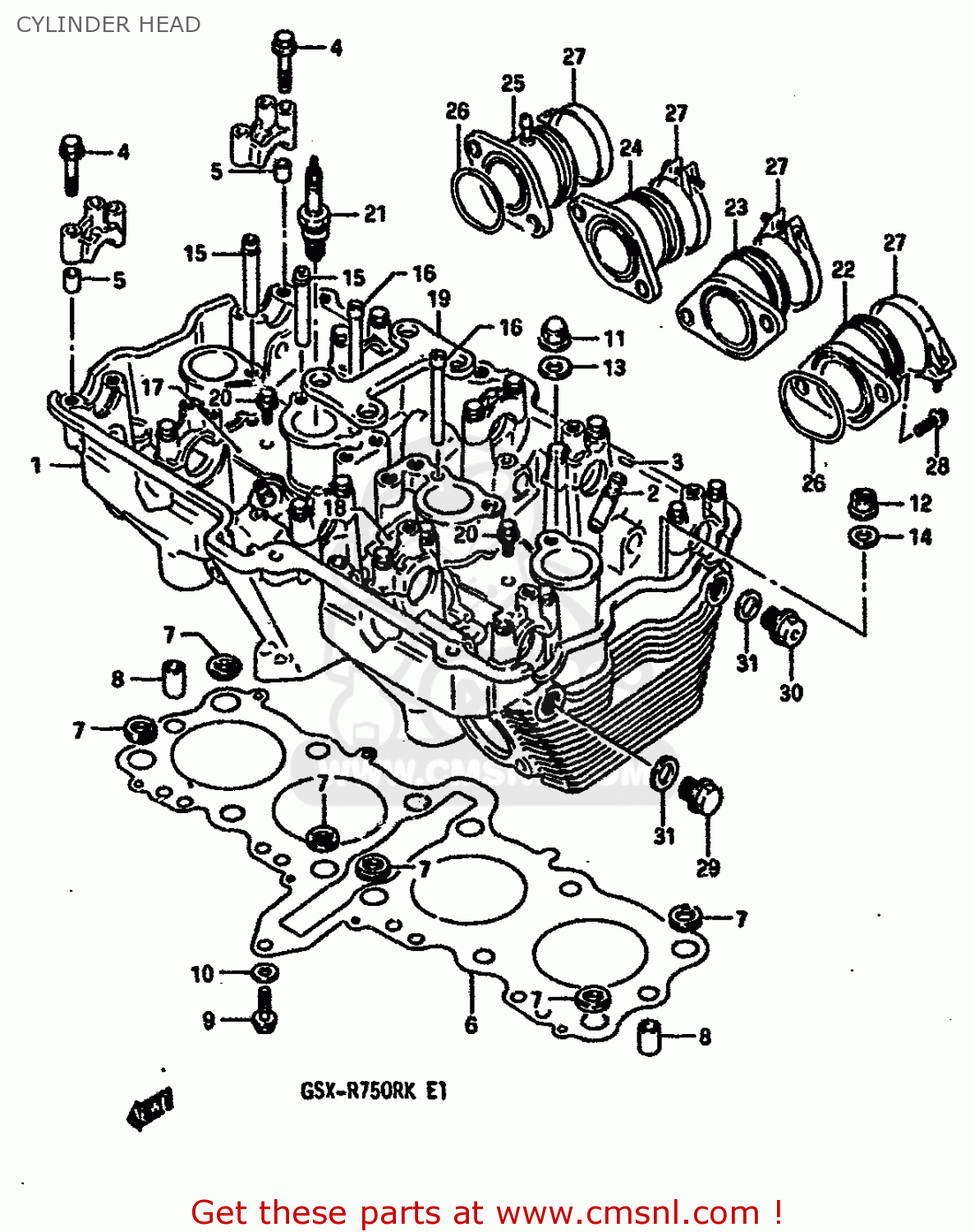

CYLINDER HEAD

ref

part #

description

quantity

1

1110007D01
ref: 1

HEAD ASSY,CYLINDER

€ 1,515.50

2

1111606B70
ref: 2

GUIDE,VALVE

€ 43.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1114107D01
ref: 6

GASKET,CYLINDER HEAD

€ 99.50

7

1114306B00
ref: 7

O RING,HEAD GASKET

€ 8.00

8

0421111169
ref: 8

PIN

€ 2.00

9

0151706305
ref: 9

BOLT 6X30

€ 2.50

10

0916006093
ref: 10

WASHER (6.2X14X2)

€ 2.00

11

0915910069
ref: 11

NUT

€ 5.00

12

0831616106
ref: 12

NUT

€ 2.00

13

0916810031
ref: 13

GASKET(10.2X20X2).3 (NAS)

€ 2.00

14

0916010060
ref: 14

WASHER (10.5X22X2.3)

€ 2.50

15

1113127A00
ref: 15

PIPE,OIL NO.1

€ 6.00

16

1113327A00
ref: 16

PIPE,OIL NO.3

€ 7.00

17

1113527A02
ref: 17

PLATE,OIL PIPE,R

€ 4.00

18

1113627A02
ref: 18

PLATE,OIL PIPE,L

€ 4.00

19

1113840C00
ref: 19

PLATE,HEAD REINF

€ 34.50

20

0151706128
ref: 20

BOLT

€ 2.50

21-1

0948200462
ref: 21-1

PLUG,SPARK(CR10EK)

€ 10.50

21-2

0948200463
ref: 21-2

PLUG,SPARK(U31ETR)

€ 10.50

21-3

0948200410
ref: 21-3
OPT

PLUG,SPARK(CR9EK)

€ 10.50

21-4

0948200411
ref: 21-4
OPT

PLUG,SPARK(U27ETR)

€ 8.50

22

1311007D02
ref: 22

PIPE,INTAKE,LH

€ 43.00

23

1312007D02
ref: 23

PIPE,INTAKE,ML

€ 39.00

24

1313007D02
ref: 24

PIPE,INTAKE,MR

€ 44.00

25

1314007D02
ref: 25

PIPE,INTAKE,RH

€ 44.00

26

0928042003
ref: 26

O RING(D:2.4,ID:41.7)

€ 8.50

27

0940256208
ref: 27

CLAMP

€ 3.50

28

0215206165
ref: 28

SCREW

€ 2.00

29

0924714034
ref: 29

PLUG

€ 3.50

30

0924714032
ref: 30

PLUG

€ 5.00

31

0916814004
ref: 31

GASKET(14X19.2X2) (NAS)

€ 2.50
