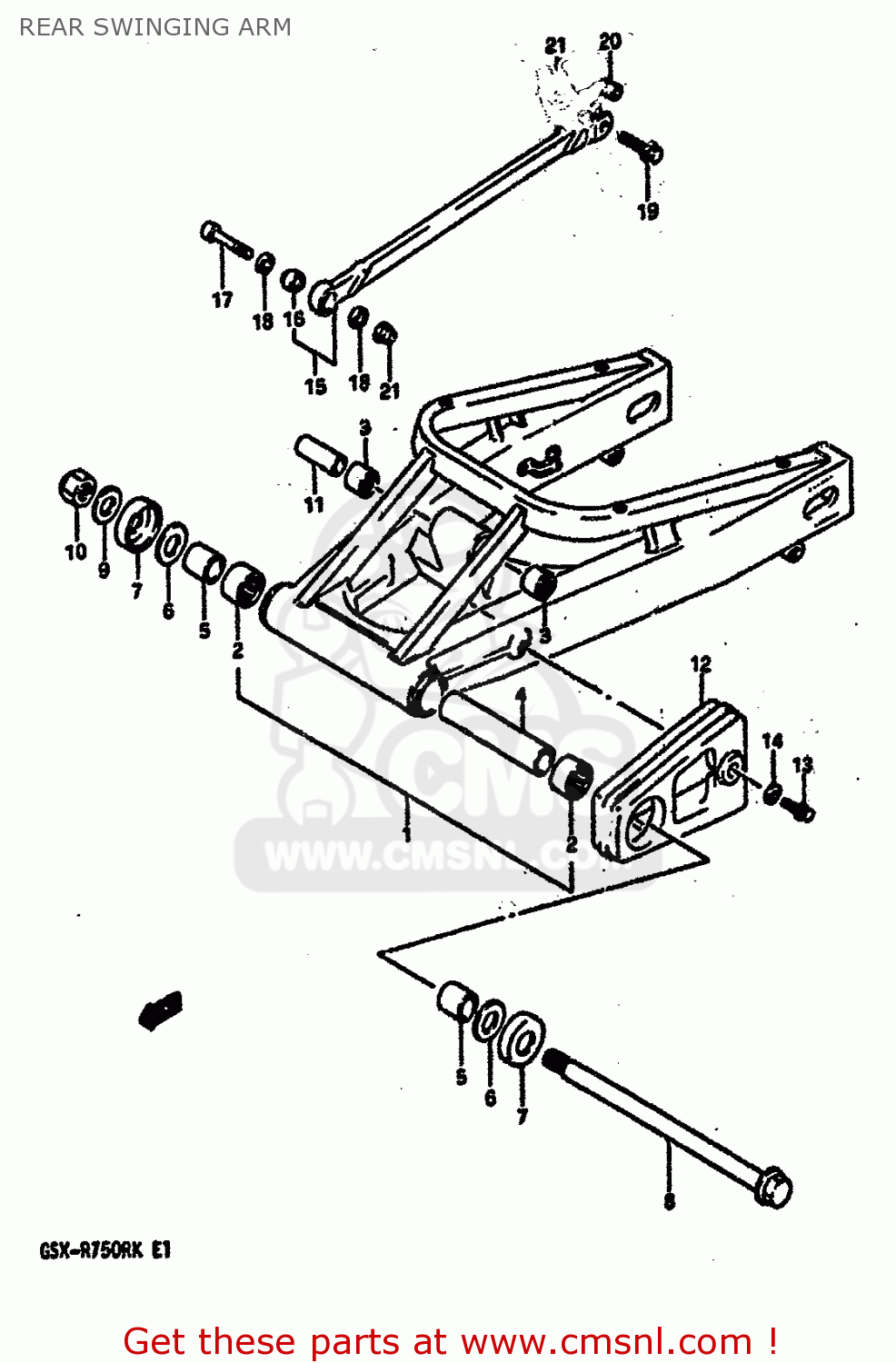

REAR SWINGING ARM

ref

part #

description

quantity

1

6100007D01
ref: 1

SWINGING ARM ASSY,REAR

€ 1,665.50

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6128217C00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 11.50

5

6125117C00
ref: 5

SPACER,RR SWGARM PIVOT BERRING

€ 36.00

6-1

0821120381
ref: 6-1

WASHER

€ 3.00

6-2

0821120382
ref: 6-2

WASHER

€ 3.00

7

6126217C00
ref: 7

DUST SEAL,RR SWGARM PIVOT

€ 8.00

8

6121117C00
ref: 8

SHAFT,REAR SWING ARM PIVOT

€ 62.00

9

0832211188
ref: 9

WASHER

€ 2.50

10

0915918007
ref: 10

NUT

€ 14.00

11

6231717C00
ref: 11

SPACER,RR CUSHION LEVER

€ 26.00

12

6127317C01
ref: 12

BUFFER,CHAIN TOUCH DEFENCE

€ 55.50

13

0151706164
ref: 13

BOLT

€ 2.50

14

0916906055
ref: 14

WASHER

€ 2.00

15

6430017830
ref: 15

TORQUE LINK SET,REAR

€ 121.50

16

6435240411
ref: 16

SPHERICAL BEARING,TORQUE

€ 69.50

17

0910608048
ref: 17

BOLT(8X48)

€ 4.50

18

6433940410
ref: 18

6433940410

19

0910308142
ref: 19

BOLT(8X35)

€ 3.00

20

6433620A00
ref: 20

SPACER,RR TORQUE LINK RR

€ 8.00

21

0831931087
ref: 21

NUT

€ 2.50
