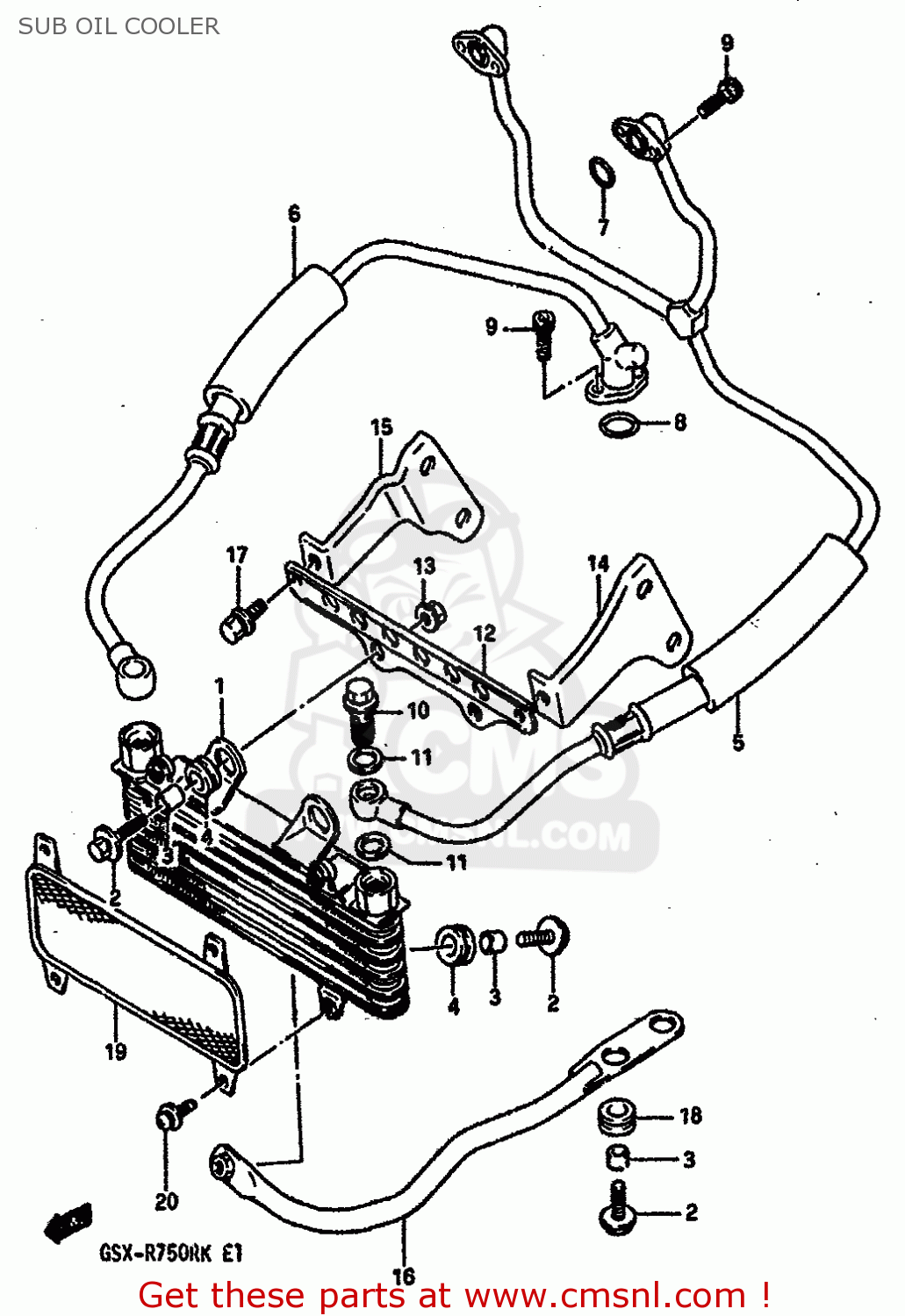

SUB OIL COOLER

ref

part #

description

quantity

1

1660007D10
ref: 1

COOLER ASSY,OIL SUB

€ 594.00

2

0911806097
ref: 2

BOLT(6X25)

€ 2.50

3

0918006030
ref: 3

SPACER (6.8X10X10)

€ 2.00

4

0932010015
ref: 4

CUSHION

€ 2.50

5

1646007D11
ref: 5

HOSE,SUB COOLER,LH

€ 207.00

6

1647007D11
ref: 6

HOSE,SUB COOLER,RH

€ 127.00

7

0928014011
ref: 7

O RING(D:2.5,ID:13.8)

€ 3.50

8

0928015007
ref: 8

O RING(D:2.4,ID:15.8)

€ 2.00

9

0711006165
ref: 9

BOLT

€ 3.00

10

0936012005
ref: 10

BOLT UNION

€ 3.50

11

0916812011
ref: 11

GASKET(12.1X19X1.5) (NAS)

€ 2.00

12

1664007D01
ref: 12

BRACKET,OIL COOLER,UPPER

€ 7.50

13

0915906017
ref: 13

NUT

€ 2.50

14

1662007D01
ref: 14

BRACKET,OIL COOLER,LH

€ 6.50

15

1663007D01
ref: 15

BRACKET,OIL COOLER,RH

€ 6.50

16

1666007D01
ref: 16

BRACKET,OIL COOLER,LOWER

€ 36.50

17

0117406125
ref: 17

BOLT

€ 2.00

18

0932010043
ref: 18

CUSHION

€ 5.50

19

1665007D01
ref: 19

BUMPER,SUB OIL COOLER

€ 36.50

20

0211275125
ref: 20

SCREW

€ 2.50
