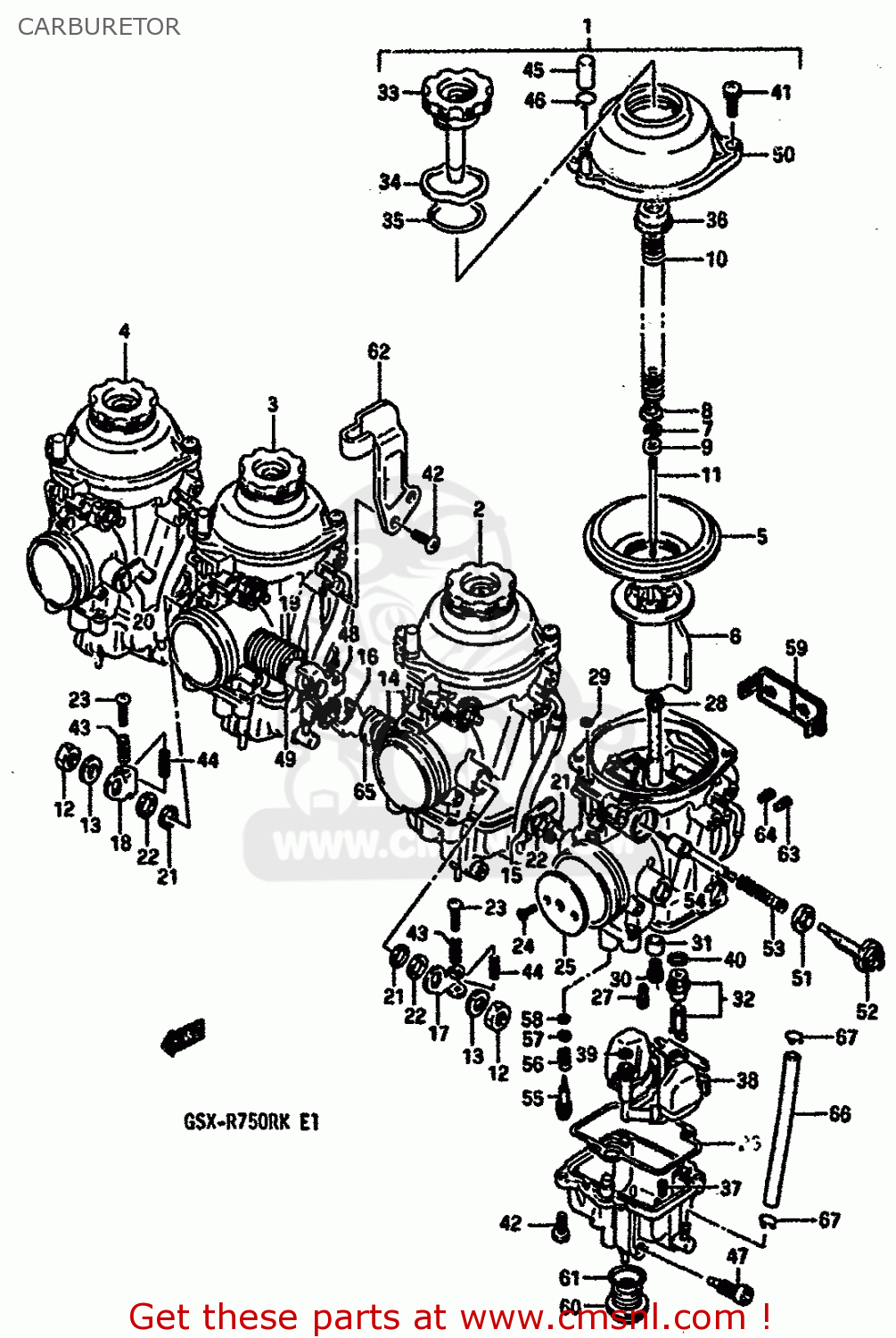

CARBURETOR

ref

part #

description

quantity

1-1

1320107D00
ref: 1-1

CARBURETOR ASSY,LH

€ 0.00

1-2

1320107D10
ref: 1-2
E4

CARBURETOR ASSY,LH

€ 0.00

1-3

1320107D30
ref: 1-3
E22

CARBURETOR ASSY,LH

€ 0.00

2-1

1320207D00
ref: 2-1

CARBURETOR ASSY,ML

€ 554.00

2-2

1320207D10
ref: 2-2
E4

CARBURETOR ASSY,ML

€ 0.00

2-3

1320207D30
ref: 2-3
E22

CARBURETOR ASSY,ML

€ 0.00

3-1

1320307D00
ref: 3-1

CARBURETOR ASSY,MR

€ 0.00

3-2

1320307D10
ref: 3-2
E4

CARBURETOR ASSY,MR

€ 0.00

3-3

1320307D30
ref: 3-3
E22

CARBURETOR ASSY,MR

€ 0.00

4-1

1320407D00
ref: 4-1

CARBURETOR ASSY,RH

€ 0.00

4-2

1320407D10
ref: 4-2
E4

CARBURETOR ASSY,RH

€ 0.00

4-3

1320407D30
ref: 4-3
E22

CARBURETOR ASSY,RH

€ 0.00

5

1350707D00
ref: 5

DIAPHRAGM

€ 24.50

6-1

1350107D00
ref: 6-1

VALVE,PISTON

€ 61.50

6-2

1350107D10
ref: 6-2
E4,E22

VALVE,PISTON

€ 61.50

7

1339431210
ref: 7

CLIP,NEEDLE

€ 3.50

8

1338207D00
ref: 8

RING

€ 0.00

9

1338707D00
ref: 9

RING

€ 4.50

10

1341707D00
ref: 10

SPRING

€ 6.50

11

1338307D10
ref: 11

NEEDLE,JET (6ZEZ3-3)

€ 13.50

12

0831021086
ref: 12
ML,MR

NUT

€ 1.50

13

0832131086
ref: 13
ML,MR

WASHER,LOCK,8.

€ 2.50

14

1357307D00
ref: 14
ML

SPRING

€ 6.00

15

1355007D00
ref: 15
LH

SHAFT ASSY

€ 30.00

16

1355007D10
ref: 16
ML

SHAFT ASSY

€ 30.00

17

1355317C00
ref: 17
ML

LEVER

€ 7.00

18

1355344B00
ref: 18
MR

LEVER,THROTTLE

€ 7.00

19

1357307D10
ref: 19
MR

SPRING

€ 6.00

20

1355007D30
ref: 20
RH

SHAFT ASSY

€ 0.00

21

1355644B00
ref: 21
LH,RH:1,ML:MR:2

SEAL

€ 3.50

22

1355747070
ref: 22

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

23

1326744B00
ref: 23
ML:2,MR:1

SCREW

€ 3.50

24

1360407D00
ref: 24

SCREW

€ 3.50

25

1355107D00
ref: 25

VALVE, THROTTLE (120)

€ 21.00

26

1325844B00
ref: 26

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

27

0949235010
ref: 27

JET,PILOT(37.5)

€ 10.50

28

0949400662
ref: 28

JET,NEEDLE (P-0)

€ 36.00

29

1327802340
ref: 29

O RING

€ 1.50

30-1

0949123011
ref: 30-1

JET,MAIN(115)

€ 10.50

30-2

0949122016
ref: 30-2
E4,E22

JET,MAIN(110)

€ 7.00

31

1333107D00
ref: 31

RING

€ 4.50

32

1337007D00
ref: 32

VALVE ASSEMBLY,NEEDLE

€ 69.50

33

1362507D00
ref: 33

CAP,TOP

€ 17.50

34

1333207D00
ref: 34

LOCK WASHER

€ 9.00

35

1329530A00
ref: 35

O RING

€ 1.50

36

1348507D00
ref: 36

RING

€ 0.00

37-1

0949200001
ref: 37-1

PLUG

€ 10.50

37-2

0949262003
ref: 37-2
E4

JET,POWER(62.5)

€ 0.00

37-3

0949260014
ref: 37-3
E22 LH,RH

JET,POWER (60)

€ 0.00

37-4

0949200001
ref: 37-4
E22 ML,MR

PLUG

€ 10.50

38

1324007D00
ref: 38

FLOAT ASSY

€ 52.50

39

1337446710
ref: 39

O RING

€ 4.50

40

1337444080
ref: 40

O-RING,NEEDLE VALVE

€ 6.00

41

1360234390
ref: 41

SCREW

€ 2.50

42

0211205128
ref: 42
LH,ML,RH:2,MR:4

SCREW

€ 2.50

43

1327144B00
ref: 43
ML:2,MR:1

SPRING

€ 4.00

44

1326817C10
ref: 44
ML:2,MR:1

SPRING

€ 7.00

45

1350817C00
ref: 45

CAP

€ 4.50

46

1367133600
ref: 46

CLIP

€ 4.00

47

1324738B00
ref: 47

PLUG

€ 5.50

48

1355007D20
ref: 48
MR

SHAFT ASSY

€ 30.00

49

1355705A20
ref: 49
MR

RING

€ 3.00

50

1350207D00
ref: 50

COVER,DIAPHRAGM

€ 62.00

51

1341817C00
ref: 51

CAP,STARTER

€ 5.00

52

1341817C10
ref: 52

HOLDER,GUIDE

€ 14.00

53

1341709110
ref: 53

SPRING

€ 6.00

54

1341101D00
ref: 54

PLUNGER ASSY

€ 28.50

55-1

1327947070
ref: 55-1

SCREW,PILOT

€ 11.50

55-2

1327947070
ref: 55-2
E22

SCREW,PILOT

€ 11.50

56

1326847070
ref: 56

SPRING

€ 5.00

57

1329129900
ref: 57

WASHER

€ 2.00

58

1329529900
ref: 58

O RING,PILOT AIR SCREW

€ 4.00

59

1323607D00
ref: 59

FILTER

€ 0.00

60

1324732210
ref: 60

SCREW,GUIDE

€ 13.00

61

1324941310
ref: 61

O RING,DRAIN PLUG

€ 5.00

62

1356507D00
ref: 62
MR

BRACKET

€ 0.00

63

0949300001
ref: 63

JET,MAIN AIR (0)

€ 8.00

64

0949320007
ref: 64

JET,AIR(1.0)

€ 10.00

65

1355707D00
ref: 65
ML

RING

€ 5.50

66

1368381400
ref: 66

HOSE

€ 13.50

67

1367112C00
ref: 67

CLIP

€ 2.50

all assemblies
