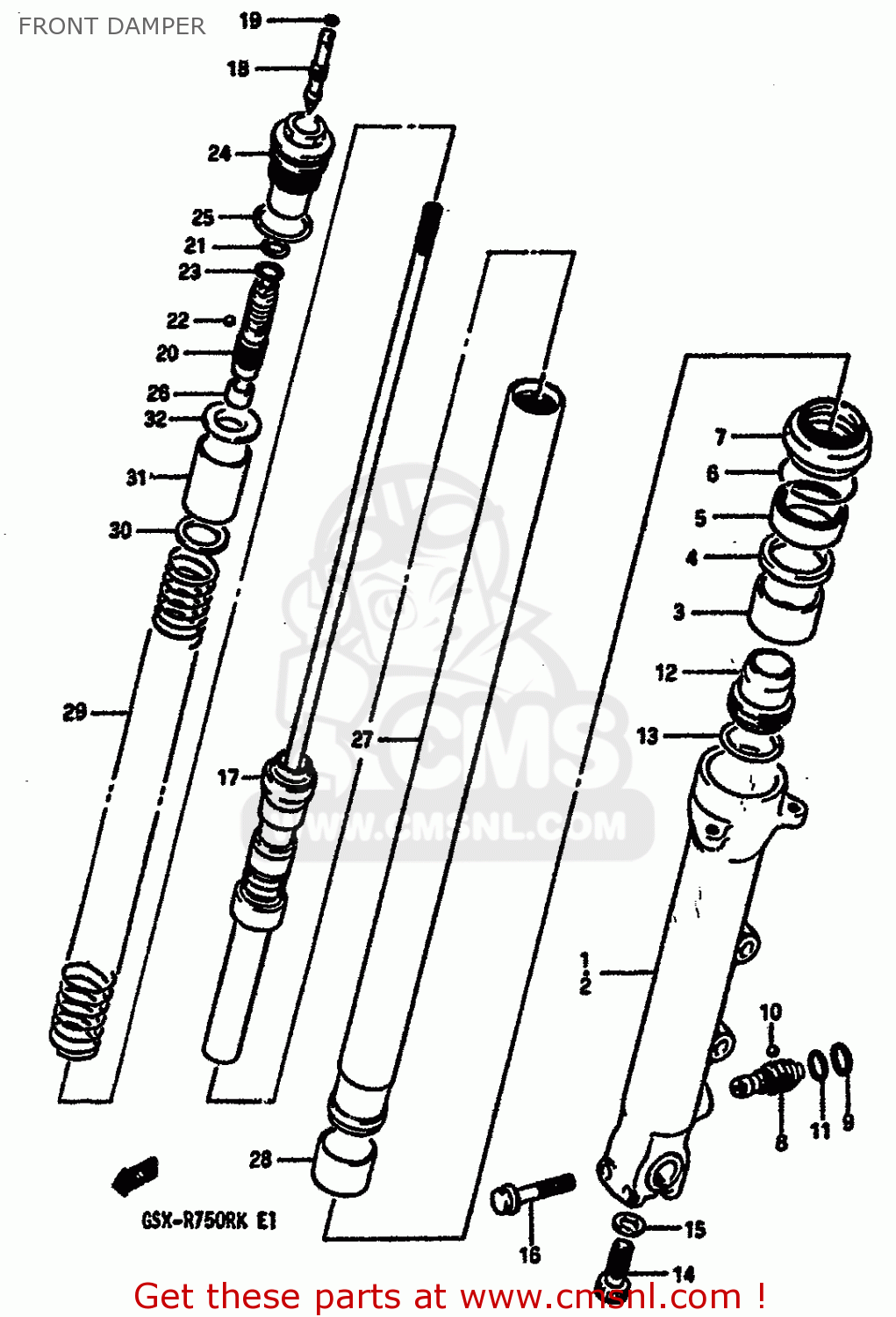

FRONT DAMPER

ref

part #

description

quantity

0

5110307D00
ref: 0

DAMPER ASSY,RH

€ 1,183.00

0

5110407D00
ref: 0

DAMPER ASSY,LH

€ 1,183.00

1

5113007D00
ref: 1

TUBE,OUTER RH

€ 358.50

2

5114007D00
ref: 2

TUBE,OUTER LH

€ 358.50

3

5115207D00
ref: 3

BUSH,GUIDE

€ 24.50

4

5116817C00
ref: 4

SPACER,SEAL

€ 5.00

5

5115317C00
ref: 5

OIL SEAL,FRONT FORK

€ 20.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5157117C00
ref: 7

SEAL DUST

€ 23.00

8

5183007D00
ref: 8

PIECE,ADJUSTER

€ 71.00

9

5183417C00
ref: 9

O RING

€ 3.50

10

5183517C00
ref: 10

BALL

€ 3.00

11

5183617C00
ref: 11

EXPANDER

€ 3.50

12

5119517C00
ref: 12

PIECE,OIL LOCK

€ 33.00

13

5111717C10
ref: 13

O RING

€ 4.50

14

5114717C00
ref: 14

BOLT

€ 21.00

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

5116617C00
ref: 16

BOLT

€ 3.50

17

5211007D00
ref: 17

DAMPER

€ 423.50

18

5182117C00
ref: 18

PIECE,ADJUSTER UPR

€ 25.50

19

5182417C00
ref: 19

O RING

€ 2.00

20

5182817C00
ref: 20

ADJUSTER,SPRING

€ 50.00

21

5183417C00
ref: 21

O RING

€ 3.50

22

5183517C00
ref: 22

BALL

€ 3.00

23

5183617C00
ref: 23

EXPANDER

€ 3.50

24

5118917C10
ref: 24

BOLT,FORK

€ 49.50

25

5111717C00
ref: 25

O RING

€ 3.50

26

5182717C00
ref: 26

NUT

€ 10.50

27

5111007D00
ref: 27

TUBE,INNER

€ 284.00

28

5112117C00
ref: 28

BUSH,SLIDE

€ 20.50

29

5117107D00
ref: 29

SPRING

€ 80.00

30

5118617C00
ref: 30

SEAT,SPRING LWR

€ 4.50

31

5117607D00
ref: 31

COLLAR,SPRING

€ 9.50

32

5117217C00
ref: 32

SEAT,SPRING UPR

€ 11.50

all assemblies
