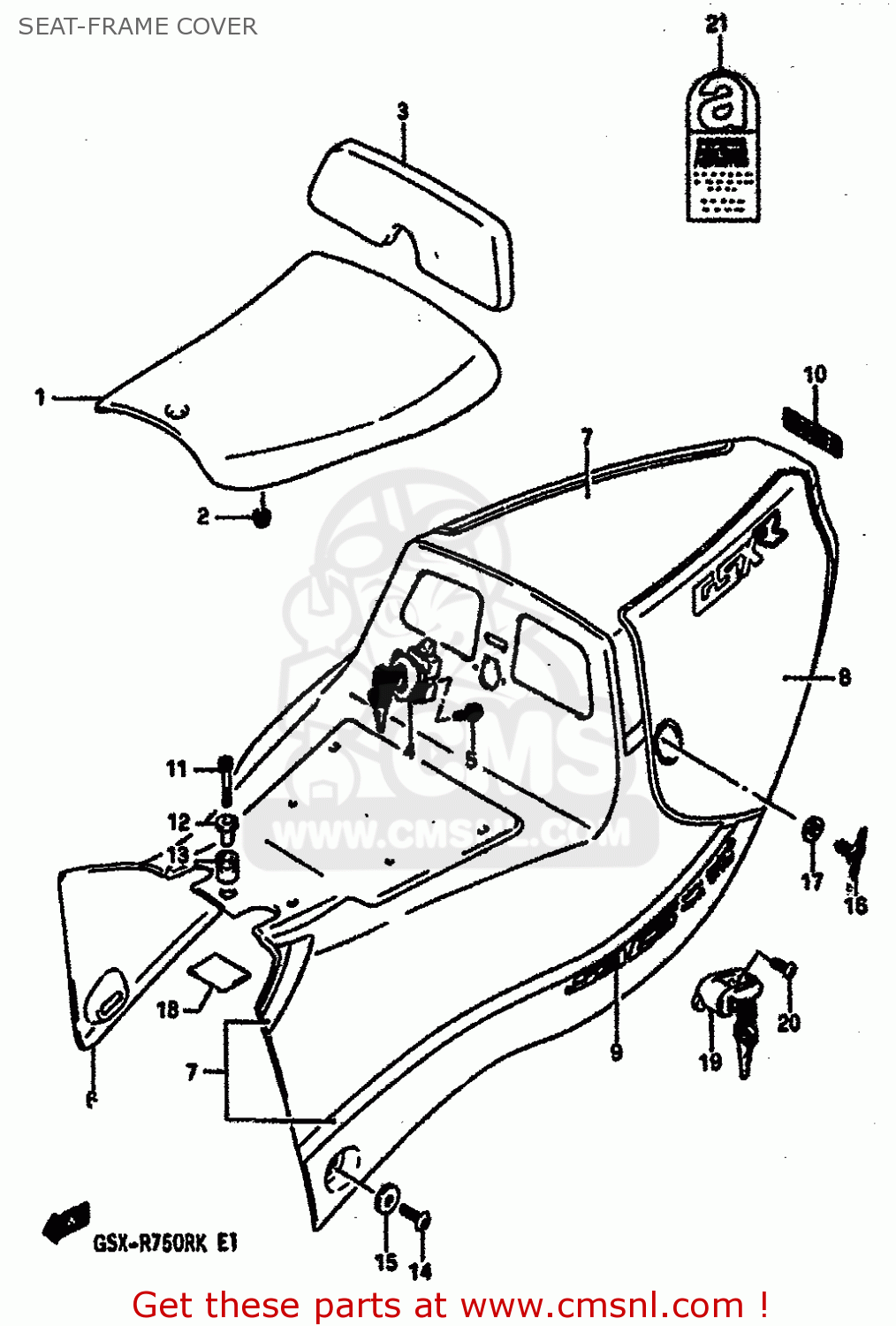

SEAT-FRAME COVER

ref

part #

description

quantity

1

4511007D0050R
ref: 1

SEAT (BLACK)

€ 0.00

2

0831626046
ref: 2

NUT

€ 2.50

3

4622007D0050R
ref: 3

BACKREST,SEAT (BLACK)

€ 0.00

4

9570007D10KEY
ref: 4

LOCK SET,BACKREST

€ 83.50

5

0211233088
ref: 5

SCREW

€ 2.00

6

4711007D013UM
ref: 6

COVER ASSY,FRAME

€ 1,296.50

7

6813007D013JK
ref: 7

TAPE SET,REAR SIDE

€ 33.50

8-1

6813507D013RZ
ref: 8-1

TAPE,FRONT RH

€ 54.50

8-2

6814507D013RZ
ref: 8-2

TAPE,FRONT LH

€ 49.00

9

6813107D003KK
ref: 9

EMBLEM,FRAME COVER

€ 12.00

10

6816516B000JW
ref: 10

EMBLEM,SUZUKI

€ 6.00

11

0910606065
ref: 11

BOLT

€ 3.50

12

4521912C00
ref: 12

COLLAR,FR

€ 5.00

13

0932009038
ref: 13

CUSHION

€ 3.50

14

0913906030
ref: 14

SCREW(6X16)

€ 3.50

15

0916006002
ref: 15

WASHER (6.5X24X1.2)

€ 2.00

16

0913908007
ref: 16

SCREW(8X16)

€ 4.50

17

0916008010
ref: 17

WASHER (8.2X20X1.6)

€ 1.50

18

4726148B00
ref: 18

PROTECTOR,FRAME COVER FR

€ 5.50

19

9570003810
ref: 19

LOCK SET,HELMET

€ 59.50

20

0211205128
ref: 20

SCREW

€ 2.50

21

1196782000
ref: 21
E2

LABEL,ASBESTOS WARNING

€ 2.00
