CRANKCASE
GSXR750R 1989 (K) (E01 E02 E04 E22)

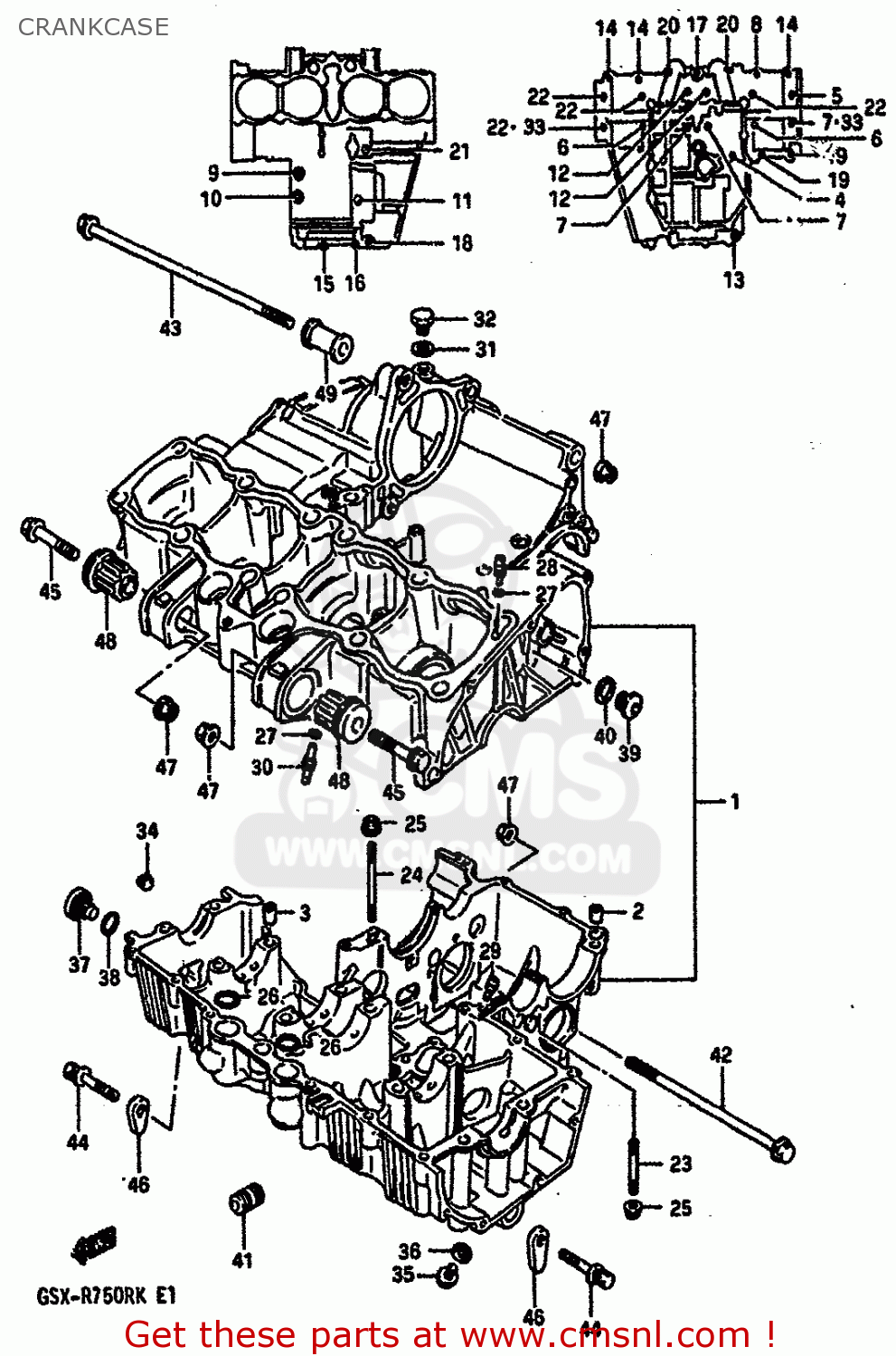

Crankcase diagram GSXR750R 1989 (K) (E01 E02 E04 E22)
CRANKCASE GSXR750R 1989 (K) (E01 E02 E04 E22)
×
prices are in EUR
ref
part #
description
quantity
1
1130207810
ref: 1
CRANKCASE SET
€ 1,600.00
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0910306067
ref: 4
BOLT(6X105)
€ 3.50
5
0910308261
ref: 5
BOLT
€ 4.00
6
0910308182
ref: 6
BOLT(8X125)
€ 4.50
7
0910308264
ref: 7
BOLT 8X115
€ 19.50
8
0151706354
ref: 8
BOLT 6X35
€ 2.50
9
0711006405
ref: 9
BOLT
€ 3.50
10
0711006505
ref: 10
BOLT
€ 3.00
11
0711006655
ref: 11
BOLT
€ 4.00
12
0711008655
ref: 12
BOLT
€ 3.50
13
0151708605
ref: 13
BOLT 8X60
€ 3.50
14
0151706354
ref: 14
BOLT 6X35
€ 2.50
15
0151706404
ref: 15
BOLT
€ 2.00
16
0151706408
ref: 16
BOLT
€ 2.50
17
0151706505
ref: 17
BOLT 6X50
€ 2.00
18
0151706605
ref: 18
BOLT ,6X60
€ 2.50
19
0151706557
ref: 19
BOLT
€ 2.50
20
0151706705
ref: 20
BOLT
€ 2.50
21
0151706805
ref: 21
BOLT
€ 2.50
22
0910308260
ref: 22
BOLT
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25
0915906017
ref: 25
NUT
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
€ 2.00
28
0949314002
ref: 28
JET,AIR
€ 8.00
29
0949324010
ref: 29
JET
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
€ 3.00
34
0924605001
ref: 34
PLUG
€ 3.50
35
0151706105
ref: 35
BOLT
€ 2.50
36
0916806023
ref: 36
GASKET(5.8X13X1.2) (NAS)
€ 2.00
37
0924816003
ref: 37
PLUG
€ 16.50
38
0928017002
ref: 38
O RING(D:2.4,ID:16.8)
€ 3.50
39
0924814004
ref: 39
PLUG
€ 5.00
40
0916814004
ref: 40
GASKET(14X19.2X2) (NAS)
€ 2.50
41
1659106B00
ref: 41
UNION,OIL STAND
€ 6.00
42
0910310139
ref: 42
BOLT 10X150
€ 8.50
43
0910310151
ref: 43
BOLT(10X175)
€ 14.50
44
0198710558
ref: 44
BOLT
€ 3.00
45
0151710558
ref: 45
BOLT 10X55
€ 3.00
46
0915910020
ref: 46
NUT
€ 7.50
47
0915910058
ref: 47
NUT
€ 4.00
48
1168127A00
ref: 48
BUSH,ENGINE MOUNTING
€ 27.00
49
1161117C00
ref: 49
SPACER,ENGINE MOUNT
€ 10.00
