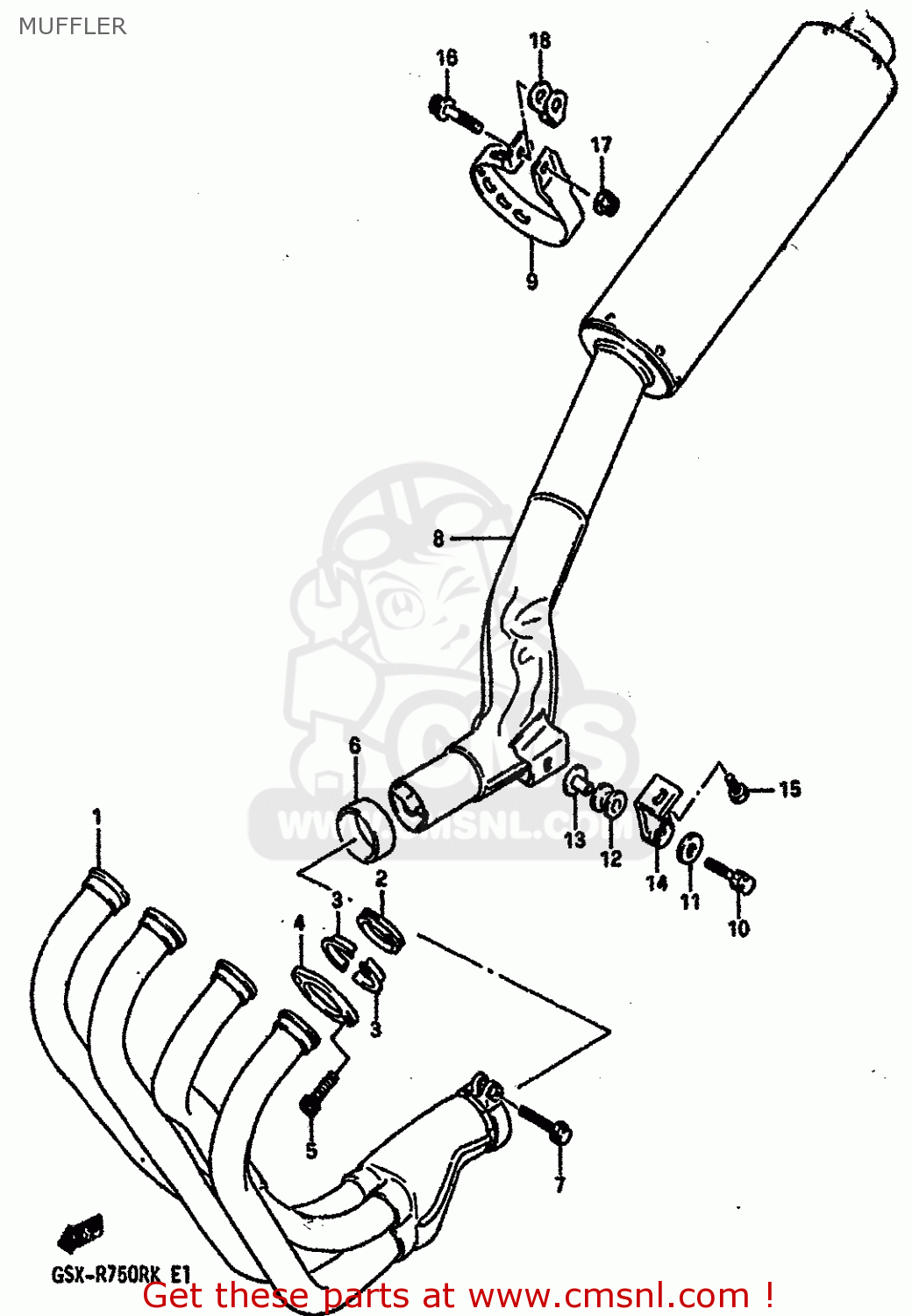

MUFFLER

ref

part #

description

quantity

1-1

1410007D02
ref: 1-1

EXHAUST ASSY

€ 752.50

1-2

1410007D20
ref: 1-2
E4

EXHAUST ASSY

€ 0.00

1-3

1410007D10
ref: 1-3
E22

EXHAUST ASSY

€ 0.00

2

1418118C00
ref: 2

GASKET,EXHAUST (NAS)

€ 6.50

3

1415527A00
ref: 3

PLATE,EXHAUST PIPE

€ 3.50

4

1418227A00
ref: 4

CLAMP,EXHAUST PIPE

€ 35.50

5

0711008255
ref: 5

BOLT

€ 3.50

6

1477107D00
ref: 6

CONNECTOR,MUFFLER

€ 33.50

7

0151708408
ref: 7

BOLT (8X40)

€ 3.50

8-1

1431007D01
ref: 8-1

BODY,MUFFLER

€ 1,096.00

8-2

1431007D11
ref: 8-2
E2,E4,E22

BODY,MUFFLER

€ 1,096.00

9

1441107D00
ref: 9

BRACKET,MUFFLER

€ 49.00

10

0911708026
ref: 10

BOLT 8X35

€ 6.50

11

0916008069
ref: 11

WASHER

€ 3.50

12

0932012038
ref: 12

CUSHION

€ 52.00

13

0918008157
ref: 13

SPACER(8.6X12X18.5)

€ 5.50

14

1477007D00
ref: 14

DAMPER,FRONT

€ 24.00

15

0910008240
ref: 15

BOLT(8X20)

€ 3.50

16

0712010407
ref: 16

BOLT

€ 4.50

17

0831616105
ref: 17

NUT

€ 2.00

18

1441207D10
ref: 18

WASHER,MUFFLER SUPPORT

€ 7.00

all assemblies
