A.C.GENERATOR

GT750 1972 (J) USA (E03)

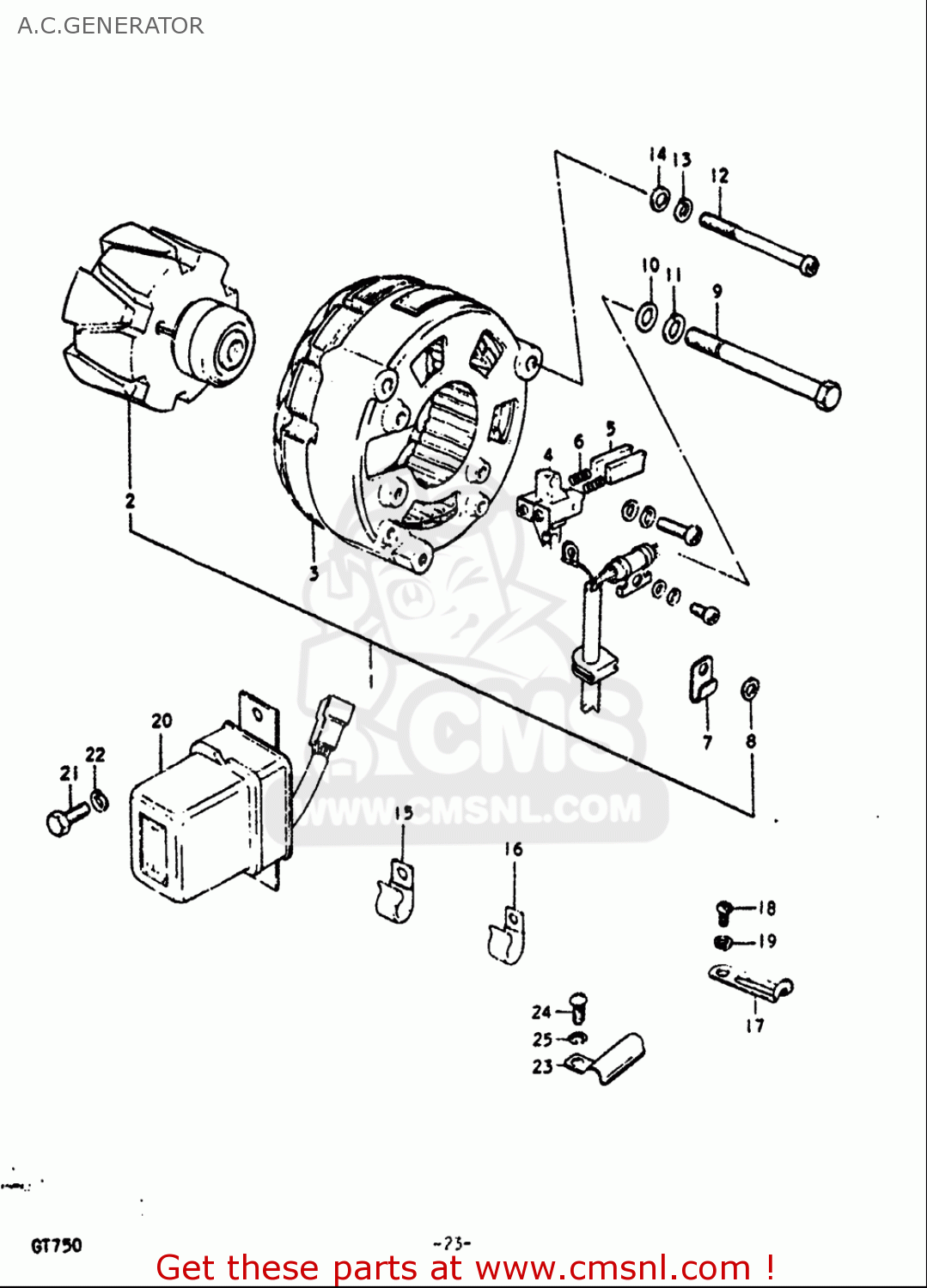

A.c.generator diagram GT750 1972 (J) USA (E03)

A.C.GENERATOR GT750 1972 (J) USA (E03)

A.C.GENERATOR GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

5

3163131011
ref: 5

BRUSH

€ 13.50

6

3163555012
ref: 6

SPRING

€ 3.00

10

0916008080
ref: 10

WASHER (8.2X22X3.2)

€ 2.50

11

0832101087
ref: 11

WASHER,LOCK

€ 2.00

12

0211205658
ref: 12

SCREW 5X65 CROS

€ 3.00

13

0832101057
ref: 13

WASHER,LOCK

€ 2.00

14

0832201057
ref: 14

WASHER

€ 2.50

15

0940408420
ref: 15

CLAMP(L:120 T:1.0)

€ 3.50

16

0940300069
ref: 16

CLAMP

€ 8.50

17

3250031010
ref: 17

REGULATOR ASSY,VOLTAGE

€ 161.50

18

0150006167
ref: 18

BOLT

€ 3.00

19

0832101067
ref: 19

WASHER,LOCK

€ 2.50

21

0211206107
ref: 21

SCREW

€ 1.50

22

0832101067
ref: 22

WASHER,LOCK

€ 2.50
