AIR CLEANER

GT750 1972 (J) USA (E03)

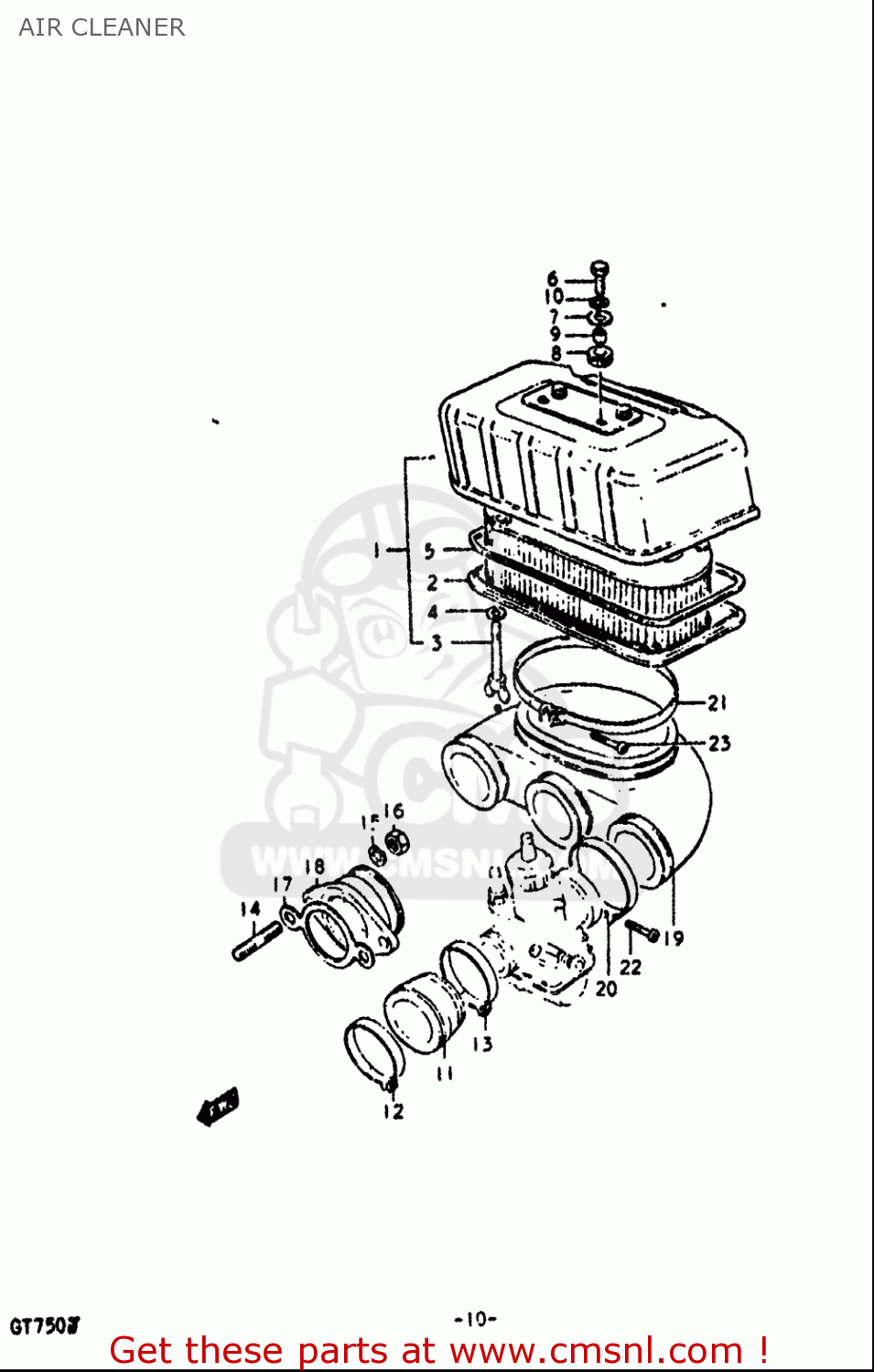

Air cleaner diagram GT750 1972 (J) USA (E03)

AIR CLEANER GT750 1972 (J) USA (E03)

AIR CLEANER GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

1378031011
ref: 2

FILTER ASSY

€ 55.00

4

083220106A
ref: 4

WASHER

€ 2.00

6

0150006257
ref: 6

BOLT

€ 2.00

7

0916006077
ref: 7

WASHER(6.5X20X1.2)

€ 2.00

8

0932008021
ref: 8

CUSHION

€ 4.00

9

09180C06259J000
ref: 9

SPACER,6.5X9X7

€ 0.00

10

0832101067
ref: 10

WASHER,LOCK

€ 2.50

11

1311131001
ref: 11

PIPE,INTAKE

€ 47.00

12

0940254303
ref: 12

CLAMP

€ 4.00

13

0940250306
ref: 13

CLAMP

€ 6.00

14

0142108168
ref: 14

STUD BOLT

€ 2.00

15

0832101087
ref: 15

WASHER,LOCK

€ 2.00

16

0831000087
ref: 16

NUT

€ 2.00

17

1312515000
ref: 17

GASKET,CARBURETOR (NAS)

€ 6.00

18

1311032200
ref: 18

PIPE,INTAKE

€ 51.00

20

0940264203
ref: 20

CLAMP

€ 6.00

22

0211204203
ref: 22

SCREW

€ 1.00
