REAR BRAKE

GT750 1972 (J) USA (E03)

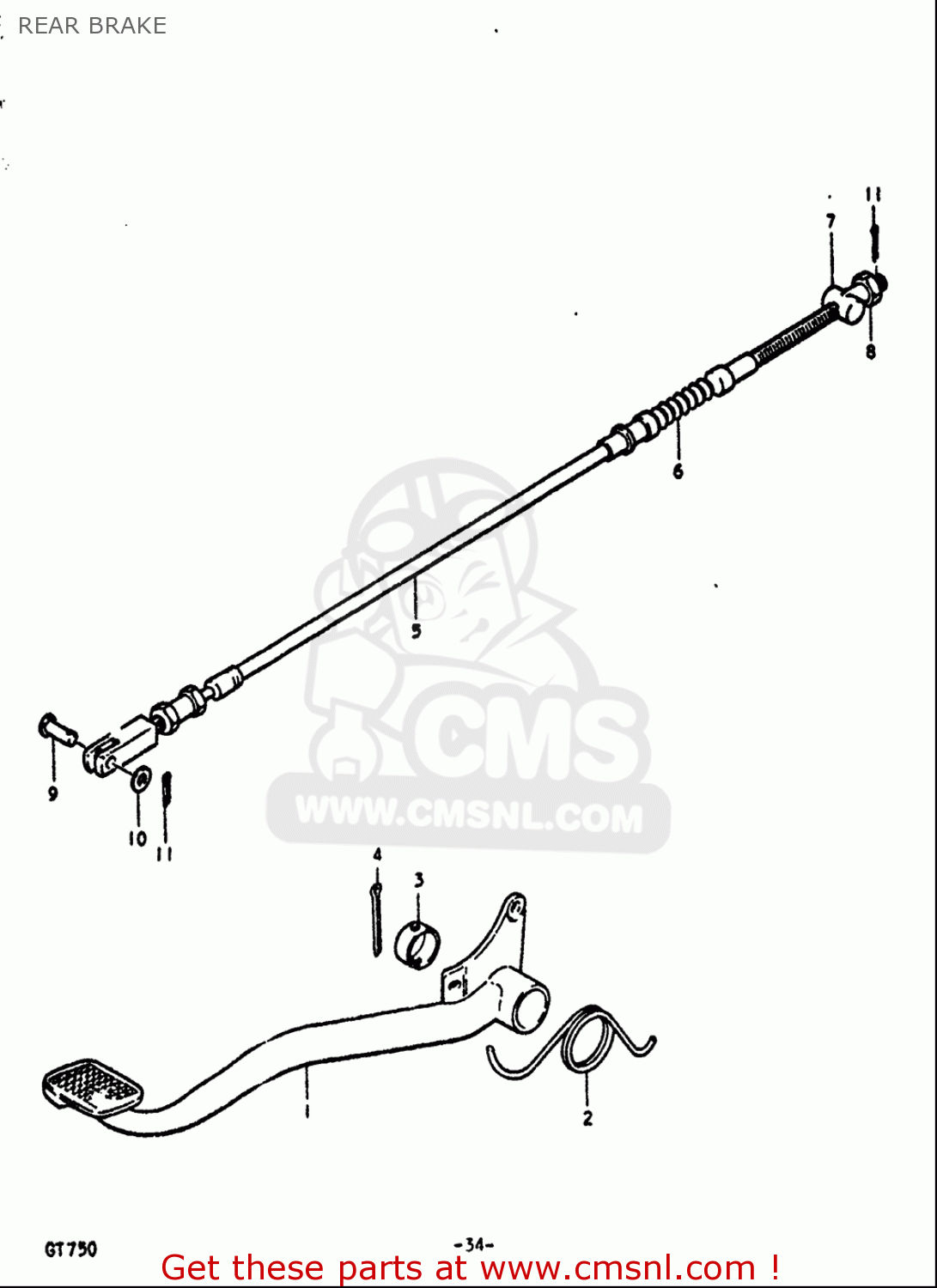

Rear brake diagram GT750 1972 (J) USA (E03)

REAR BRAKE GT750 1972 (J) USA (E03)

REAR BRAKE GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0944837010
ref: 2

SPRING

€ 3.50

4

0411140408
ref: 4

PIN, COTTER

€ 2.00

5

5850031000
ref: 5

CABLE ASSY,RR BRAKE

€ 36.50

6

0928705001
ref: 6

SEAL,DUST

€ 11.00

7

0920913018
ref: 7

PIN(13X18)

€ 3.50

8

0915006014
ref: 8

NUT

€ 3.50

9

0920005001
ref: 9

PIN(L:17.5)

€ 1.50

10

0832201067
ref: 10

WASHER

€ 2.00

11

0411120158
ref: 11

PIN

€ 1.50
