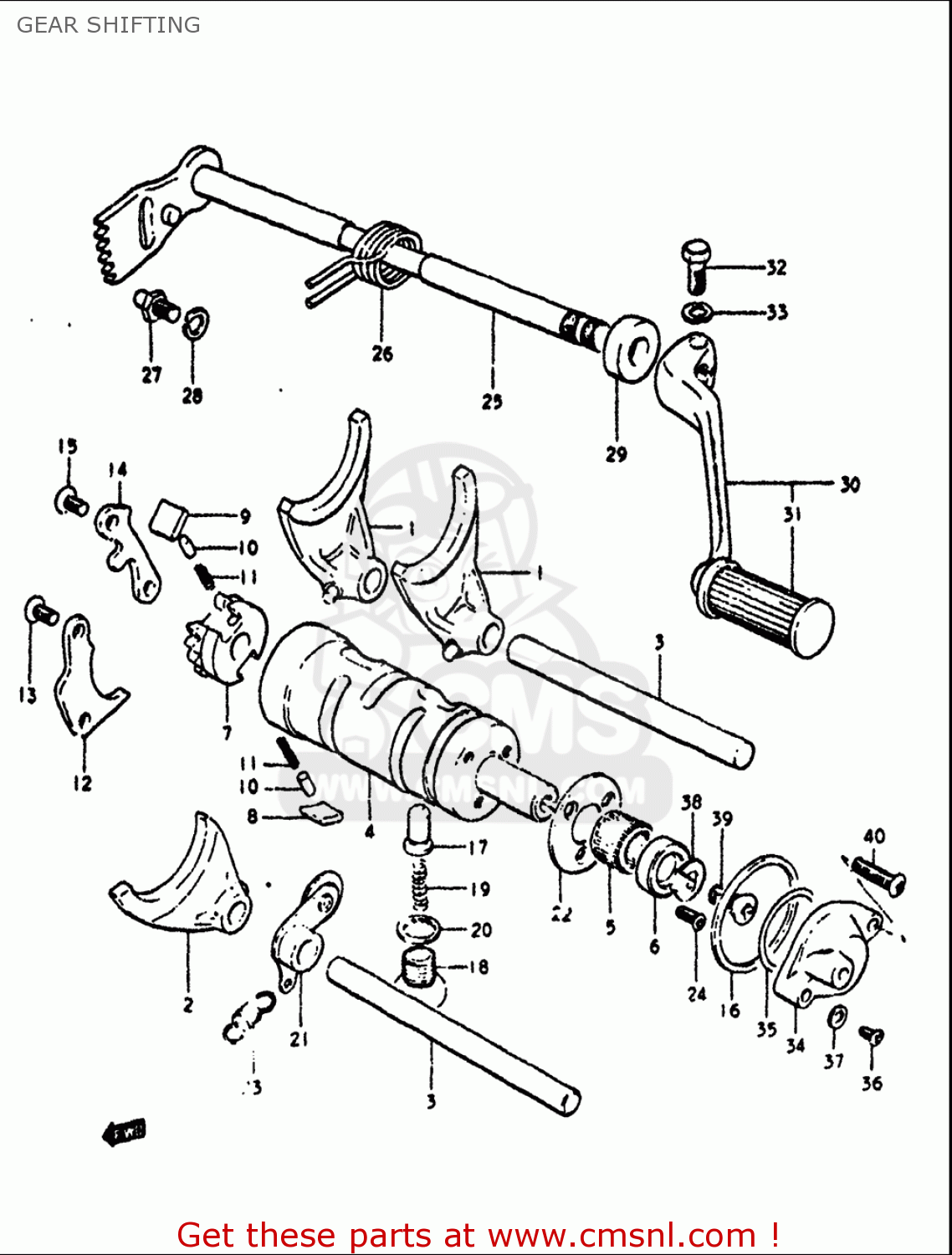

GEAR SHIFTING

ref

part #

description

quantity

3

2541118900
ref: 3

SHAFT,GEAR SHIFT FORK

€ 14.50

5-1

0926316006
ref: 5-1

ROLLER BEARING (16X22X1

€ 10.00

5-2

0926316012
ref: 5-2

BEARING(16X22X12)

€ 13.00

6

0928416002
ref: 6

SEAL,OIL(16X24X7)

€ 6.50

7

2532231310
ref: 7

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

8

2532334201
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532434201
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533111001
ref: 12

LIFTER,GEAR SHIFT PAWL

€ 2.50

13

0212206127
ref: 13

SCREW

€ 3.00

14

2534131000
ref: 14

GUIDE,GEAR SHIFT

€ 33.00

15

0212206127
ref: 15

SCREW

€ 3.00

16

0916040001
ref: 16

WASHER(40X45X1)

€ 2.50

17

2535130010
ref: 17

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

18

2535430000
ref: 18

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

19

0944006014
ref: 19

SPRING

€ 1.50

20

0916814004
ref: 20

GASKET(14X19.2X2) (NAS)

€ 2.50

23

0944309006
ref: 23

SPRING

€ 2.50

24

021220412A
ref: 24

SCREW

€ 2.00

26

0944426001
ref: 26

SPRING

€ 4.00

27

2567101011
ref: 27

STOPPER,GEAR SHIFT ARM

€ 3.00

28

0832101087
ref: 28

WASHER,LOCK

€ 2.00

29

0928512006
ref: 29

SEAL,OIL (12X22X9)

€ 7.00

31

2565216500
ref: 31

RUBBER,GEAR SHIFT PEDAL

€ 4.00

32

0150008207
ref: 32

BOLT

€ 3.00

33

0832101087
ref: 33

WASHER,LOCK

€ 2.00

34

3772115002
ref: 34

BODY,GEAR SHIFT SWITCH

€ 13.00

35

0928028002
ref: 35

O RING(D:1.9,ID:27.7)

€ 7.50

36

0211203047
ref: 36

SCREW

€ 2.00

37

0832201037
ref: 37

WASHER

€ 2.00

38

3771105101
ref: 38

CONTACT,GEAR SHIFT SWITCH

€ 4.00

39

0212206127
ref: 39

SCREW

€ 3.00

40

0211205207
ref: 40

SCREW

€ 3.00
