KICK STARTER

GT750 1972 (J) USA (E03)

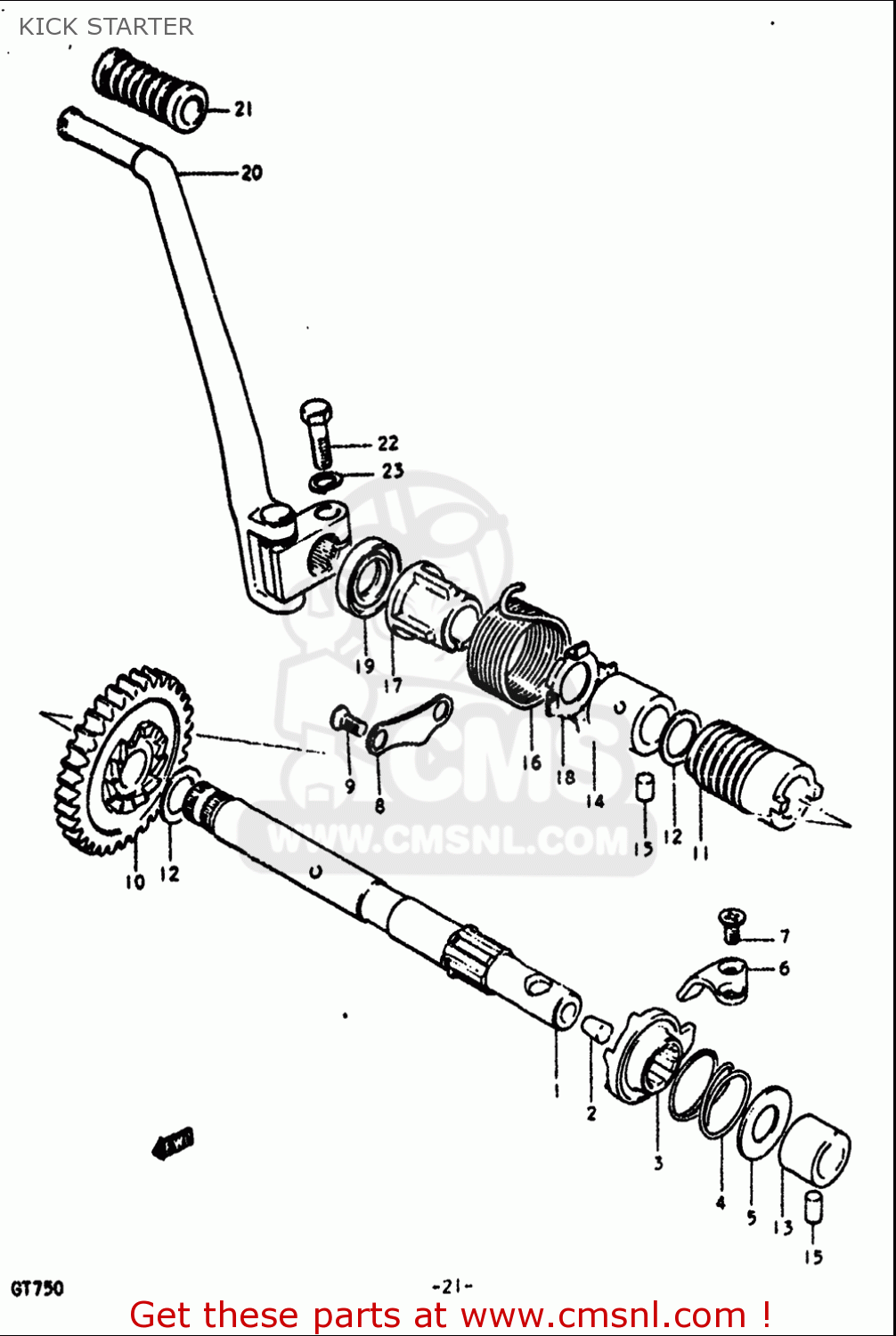

Kick starter diagram GT750 1972 (J) USA (E03)

KICK STARTER GT750 1972 (J) USA (E03)

KICK STARTER GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0924309001
ref: 2

PLUG

€ 2.00

3

2623122A10
ref: 3

STARTER,KICK

€ 47.50

4

0944032002
ref: 4

SPRING

€ 2.00

5

0821117342
ref: 5

WASHER

€ 3.00

6

2623231000
ref: 6

GUIDE,KICK STARTER

€ 8.00

7

0212206167
ref: 7

SCREW

€ 2.00

9

0212206127
ref: 9

SCREW

€ 3.00

12

0918120167
ref: 12

SHIM(20X28X1)

€ 2.50

15

0422107129
ref: 15

PIN

€ 1.50

16

0944847002
ref: 16

SPRING

€ 3.50

18

2622230000
ref: 18

HOLDER,KICK SHAFT SPRING

€ 2.50

19

0928320025
ref: 19

SEAL,OIL(20X37X7)

€ 6.50

21

2635216401
ref: 21

RUBBER,KICK STARTER PEDAL

€ 4.00

22

0150010303
ref: 22

BOLT

€ 3.00

23

0832101107
ref: 23

WASHER,LOCK

€ 2.00
