BATTERY

GT750 1972 (J) USA (E03)

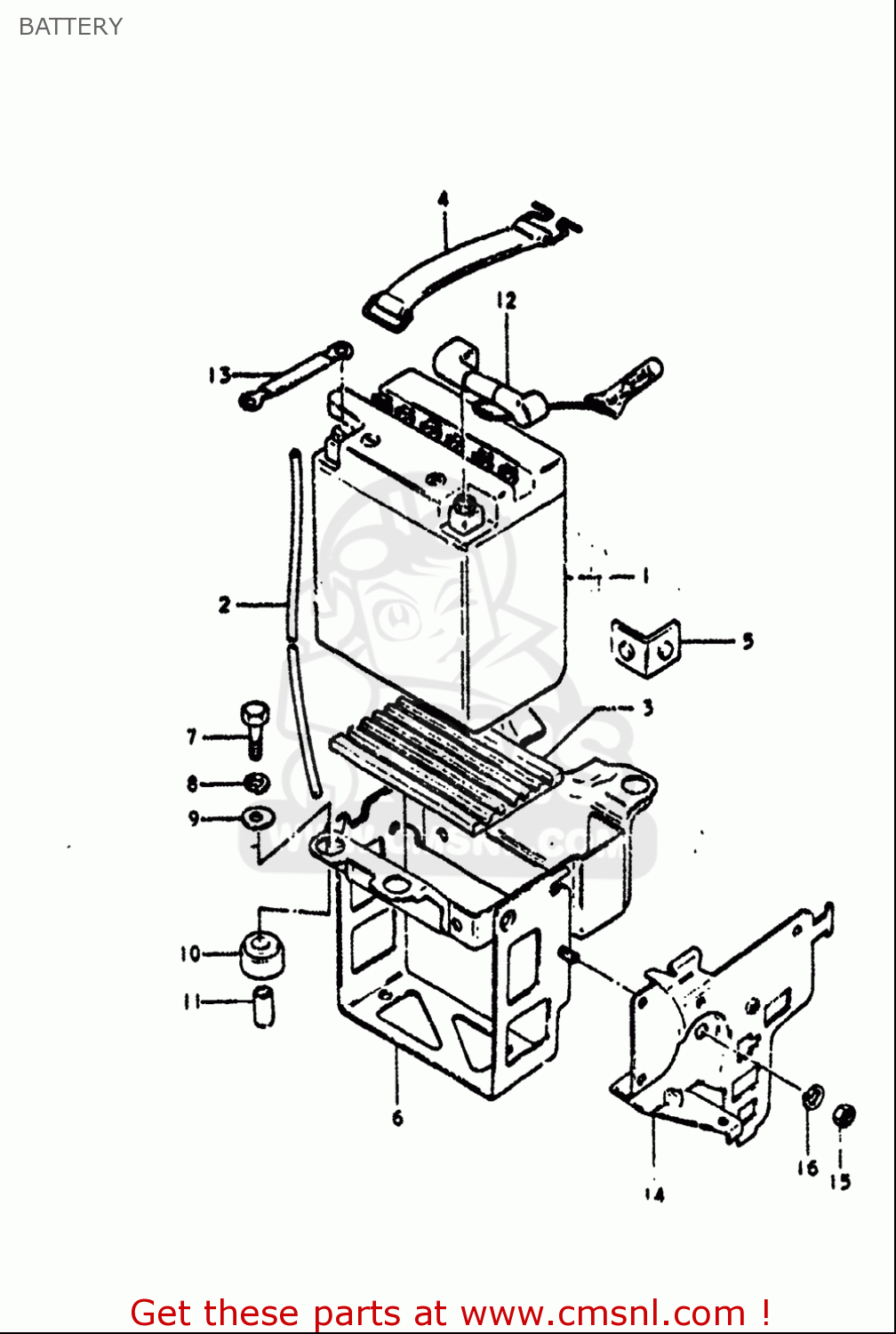

Battery diagram GT750 1972 (J) USA (E03)

BATTERY GT750 1972 (J) USA (E03)

BATTERY GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

2

3368016A10
ref: 2

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3

3365131000
ref: 3

PROTECTOR,BATTERY

€ 29.00

4

0946200050
ref: 4

BAND

€ 9.00

5

3365207D00
ref: 5

PROTECTOR(80X80X2)

€ 4.50

7

0150006307
ref: 7

BOLT

€ 2.50

8

0832101067
ref: 8

WASHER,LOCK

€ 2.50

9

0916006084
ref: 9

WASHER(6.5X18X1.6)

€ 2.00

10

0932008011
ref: 10

CUSHION

€ 5.00

11

0918006251
ref: 11

SPACER(6.1X8X15.5)

€ 2.00

12

3686131001
ref: 12

LEAD WIRE,BATTERY PLUS

€ 13.50

13

3385035400
ref: 13

WIRE,ENGINE EARTH

€ 7.00

15

0831000067
ref: 15

NUT

€ 2.50

16

0832101067
ref: 16

WASHER,LOCK

€ 2.50
