CENTER STAND

GT750 1972 (J) USA (E03)

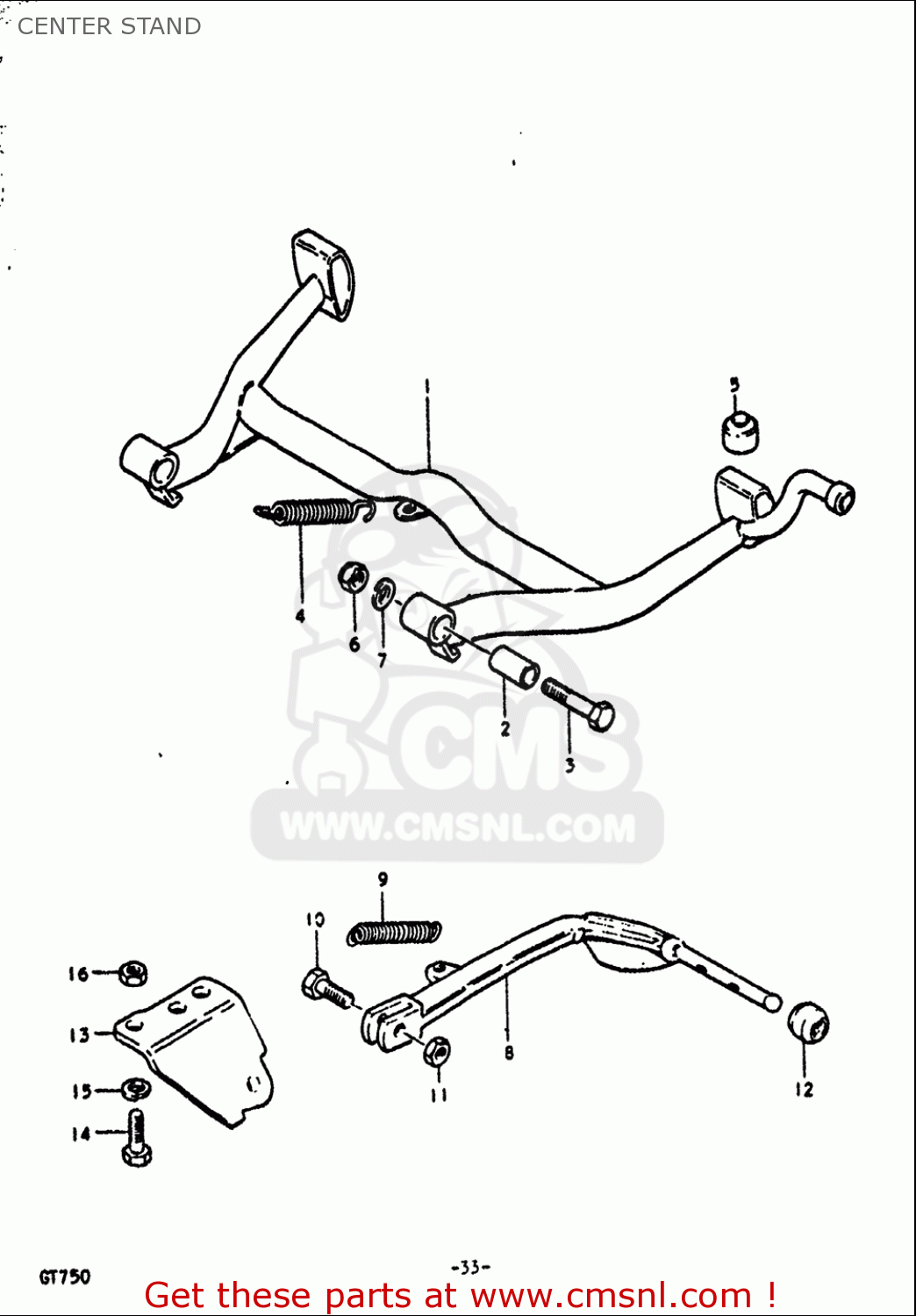

Center stand diagram GT750 1972 (J) USA (E03)

CENTER STAND GT750 1972 (J) USA (E03)

CENTER STAND GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0918010001
ref: 2

SPACER(10.5X16X30)

€ 3.50

3

0910010006
ref: 3

BOLT(10X48)

€ 4.00

4

0944316005
ref: 4

SPRING

€ 12.00

5

0932110001
ref: 5

CUSHION

€ 2.50

6

0915910011
ref: 6

NUT

€ 3.00

7

0832101107
ref: 7

WASHER,LOCK

€ 2.00

9

0944314017
ref: 9

SPRING

€ 6.50

10

0910010287
ref: 10

BOLT(10X27)

€ 4.50

11

0831000107
ref: 11

NUT

€ 2.50

12

0932007001
ref: 12

CUSHION

€ 4.00

14

0910010287
ref: 14

BOLT(10X27)

€ 4.50

15

0832101107
ref: 15

WASHER,LOCK

€ 2.00

16

0831000107
ref: 16

NUT

€ 2.50
