WATER PUMP - DRIVESHAFT

GT750 1972 (J) USA (E03)

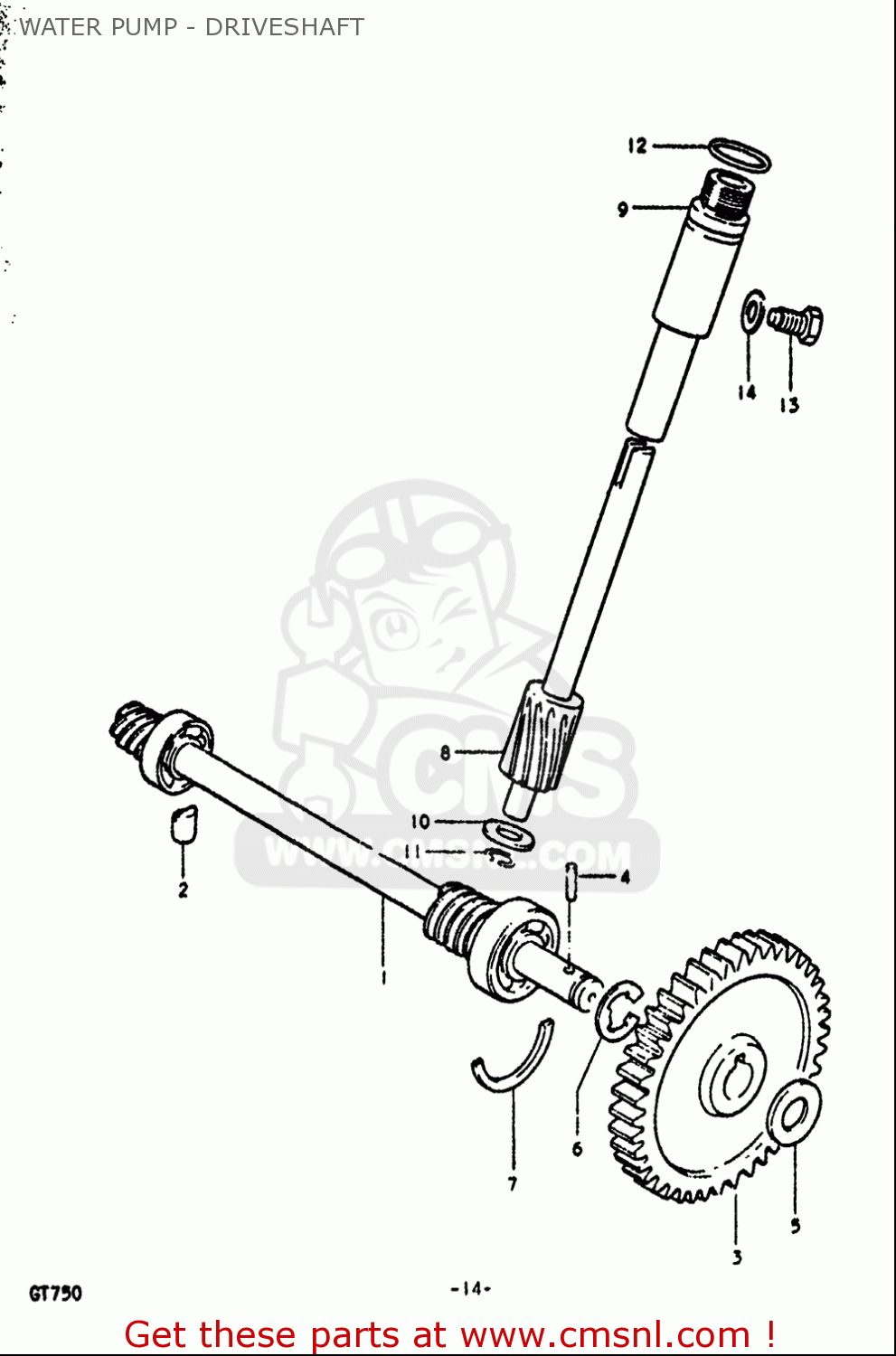

Water pump - driveshaft diagram GT750 1972 (J) USA (E03)

WATER PUMP - DRIVESHAFT GT750 1972 (J) USA (E03)

WATER PUMP - DRIVESHAFT GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

4

0926103006
ref: 4

PIN

€ 1.50

5

0918110195
ref: 5

SHIM(10X20X1)

€ 2.00

6

0833211093
ref: 6

E RING

€ 1.50

10

0918108167
ref: 10

SHIM(8X16X1)

€ 2.00

11

0938007002
ref: 11

CIRCLIP

€ 1.50

12

0928016001
ref: 12

O RING(D:1.7,ID:15.5)

€ 3.00

13

0913506002
ref: 13

BOLT

€ 2.50

14

0832201067
ref: 14

WASHER

€ 2.00
