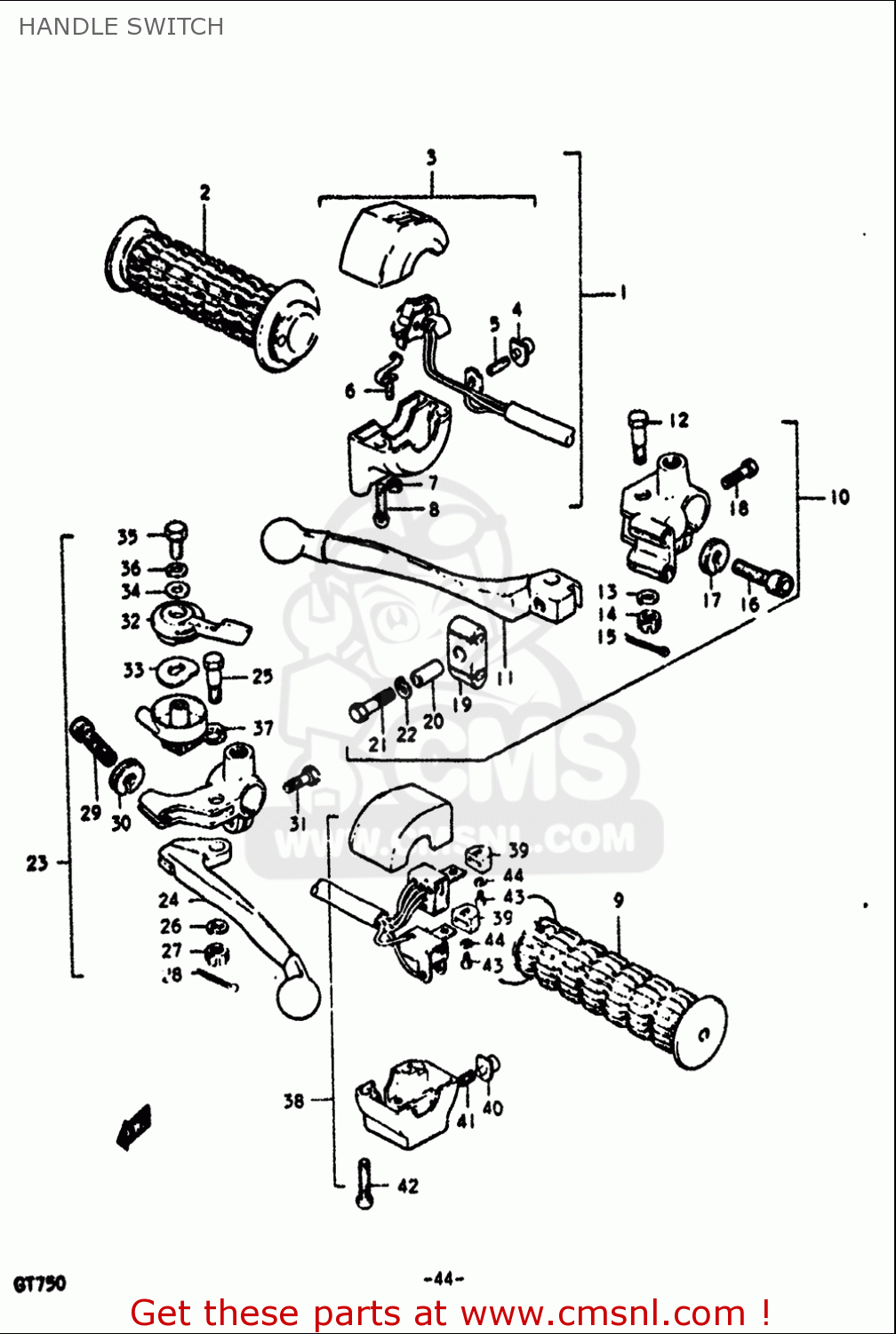

HANDLE SWITCH

ref

part #

description

quantity

1

5710031013
ref: 1

GRIP ASSY,THROTTLE

€ 129.50

2

5711031012
ref: 2

GRIP,THROTTLE

€ 47.00

4

5737001311
ref: 4

BUTTON

€ 4.00

5

5738201311
ref: 5

SPRING

€ 3.00

6

5717011011
ref: 6

ADJUSTER, THROTTLE

€ 4.50

7

0831000057
ref: 7

NUT

€ 2.50

8

0211205257
ref: 8

SCREW

€ 2.00

9

5721115110
ref: 9

GRIP

€ 30.00

10

5730031010
ref: 10

SWITCH ASSY,HANDLE,R

€ 69.50

12

5743131010
ref: 12

BOLT,LEVER PIVOT

€ 9.00

13

0832101067
ref: 13

WASHER,LOCK

€ 2.50

14

5743311010
ref: 14

NUT,LEVER FITTNG

€ 5.50

15

0411116208
ref: 15

PIN 16X20

€ 2.00

16

5744111010
ref: 16

ADJUSTER,CABLE

€ 8.00

17

5744211010
ref: 17

NUT,CABLE ADJUSTER

€ 4.00

18

0150006207
ref: 18

BOLT

€ 2.00

22

0832101067
ref: 22

WASHER,LOCK

€ 2.50

24

5762045010
ref: 24

LEVER,CLUTCH

€ 35.00

25

5743131010
ref: 25

BOLT,LEVER PIVOT

€ 9.00

26

0832101067
ref: 26

WASHER,LOCK

€ 2.50

27

5743311010
ref: 27

NUT,LEVER FITTNG

€ 5.50

28

0411116208
ref: 28

PIN 16X20

€ 2.00

29

5744111010
ref: 29

ADJUSTER,CABLE

€ 8.00

30

5744211010
ref: 30

NUT,CABLE ADJUSTER

€ 4.00

31

0150006207
ref: 31

BOLT

€ 2.00

32

5872103010
ref: 32

LEVER

€ 26.00

33

5872203010
ref: 33

WASHER,ADJUSTER

€ 3.00

34

0916006129
ref: 34

WASHER(6.5X16X1)

€ 2.00

35

0150006127
ref: 35

BOLT

€ 2.00

36

0832101067
ref: 36

WASHER,LOCK

€ 2.50

39

5774226010
ref: 39

KNOB,HANDLE SWITCH,UPPER

€ 3.50

40

5785031010
ref: 40

BUTTON,HORN

€ 6.50

41

5776126010
ref: 41

SPRING,BUTTON

€ 2.50

42

0912505109
ref: 42

SCREW(5X27)

€ 2.00

43

0211203063
ref: 43

SCREW

€ 2.00

44

0916203001
ref: 44

WASHER,LOCK

€ 1.50
