STARTER CLUTCH

GT750 1972 (J) USA (E03)

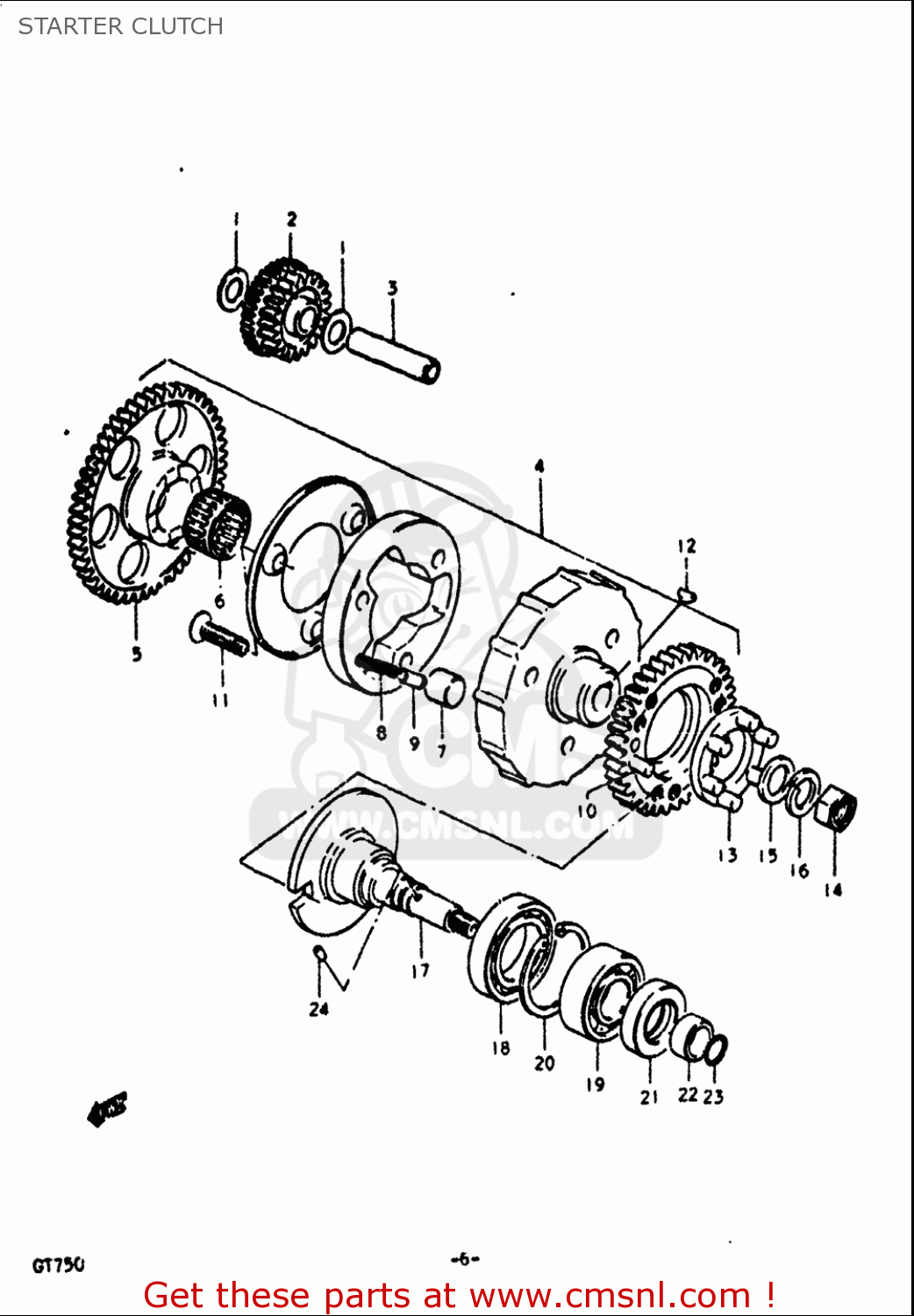

Starter clutch diagram GT750 1972 (J) USA (E03)

STARTER CLUTCH GT750 1972 (J) USA (E03)

STARTER CLUTCH GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

0916013003
ref: 1

WASHER(13.3X25X0.85)

€ 2.50

3

0920613003
ref: 3

PIN(7.4X13X56)

€ 9.00

6

0926325020
ref: 6

BEARING(25X29X9.9)

€ 13.50

7

0926115001
ref: 7

ROLLER(15X13)

€ 3.50

8

0944004015
ref: 8

SPRING

€ 2.50

9

1263331000
ref: 9

PIECE,PUSH

€ 9.00

10-2

0422107209
ref: 10-2

PIN

€ 1.50

11

0912608003
ref: 11

SCREW

€ 1.50

12

0834131039
ref: 12

KEY

€ 2.00

14

0914012039
ref: 14

NUT

€ 3.00

15

0832201127
ref: 15

WASHER

€ 2.00

16

0832101127
ref: 16

WASHER,LOCK

€ 2.50

19

0811063020
ref: 19

BEARING

€ 17.50

20

0833141426
ref: 20

CIRCLIP

€ 1.50

21

0928320024
ref: 21

SEAL,OIL(20X35X7)

€ 5.50

23

0928012003
ref: 23

O RING(D:1.3,ID:11.6)

€ 2.00

24

0422103059
ref: 24

PIN

€ 1.50
