FRAME

GT750 1972 (J) USA (E03)

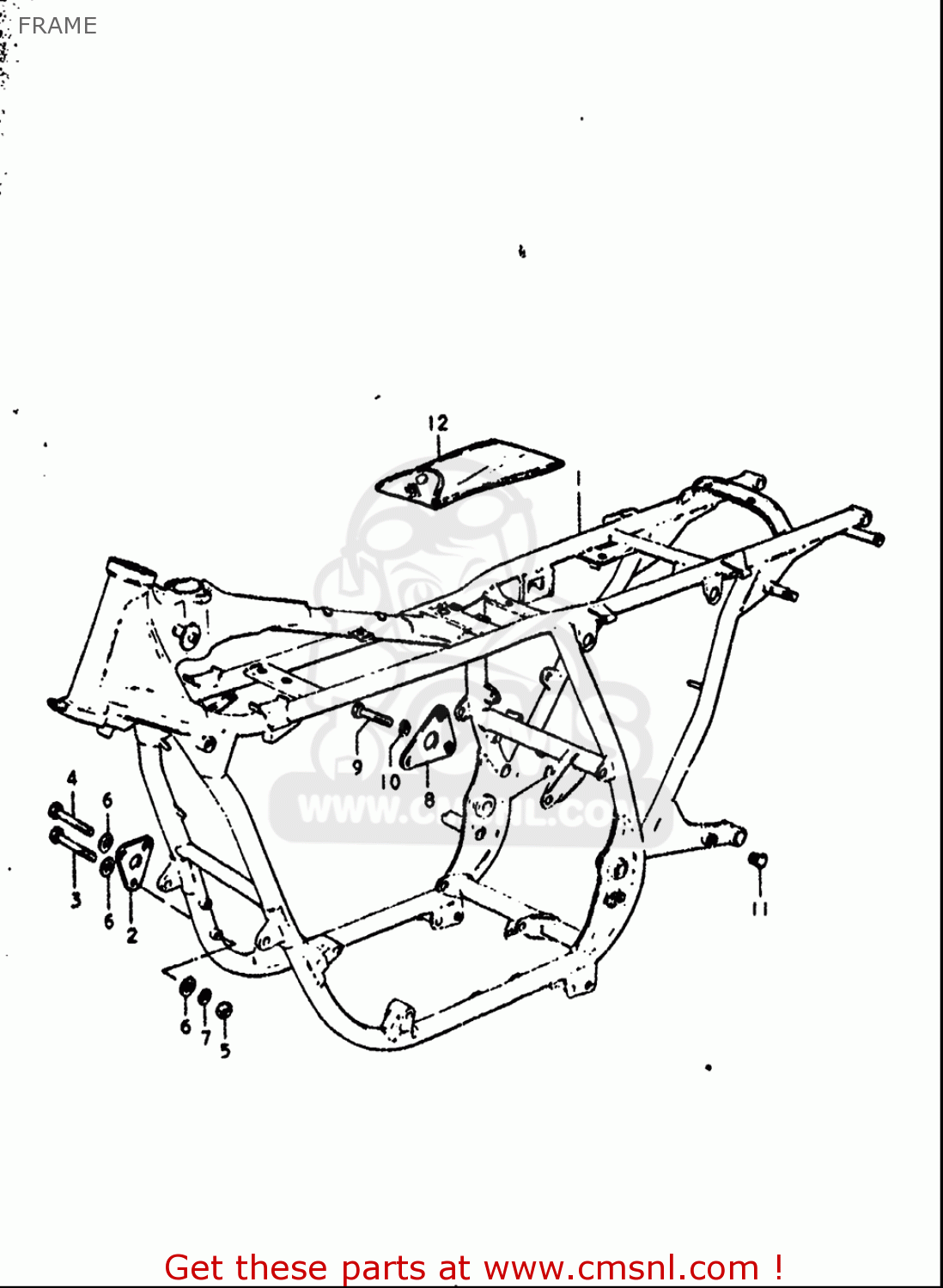

Frame diagram GT750 1972 (J) USA (E03)

FRAME GT750 1972 (J) USA (E03)

FRAME GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0150008653
ref: 3

BOLT

€ 3.00

4

0150008603
ref: 4

BOLT

€ 2.50

5

0831000087
ref: 5

NUT

€ 2.00

6

0832201087
ref: 6

WASHER

€ 2.00

7

0832101087
ref: 7

WASHER,LOCK

€ 2.00

9

0150008557
ref: 9

BOLT

€ 3.00

10

0832101087
ref: 10

WASHER,LOCK

€ 2.00

11

0925009001
ref: 11

CAP(OD:14)

€ 1.00

12

0980021033
ref: 12

TOOL ASSY

€ 43.00
