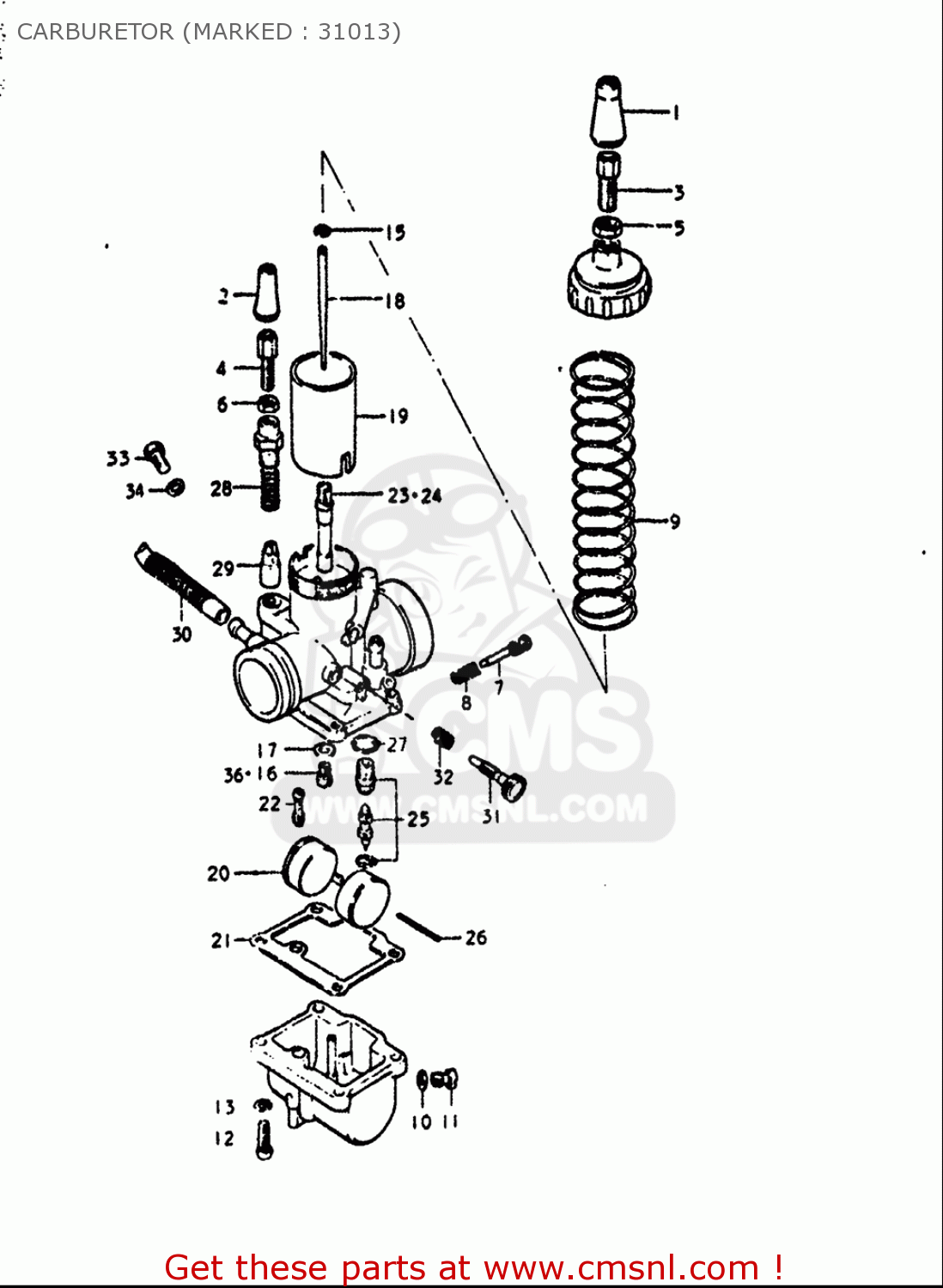

CARBURETOR (MARKED : 31013)

ref

part #

description

quantity

2

1368116601
ref: 2

CAP

€ 7.00

4

1357748110
ref: 4

ADJUSTER,CABLE

€ 8.00

6

1366116600
ref: 6

NUT

€ 5.00

7

1326915010
ref: 7

SCREW,PILOT AIR

€ 10.50

8

1326801010
ref: 8

SPRING

€ 3.50

10

1324905010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 1.50

11

1324705010
ref: 11

PLUG

€ 6.00

12

0211204163
ref: 12

SCREW 4X16

€ 1.00

13

0832101043
ref: 13

WASHER,LOCK

€ 2.00

15

1339410010
ref: 15

CLIP

€ 4.50

16-1

0949120012
ref: 16-1

JET,MAIN(102.5)

€ 8.50

16-2

0949120017
ref: 16-2

JET,MAIN

€ 10.50

17

1338203110
ref: 17

WASHER

€ 2.50

20

1325218010
ref: 20

FLOAT

€ 28.50

21

1325133110
ref: 21

GASKET,FLOAT CAHMBER (NAS)

€ 10.50

22

0949230006
ref: 22

JET,PILOT(30)

€ 8.50

25

1337041500
ref: 25

VALVE ASSY,NEEDLE

€ 61.50

26

1325401010
ref: 26

PIN,FLOAT

€ 3.00

27

1339216600
ref: 27

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

28

1341718630
ref: 28

SPRING

€ 6.00

29

1341101010
ref: 29

PLUNGER,STARTER

€ 14.00

32

1326803110
ref: 32

SPRING,THROTTLE SCREW

€ 3.50

33

1366418654
ref: 33

BOLT

€ 10.50

34

1366331010
ref: 34

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

36

0949197003
ref: 36

JET,MAIN(97.5)

€ 8.50

37-1

0949121016
ref: 37-1

JET,MAIN(105)

€ 9.50

37-2

0949121014
ref: 37-2

JET,MAIN(107.5)

€ 8.50

37-3

0949122016
ref: 37-3

JET,MAIN(110)

€ 7.00

37-4

0949122015
ref: 37-4

JET,MAIN(112.5)

€ 11.00
