OIL TANK - FRAME COVER

GT750 1972 (J) USA (E03)

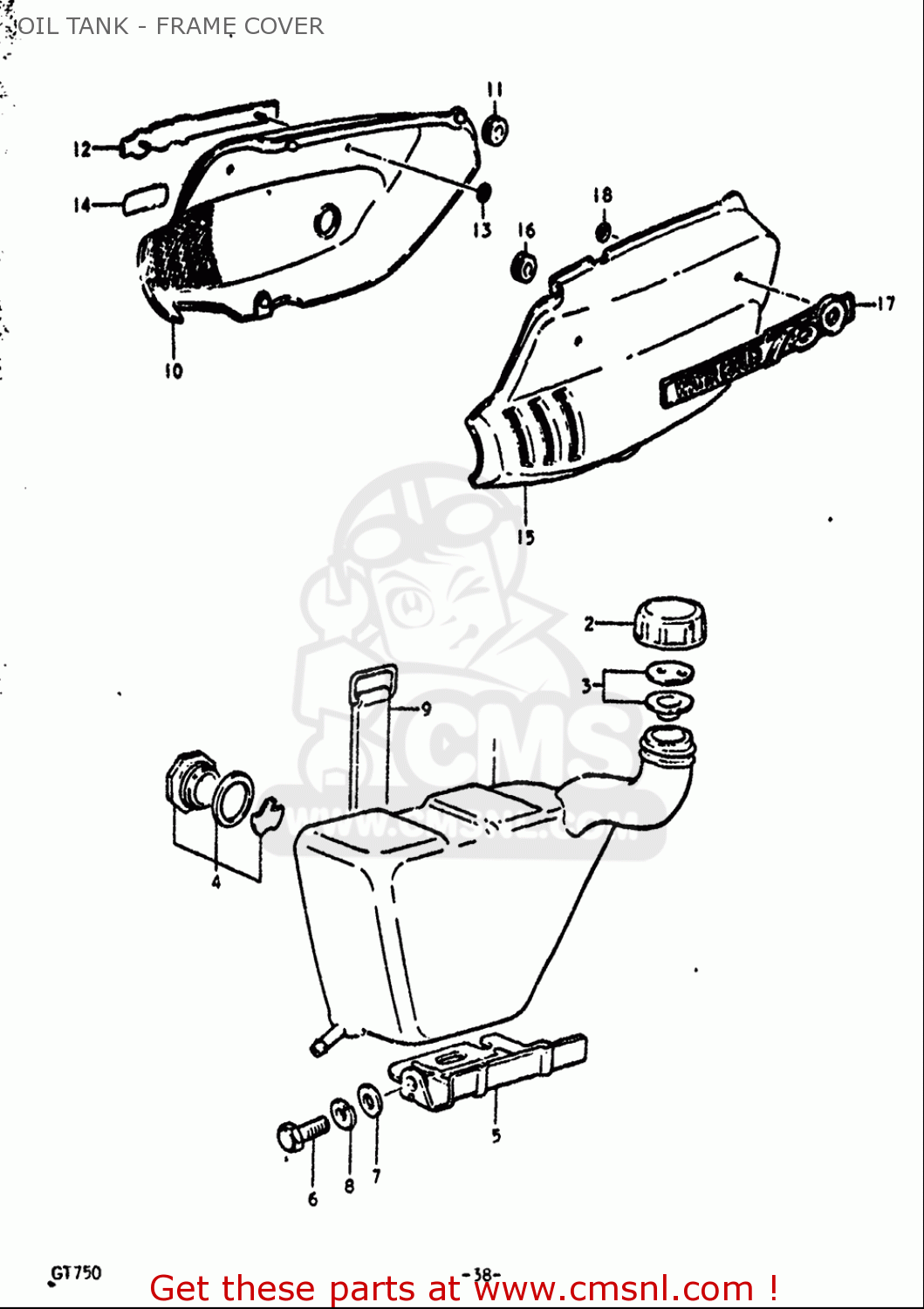

Oil tank - frame cover diagram GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4460031831
ref: 4

LENS SET,OIL LEVEL

€ 18.00

0150006127
ref: 6

BOLT

€ 2.00

0832201067
ref: 7

WASHER

€ 2.00

0832101067
ref: 8

WASHER,LOCK

€ 2.50

0946200055A
ref: 9

BAND

€ 4.00

10-1

4710131810
ref: 10-1

COVER SET,FRAME,R

€ 44.00

0932008013
ref: 11

CUSHION

€ 4.00

6814131600
ref: 12

EMBLEM,FRAME COVER,R

€ 34.50

0914804016
ref: 13

NUT (4MM)

€ 2.50

6817126000
ref: 14

EMBLEM,CCIS

€ 4.00

15-1

4720131811
ref: 15-1

COVER SET,FRAME,L

€ 49.00

0932008013
ref: 16

CUSHION

€ 4.00

6814131600
ref: 17

EMBLEM,FRAME COVER,R

€ 34.50

0914804016
ref: 18

NUT (4MM)

€ 2.50
