GT750 1972 (J) USA (E03)

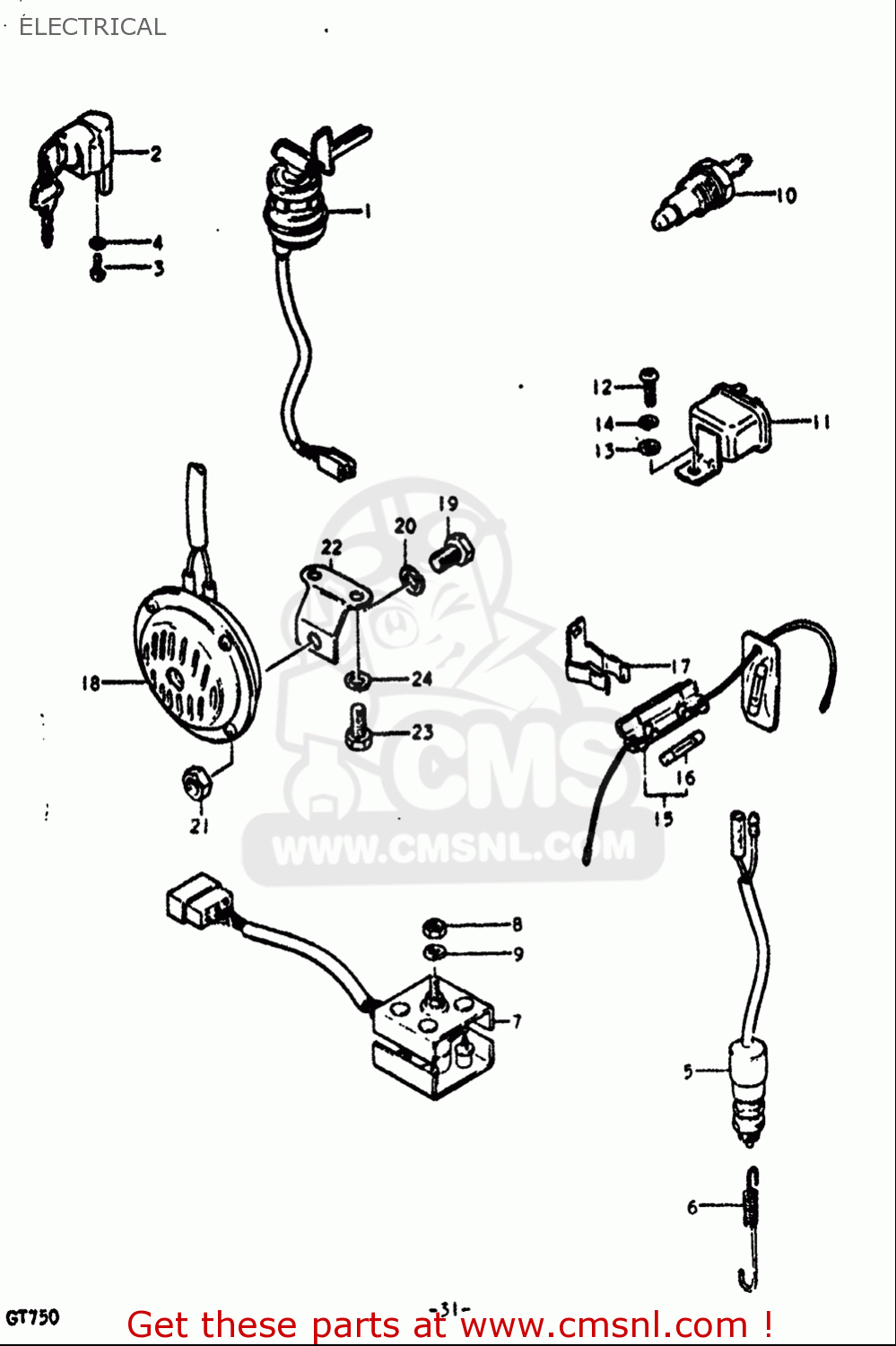

Electrical diagram GT750 1972 (J) USA (E03)
ELECTRICAL GT750 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3711033017
ref: 1
SWITCH ASSY,IGNITION
€ 94.50
2
5190033811
ref: 2
LOCK ASSY,STEERING
€ 32.50
3
0211205257
ref: 3
SCREW
€ 2.00
4
0832101057
ref: 4
WASHER,LOCK
€ 2.00
5
3774048071
ref: 5
SWITCH ASSY,STOP LAMP
€ 22.00
6
0944306023
ref: 6
SPRING
€ 6.50
7
3280031021
ref: 7
RECTIFIER ASSY
€ 259.00
8
0831000067
ref: 8
NUT
€ 2.50
9
083210106A
ref: 9
WASHER,LOCK
€ 2.00
12
0211206167
ref: 12
SCREW
€ 2.50
13
0832201067
ref: 13
WASHER
€ 2.00
14
0832101067
ref: 14
WASHER,LOCK
€ 2.50
15
3674031212
ref: 15
CASE ASSY,FUSE
€ 18.50
16
0948120001
ref: 16
FUSE(20A)
€ 2.00
19
0150008127
ref: 19
BOLT
€ 2.50
20
0832101087
ref: 20
WASHER,LOCK
€ 2.00
21
0831000087
ref: 21
NUT
€ 2.00
23
0150006127
ref: 23
BOLT
€ 2.00
24
0832101067
ref: 24
WASHER,LOCK
€ 2.50
