RADIATOR SUB TANK

GT750 1972 (J) USA (E03)

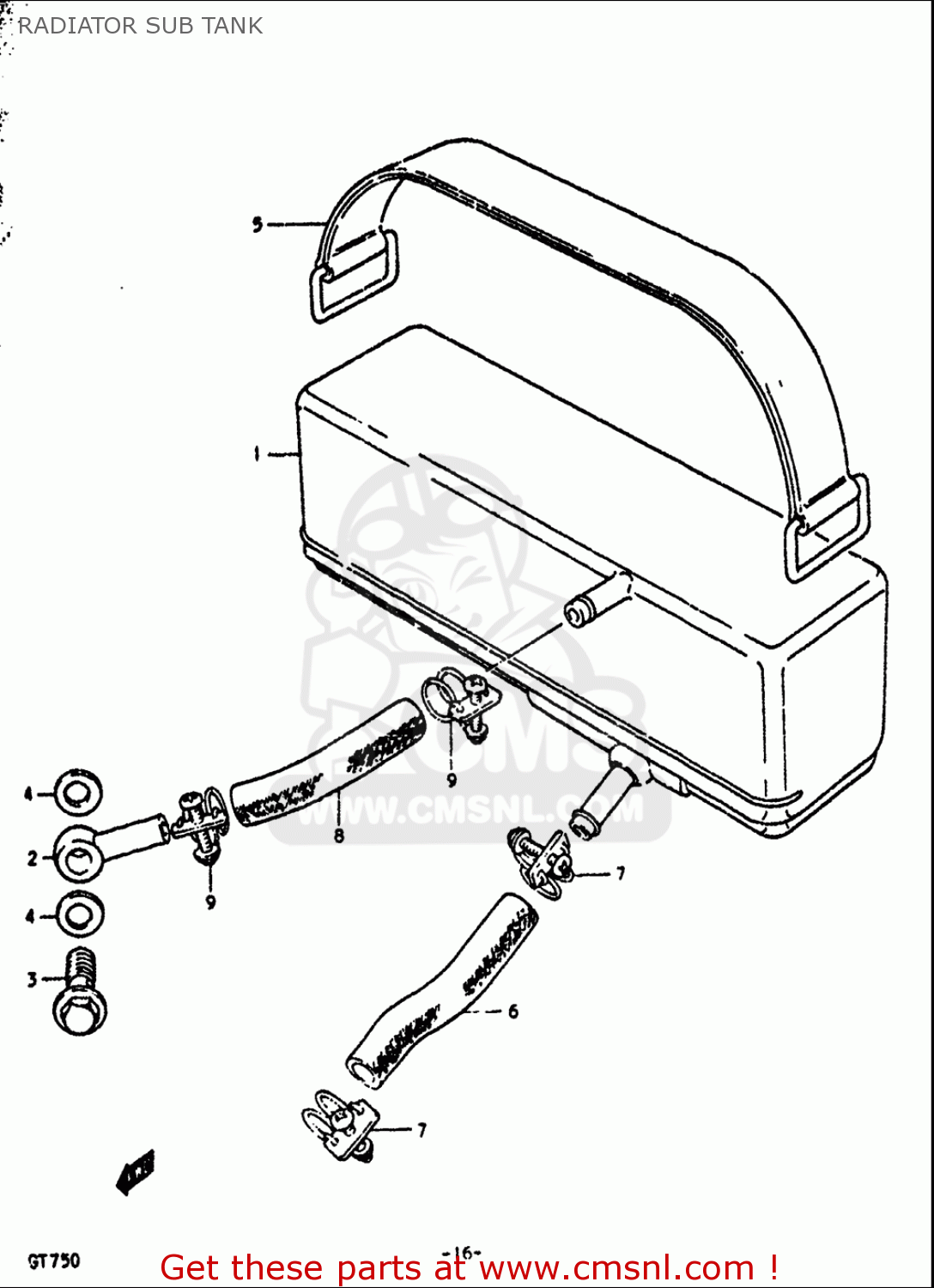

Radiator sub tank diagram GT750 1972 (J) USA (E03)

RADIATOR SUB TANK GT750 1972 (J) USA (E03)

RADIATOR SUB TANK GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0936306006
ref: 2

UNION

€ 17.50

3

0936006003
ref: 3

UNION BOLT

€ 5.00

4

0916806004
ref: 4

GASKET(6.2X11X1).2 (NAS)

€ 1.50

5

0946200051
ref: 5

BAND

€ 29.50

6

0934305123
ref: 6

HOSE(5.5X9.5X400)

€ 14.00

7

0940010302
ref: 7

CLAMP

€ 9.50

8

0934305087
ref: 8

HOSE(5.5X9.5X52)

€ 7.50

9

0940010302
ref: 9

CLAMP

€ 9.50
