COOLING FAN

GT750 1972 (J) USA (E03)

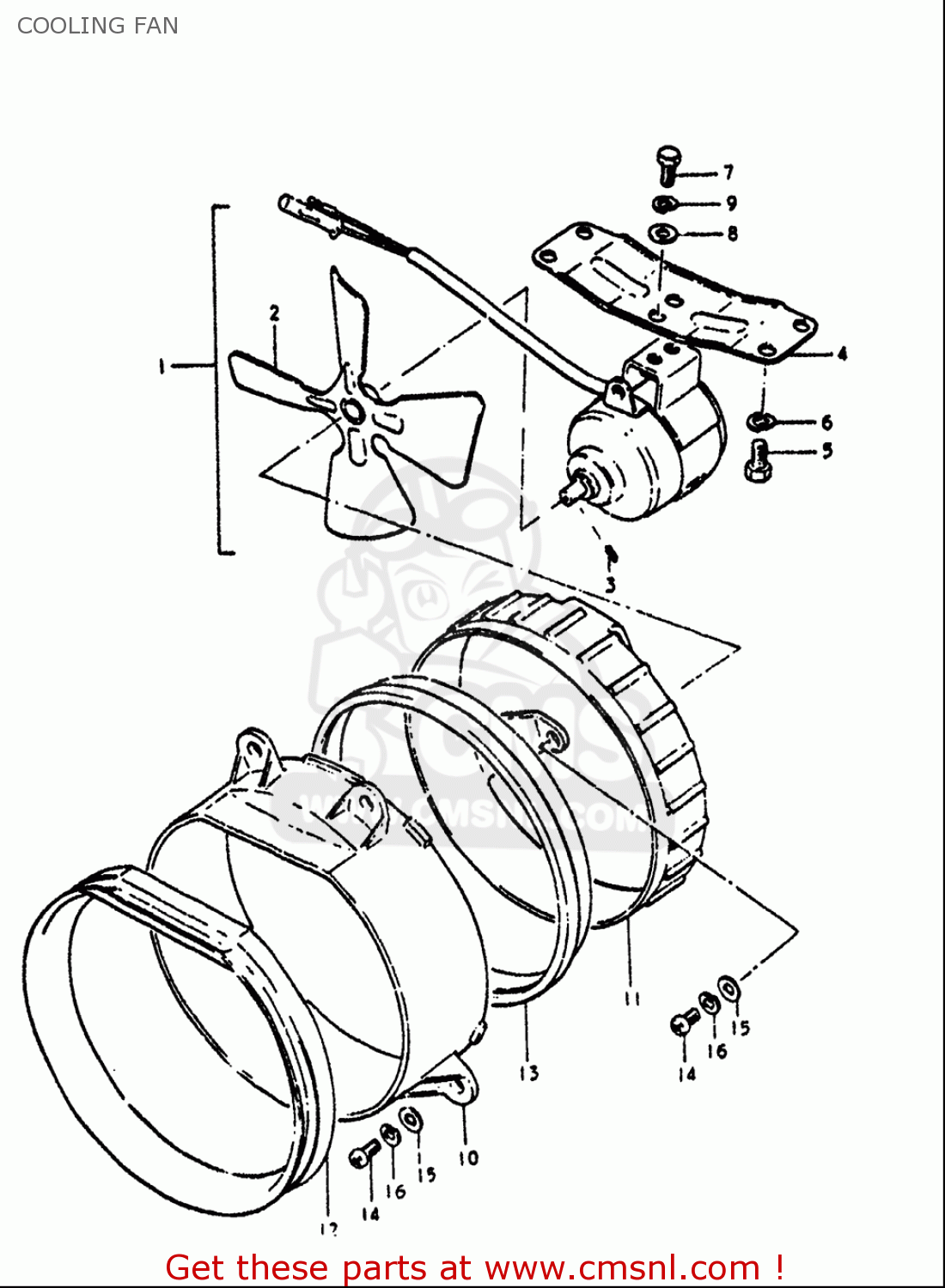

Cooling fan diagram GT750 1972 (J) USA (E03)

COOLING FAN GT750 1972 (J) USA (E03)

COOLING FAN GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0211204123
ref: 3

SCREW

€ 1.50

5

0150006107
ref: 5

BOLT

€ 2.00

6

0832101067
ref: 6

WASHER,LOCK

€ 2.50

7

0150005103
ref: 7

BOLT

€ 1.50

8

0832201057
ref: 8

WASHER

€ 2.50

9

0832101057
ref: 9

WASHER,LOCK

€ 2.00

14

0211205107
ref: 14

SCREW

€ 2.00

15

0832201057
ref: 15

WASHER

€ 2.50

16

0832101057
ref: 16

WASHER,LOCK

€ 2.00
