WIRING HARNESS

GT750 1972 (J) USA (E03)

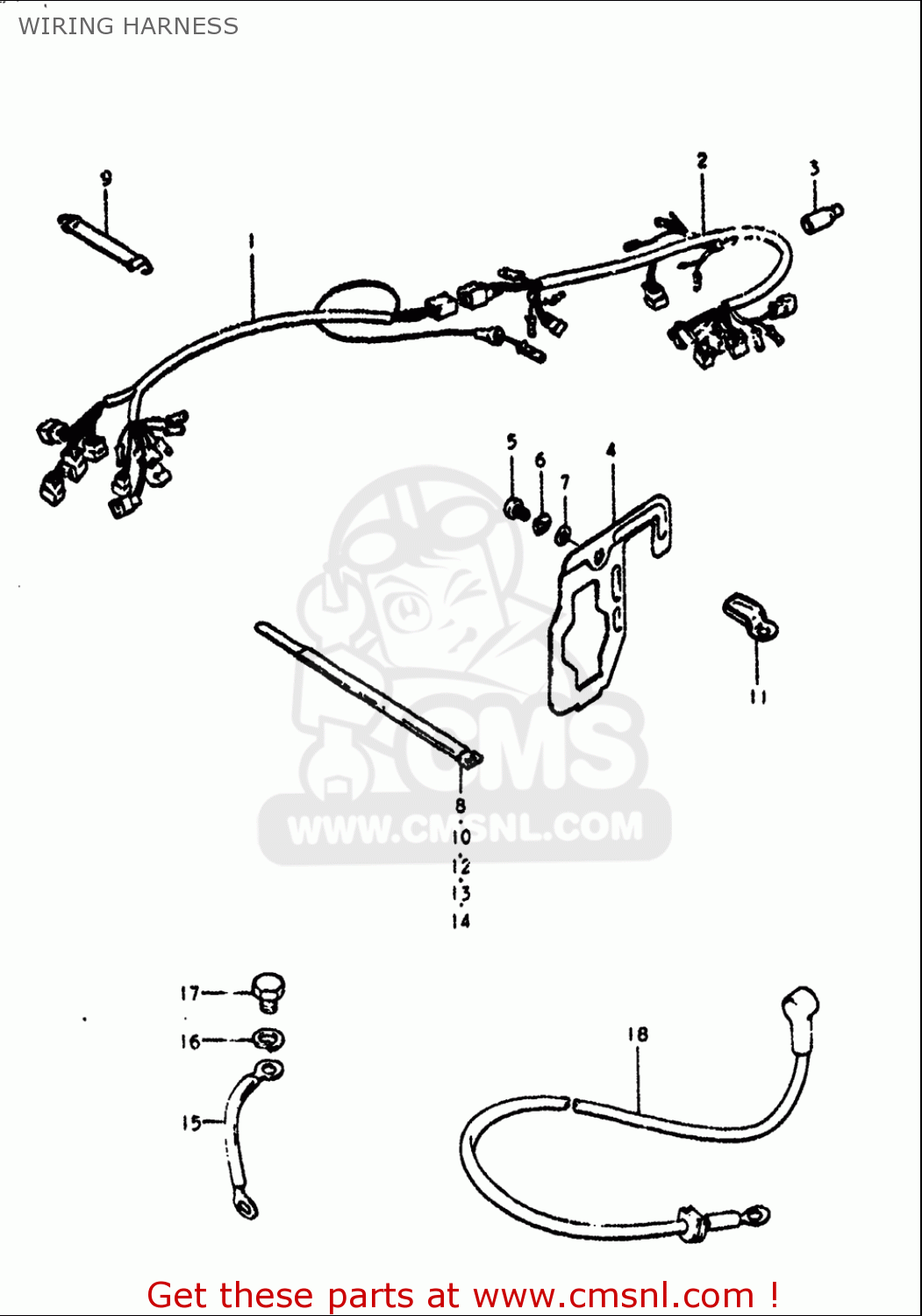

Wiring harness diagram GT750 1972 (J) USA (E03)

WIRING HARNESS GT750 1972 (J) USA (E03)

WIRING HARNESS GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

3662031004
ref: 2

HARNESS,WIRING NO.2

€ 94.50

3

3661830000
ref: 3

BOOT,WIRING HARNESS

€ 8.50

5

0211204087
ref: 5

SCREW

€ 1.50

6

0832101043
ref: 6

WASHER,LOCK

€ 2.00

7

0832201047
ref: 7

WASHER

€ 2.00

8

0940718301
ref: 8

CLAMP

€ 6.00

10

0940718301
ref: 10

CLAMP

€ 6.00

11

0940306301
ref: 11

CLAMP

€ 2.00

12

0940714301
ref: 12

CLAMP

€ 6.00

13

0940718301
ref: 13

CLAMP

€ 6.00

14

0940714301
ref: 14

CLAMP

€ 6.00

16

0832101087
ref: 16

WASHER,LOCK

€ 2.00

17

0150008127
ref: 17

BOLT

€ 2.50
