FOOTREST

GT750 1972 (J) USA (E03)

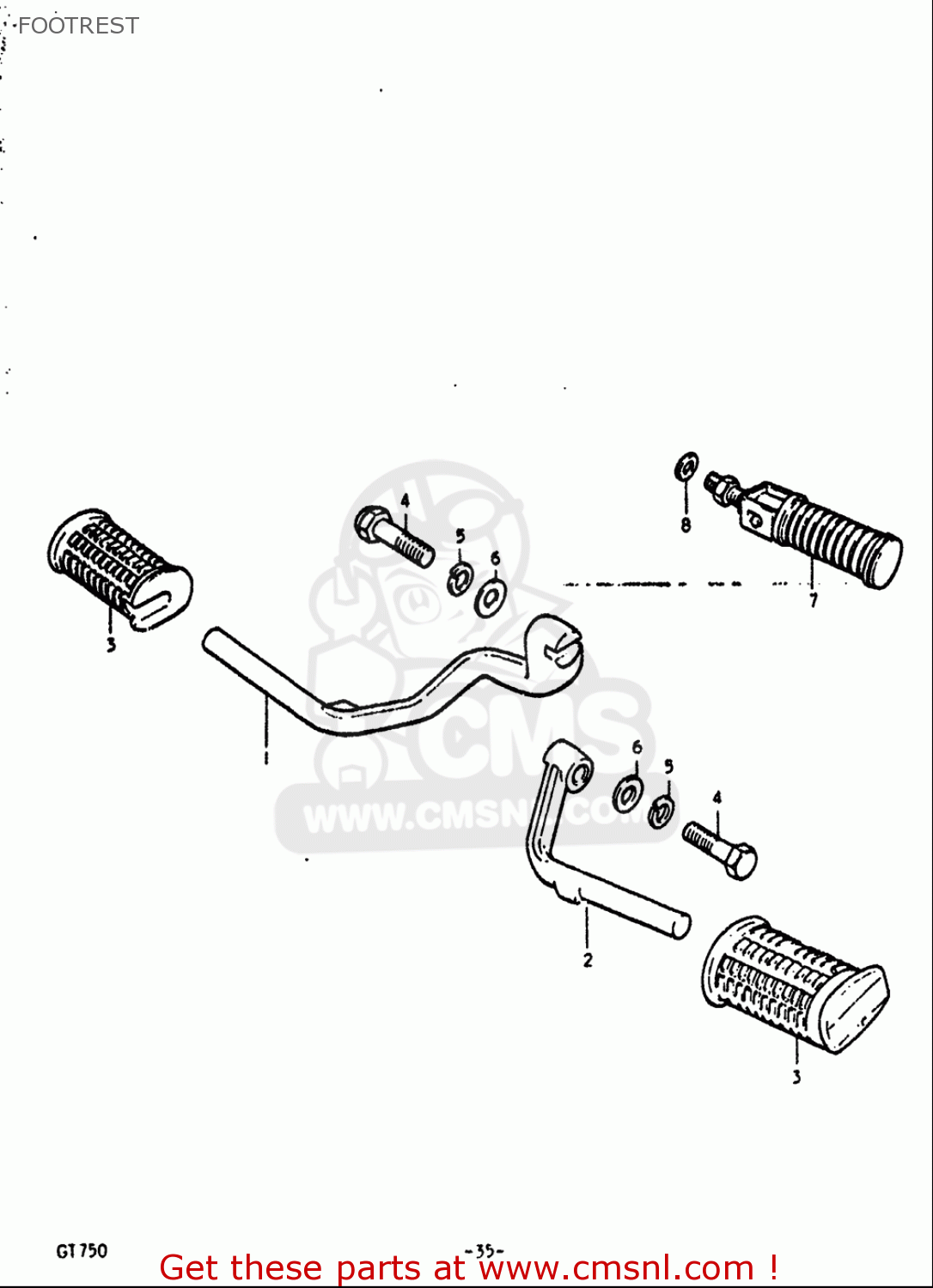

Footrest diagram GT750 1972 (J) USA (E03)

FOOTREST GT750 1972 (J) USA (E03)

FOOTREST GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

5

0832101127
ref: 5

WASHER,LOCK

€ 2.50

6

0832201127
ref: 6

WASHER

€ 2.00

7

4360031000
ref: 7

FOOTREST ASSY,PILLION

€ 33.00

8

0832201107
ref: 8

WASHER

€ 2.50
