FUEL TANK

GT750 1972 (J) USA (E03)

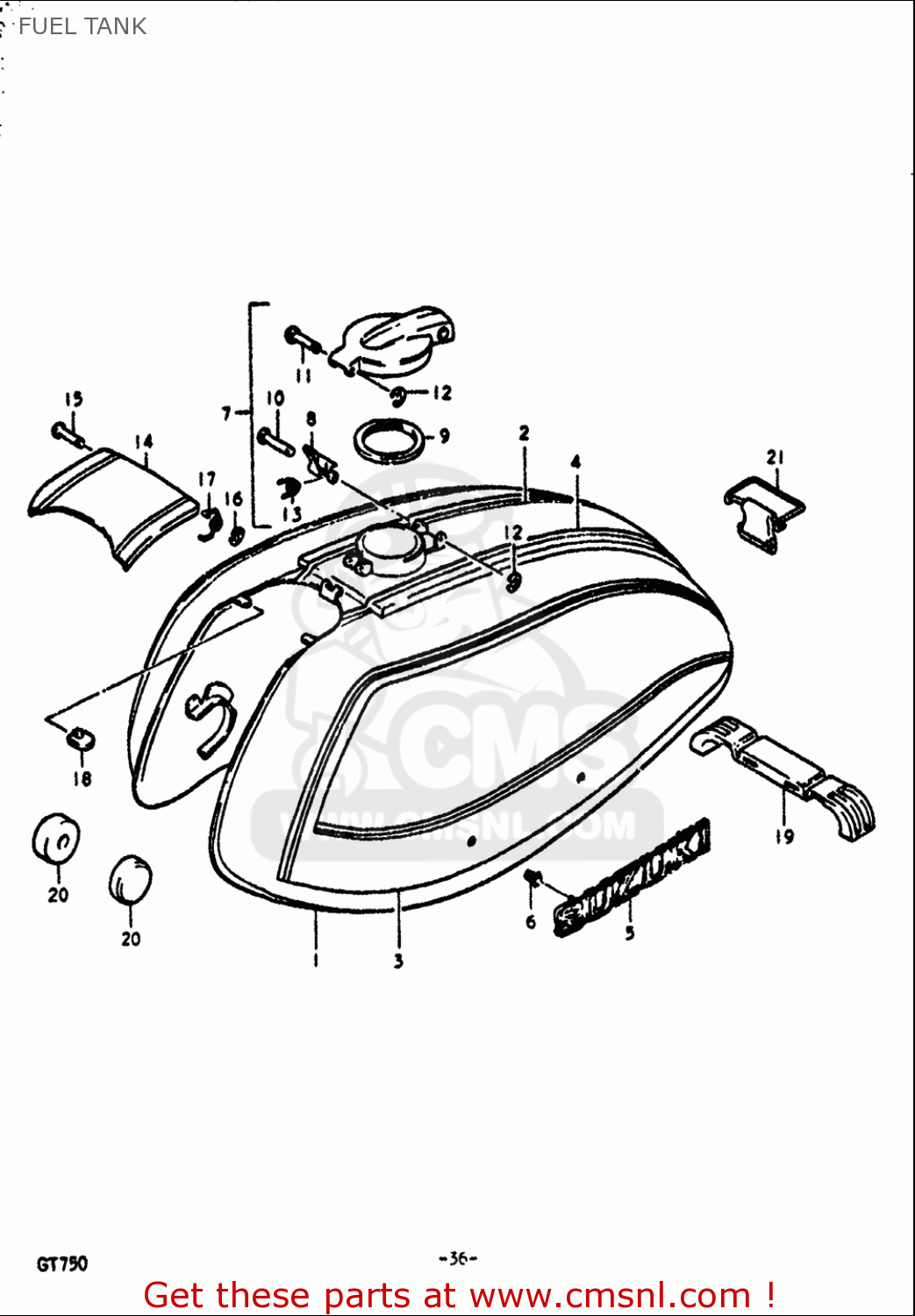

Fuel tank diagram GT750 1972 (J) USA (E03)

FUEL TANK GT750 1972 (J) USA (E03)

FUEL TANK GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

6

0914804005
ref: 6

NUT

€ 2.50

8

4424615100
ref: 8

LEVER

€ 26.50

10

0920803001
ref: 10

PIN

€ 6.00

12

0938302003
ref: 12

E RING

€ 2.00

13

0944406002
ref: 13

SPRING

€ 5.00

17

0944808003
ref: 17

SPRING

€ 4.00

19

4454131600
ref: 19

CUSHION

€ 10.00

20

0932910007
ref: 20

CUSHION

€ 3.00

21

0946200049
ref: 21

BAND

€ 29.00
