CLUTCH
GT750 1972 (J) USA (E03)

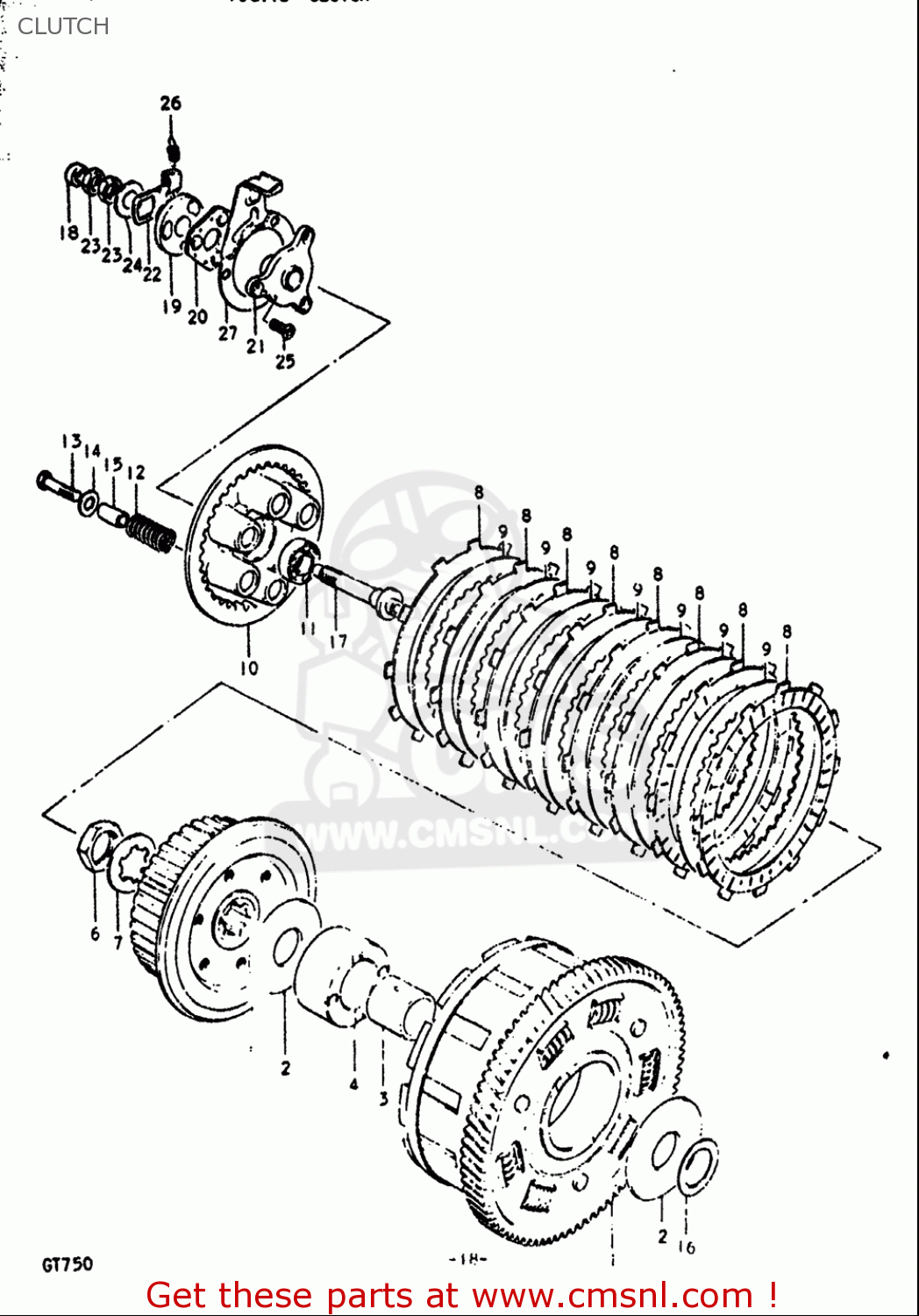

Clutch diagram GT750 1972 (J) USA (E03)
CLUTCH GT750 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0916025020
ref: 2
WASHER
€ 0.00
4
2125149200
ref: 4
SPACER
€ 65.50
6
0914024007
ref: 6
NUT
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
€ 7.50
8
2144145001
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 20.00
9
2145131000
ref: 9
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 9.00
12
0944019007
ref: 12
SPRING
€ 3.00
13
015000840A
ref: 13
BOLT
€ 3.00
14
0832201087
ref: 14
WASHER
€ 2.00
16
0918125186
ref: 16
SHIM(25X36X0.5)
€ 4.50
18
0928210003
ref: 18
OIL SEAL (10X17X5.5)
€ 4.00
20
2325031003
ref: 20
BALL,CLUTCH RELEASE
€ 23.00
23
0914012039
ref: 23
NUT
€ 3.00
25
021220620A
ref: 25
SCREW
€ 2.00
26
0944308001
ref: 26
SPRING
€ 3.00
