MUFFLER

GT750 1972 (J) USA (E03)

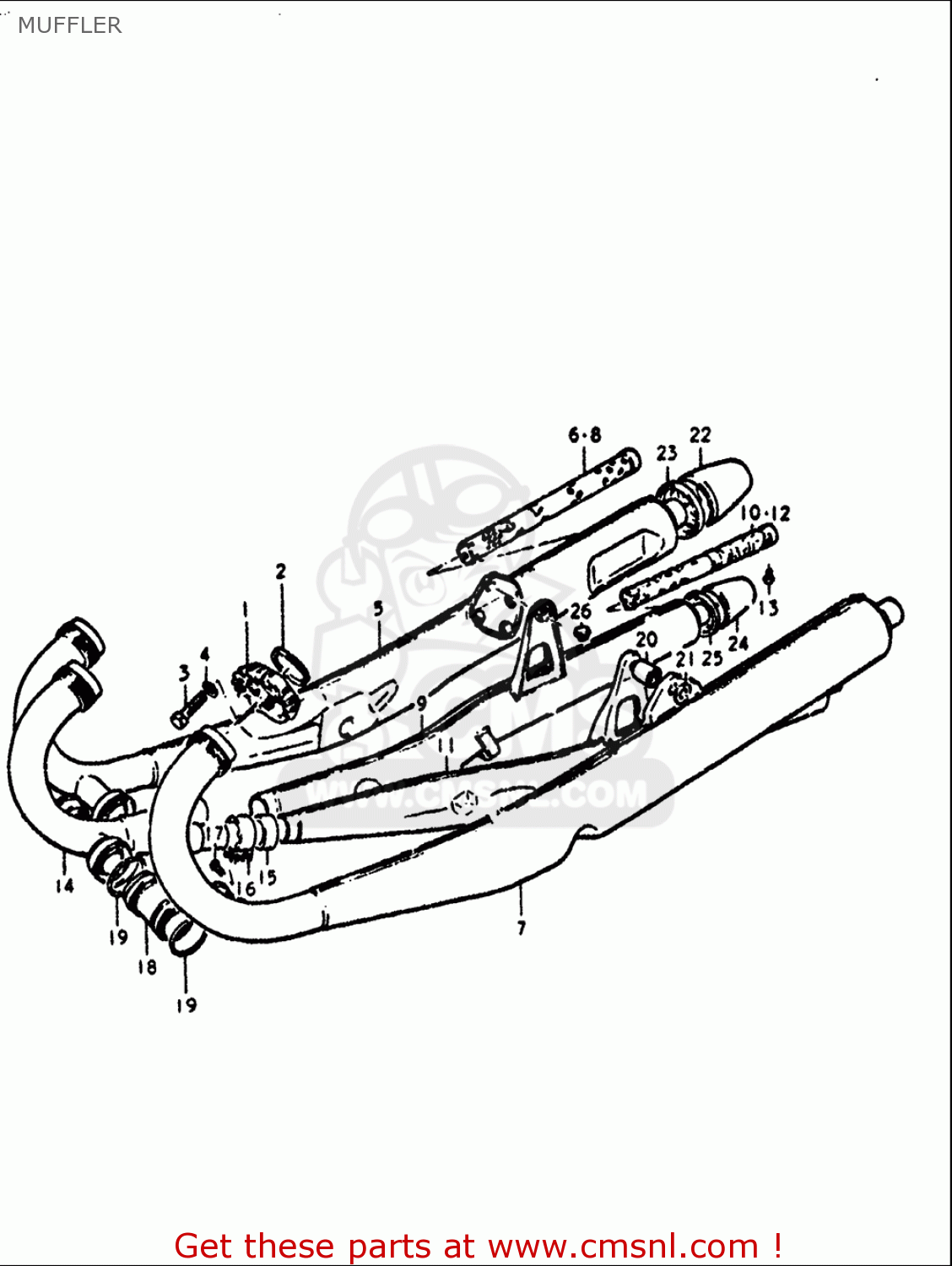

Muffler diagram GT750 1972 (J) USA (E03)

MUFFLER GT750 1972 (J) USA (E03)

MUFFLER GT750 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

1418115020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3

0120408357
ref: 3

BOLT

€ 3.50

4

0832101087
ref: 4

WASHER,LOCK

€ 2.00

6

1451031000
ref: 6

PIPE,BAFFLE

€ 146.50

8

1451031000
ref: 8

PIPE,BAFFLE

€ 146.50

10

1461031000
ref: 10

PIPE,BAFFLE CTR

€ 132.50

12

1461031000
ref: 12

PIPE,BAFFLE CTR

€ 132.50

13

0912505122
ref: 13

SCREW(5X6)

€ 4.00

15

1477106090
ref: 15

CONNECTOR,MUFFLER

€ 10.50

17

0211206207
ref: 17

SCREW

€ 2.00

19

0928043002A
ref: 19

O RING(D:2.6,ID:39.7)

€ 2.50

20

0931910029
ref: 20

BUSH

€ 9.00

21

0832201107
ref: 21

WASHER

€ 2.50

25

1488931000
ref: 25

CLIP, REAR COVER CENTER

€ 2.50

26

0932110007
ref: 26

CUSHION

€ 4.50
