CARBURETOR

T20 TC250 SCRAMBLER 1969 USA (E03)

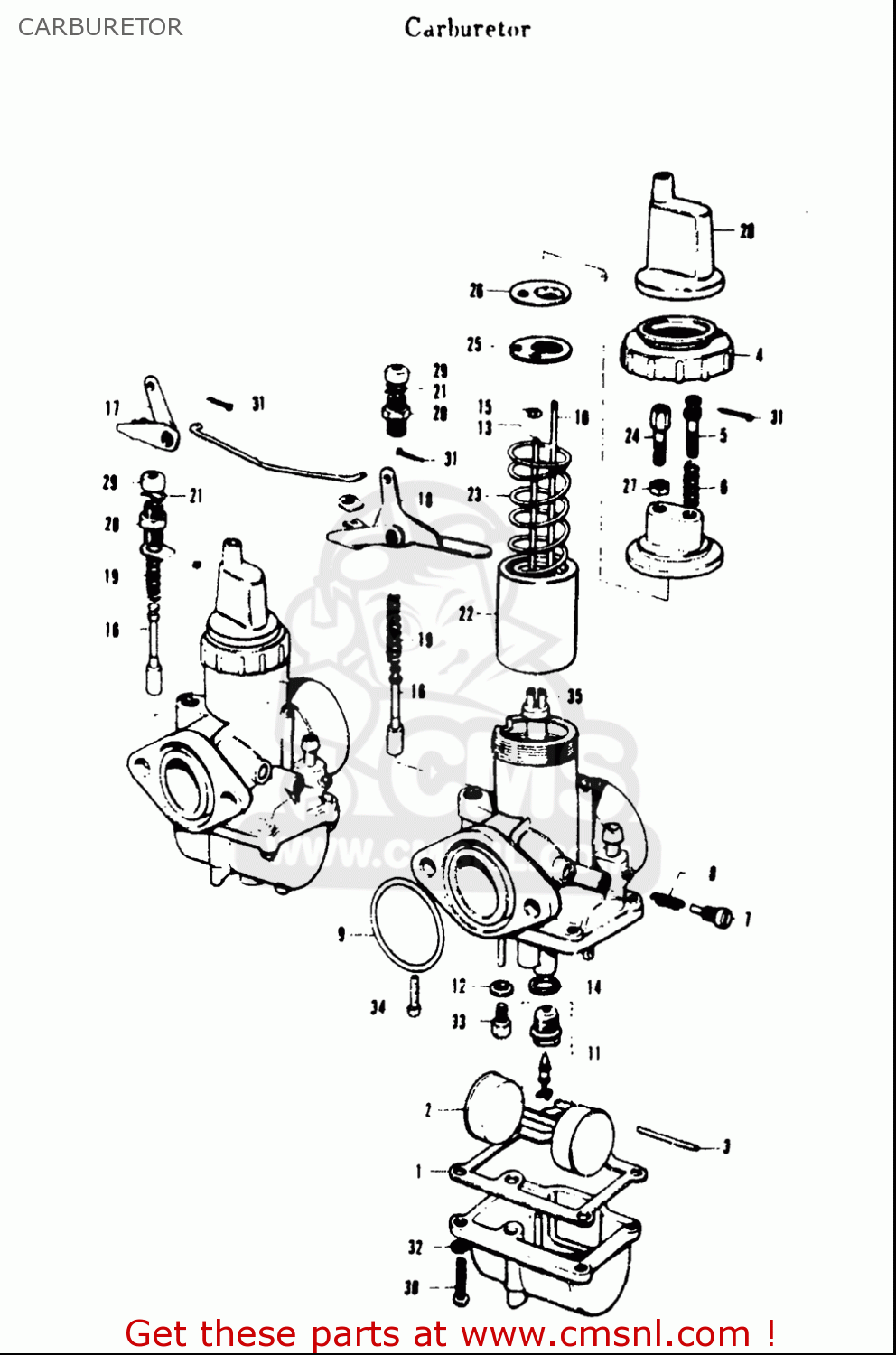

Carburetor diagram T20 TC250 SCRAMBLER 1969 USA (E03)

CARBURETOR T20 TC250 SCRAMBLER 1969 USA (E03)

CARBURETOR T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1325111010
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

2

1325211010
ref: 2

FLOAT

€ 20.50

5

1326709210
ref: 5

SCREW,THROTTLE VALVE ADJUST

€ 4.50

6

1326803110
ref: 6

SPRING,THROTTLE SCREW

€ 3.50

7

1326999010
ref: 7

SCREW,PILOT AIR ADJUSTING

€ 5.50

10

1329611010
ref: 10

ROD,THROTTLE VALVE ADJUST

€ 6.50

11

1337011010
ref: 11

VALVE ASSY,NEEDLE

€ 62.50

12

1338203110
ref: 12

WASHER

€ 2.50

14

1339201010
ref: 14

GASKET,NEEDLE VALVE (NAS)

€ 2.50

15

1339403010
ref: 15

CLIP,NEEDLE

€ 6.00

24

1357748110
ref: 24

ADJUSTER,CABLE

€ 8.00

27

1366103010
ref: 27

NUT

€ 3.50

29

1368209210
ref: 29

CAP,PLUNGER

€ 3.00

32

0832101043
ref: 32

WASHER,LOCK

€ 2.00

33

0949195006
ref: 33

JET,MAIN

€ 8.00

33-1

0949185002
ref: 33-1

JET,MAIN 85

€ 6.00

33-2

0949190002
ref: 33-2

JET,MAIN 90

€ 9.50

33-4

0949122003
ref: 33-4

JET,MAIN 110

€ 7.50

34

0949235001
ref: 34

JET,PILOT

€ 6.50
