PISTON - CRANKSHAFT

T20 TC250 SCRAMBLER 1969 USA (E03)

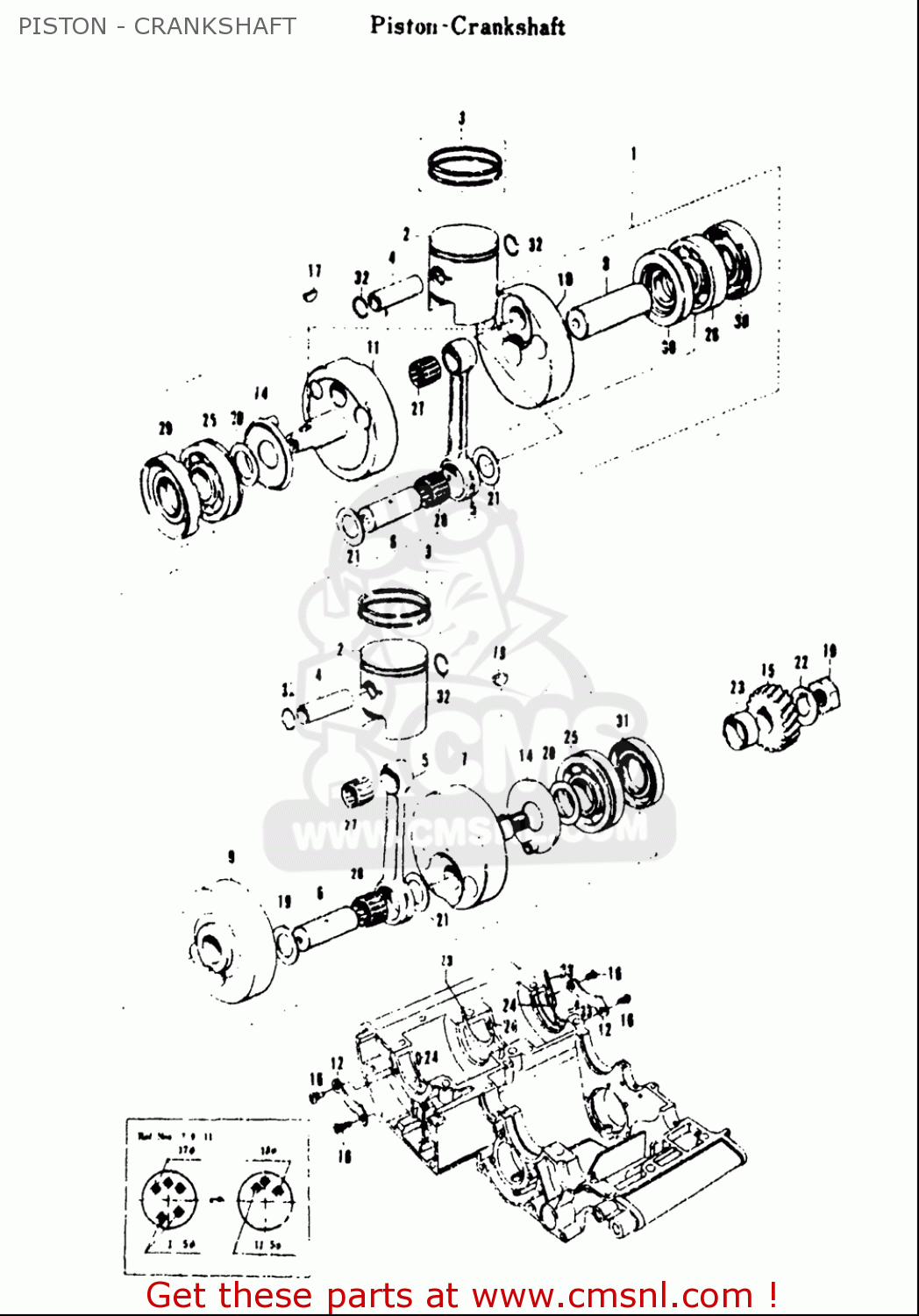

Piston - crankshaft diagram T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1211033004
ref: 2

PISTON (54MM) (PISTON PIN HOLE 14MM)

€ 67.50

2-1

1210333810050
ref: 2-1

PISTON SET(OS:0.5)

€ 125.00

2-2

1210333810100
ref: 2-2

PISTON SET(OS:1.0)

€ 402.50

1215139300
ref: 4

PIN,PISTON

€ 19.50

1216111001
ref: 5

CONNECTING ROD

€ 83.50

1221108201
ref: 6

PIN,CRANK

€ 36.50

0834131039
ref: 17

KEY

€ 2.00

0942004008
ref: 18

KEY

€ 3.50

0821120341
ref: 20

WASHER

€ 2.00

2125113E00
ref: 21

SPACER,PRIMARY DRIVEN GEAR

€ 11.50

0918020013
ref: 23

PRIMARY DRIVE GEAR SPACER

€ 0.00

0926104002
ref: 24

ROLLER(4X13.8)

€ 1.50

0928326004
ref: 31

SEAL,OIL

€ 8.00

0928225004
ref: 26

SEAL,OIL(25X52X5)

€ 9.50

0938114001
ref: 32

RING,SNAP 14MM

€ 1.50

0926314022
ref: 27

BEARING(14X18X19.8)

€ 10.00
