CRANKCASE COVERS - ENGINE SPROCKET COVER - OIL PUMP COVER

T20 TC250 SCRAMBLER 1969 USA (E03)

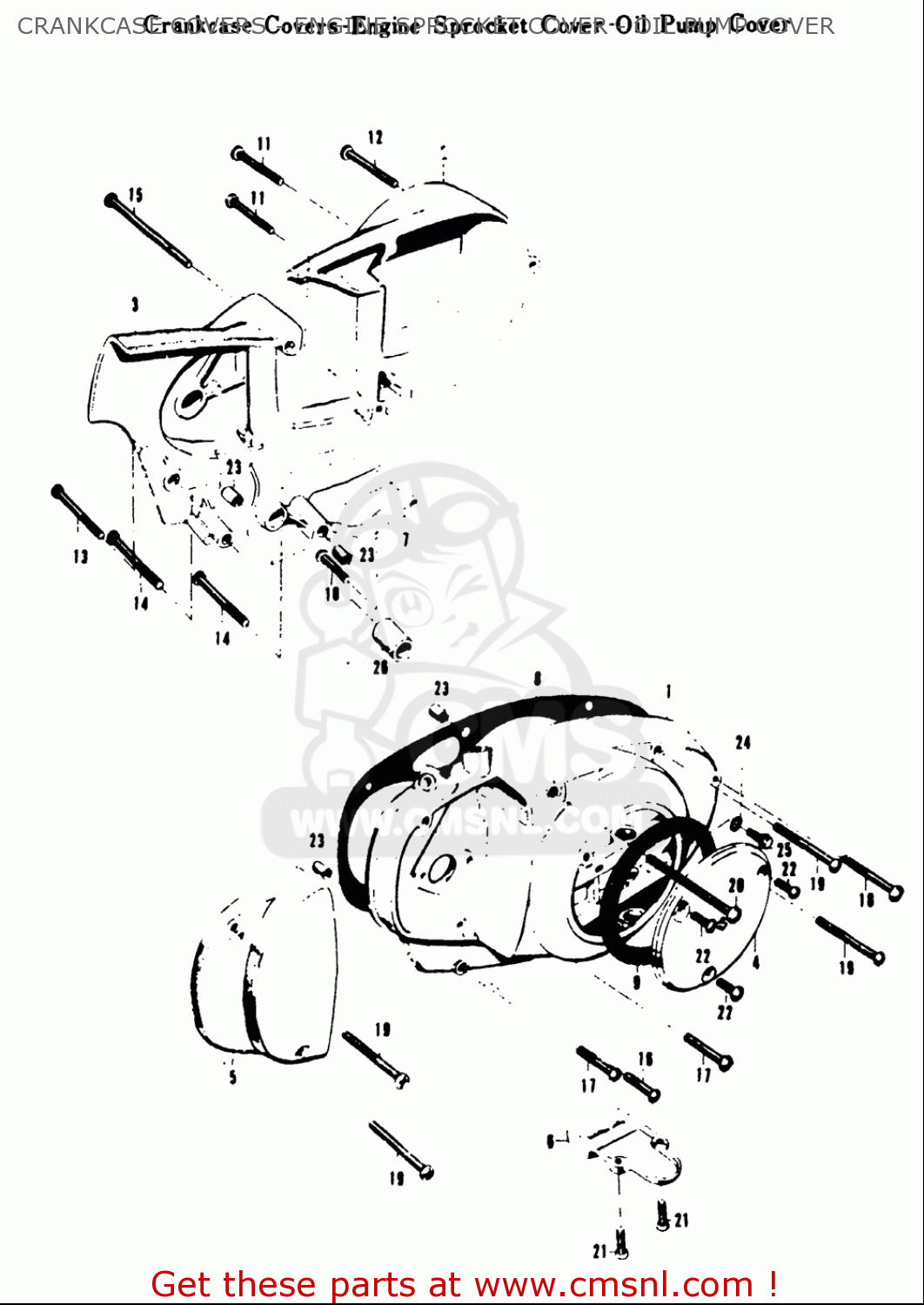

Crankcase covers - engine sprocket cover - oil pump cover diagram T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1148211000
ref: 8

CRANKEASE RIGHT COVER GASKET

€ 6.50

1149511000
ref: 9

CLUTCH RELEASE ADJUSTING CAP G (TC250; I.D.=78(3.07). O.D.=110(4

€ 6.00

0211206207
ref: 16

SCREW

€ 2.00

0211206307
ref: 17

SCREW

€ 2.50

0211206457
ref: 18

SCREW

€ 2.00

0211206507
ref: 19

SCREW

€ 2.50

0211206707
ref: 20

SCREW

€ 3.00

0212206127
ref: 22

SCREW

€ 3.00

0421109129
ref: 23

PIN

€ 2.00

0916806001
ref: 24

GASKET(6.2X11X1) (NAS)

€ 1.50
