SILICON RECTIFIER BATTERY - FUSE - WIRING HARNESS - BRAKE LAMP S

T20 TC250 SCRAMBLER 1969 USA (E03)

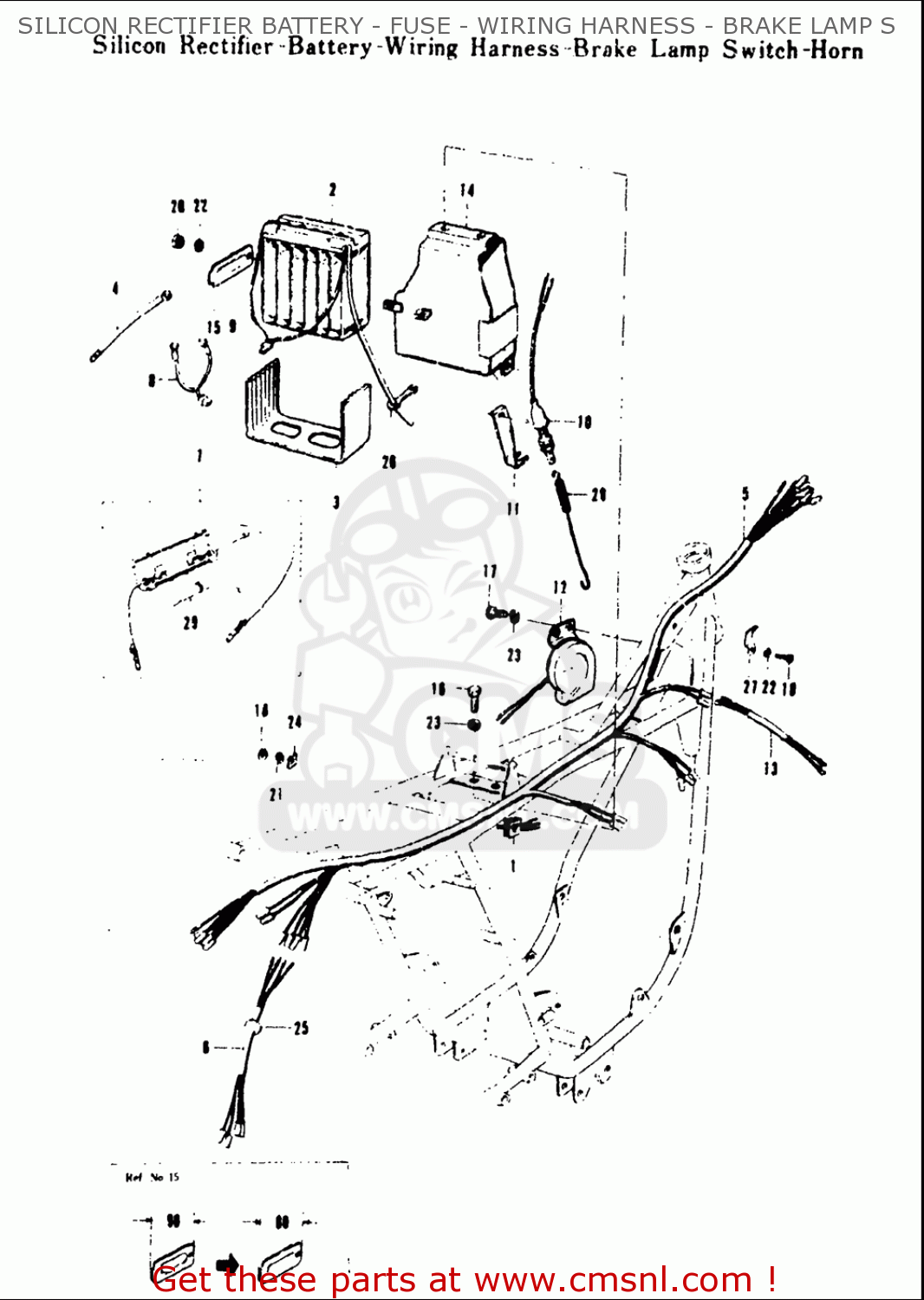

Silicon rectifier battery - fuse - wiring harness - brake lamp s diagram T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

3280018521
ref: 1

RECTIFIER ASSY

€ 119.50

3361035400
ref: 2

BATTERY ASSY(YB5L-B,12V5.3AH)

€ 62.00

3674015011
ref: 7

CASE ASSY,FUSE

€ 11.00

3850011031
ref: 12

HORN ASSY

€ 38.50

0150008163
ref: 16

BOLT

€ 2.00

0150008207
ref: 17

BOLT

€ 3.00

0211206127
ref: 18

SCREW

€ 2.00

0831000057
ref: 19

NUT

€ 2.50

0831000067
ref: 20

NUT

€ 2.50

0832101057
ref: 21

WASHER,LOCK

€ 2.00

0832101067
ref: 22

WASHER,LOCK

€ 2.50

0832101087
ref: 23

WASHER,LOCK

€ 2.00

0944306005
ref: 28

SPRING

€ 6.00

0948115001
ref: 29

FUSE(15A)

€ 3.00
