DUAL SEAT - FRONT FENDER - REAR FENDER

T20 TC250 SCRAMBLER 1969 USA (E03)

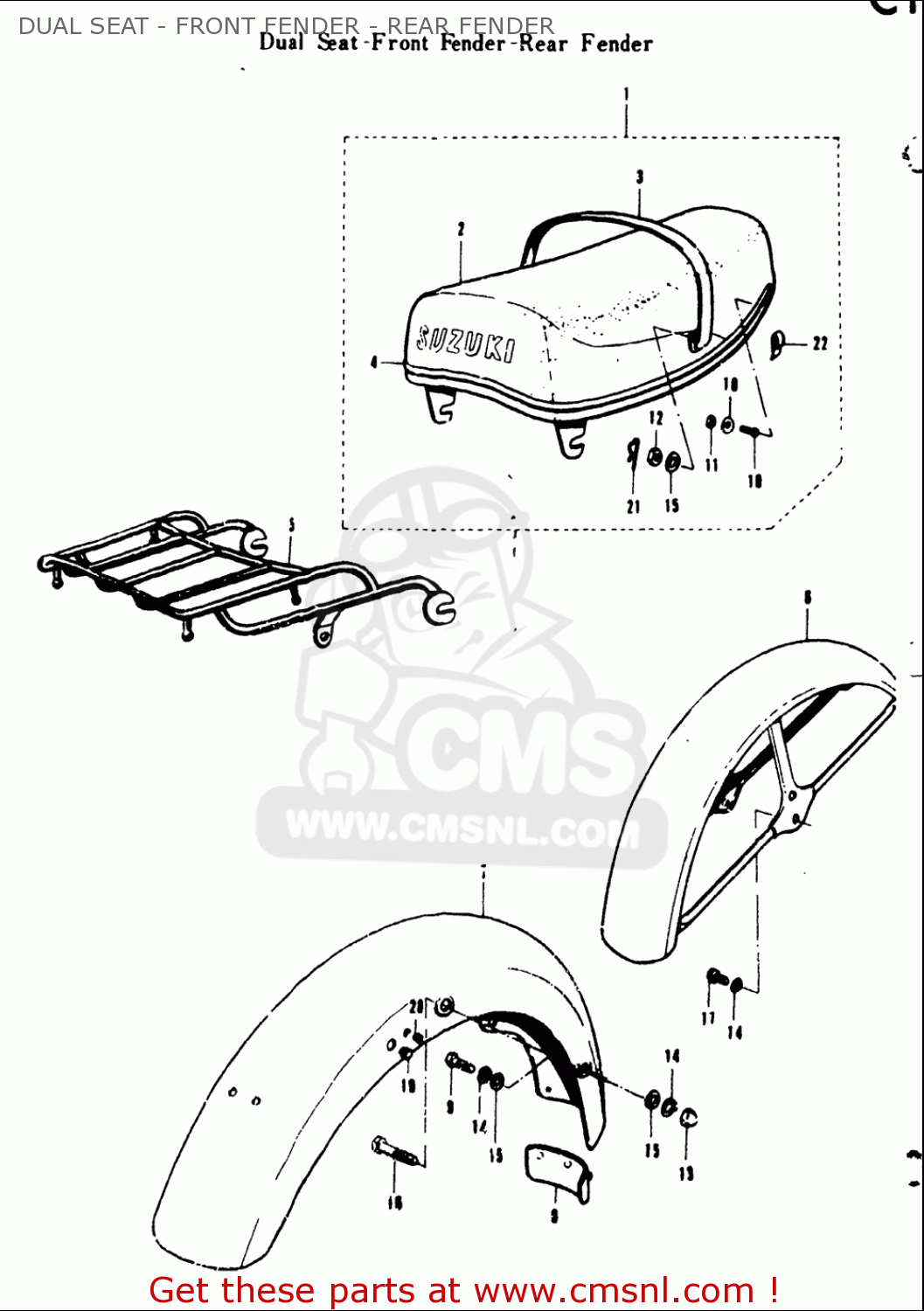

Dual seat - front fender - rear fender diagram T20 TC250 SCRAMBLER 1969 USA (E03)

DUAL SEAT - FRONT FENDER - REAR FENDER T20 TC250 SCRAMBLER 1969 USA (E03)

DUAL SEAT - FRONT FENDER - REAR FENDER T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

11

0831000033
ref: 11

NUT

€ 2.00

12

0831000087
ref: 12

NUT

€ 2.00

13

0831310087
ref: 13

NUT

€ 2.50

14

0832101087
ref: 14

WASHER,LOCK

€ 2.00

15

0832201087
ref: 15

WASHER

€ 2.00

16

0910008290
ref: 16

BOLT(8X47)

€ 3.00

17

0150008123
ref: 17

BOLT

€ 1.50

21

0938506004
ref: 21

CLIP

€ 11.00
