TAIL/BRAKE LAMP

T20 TC250 SCRAMBLER 1969 USA (E03)

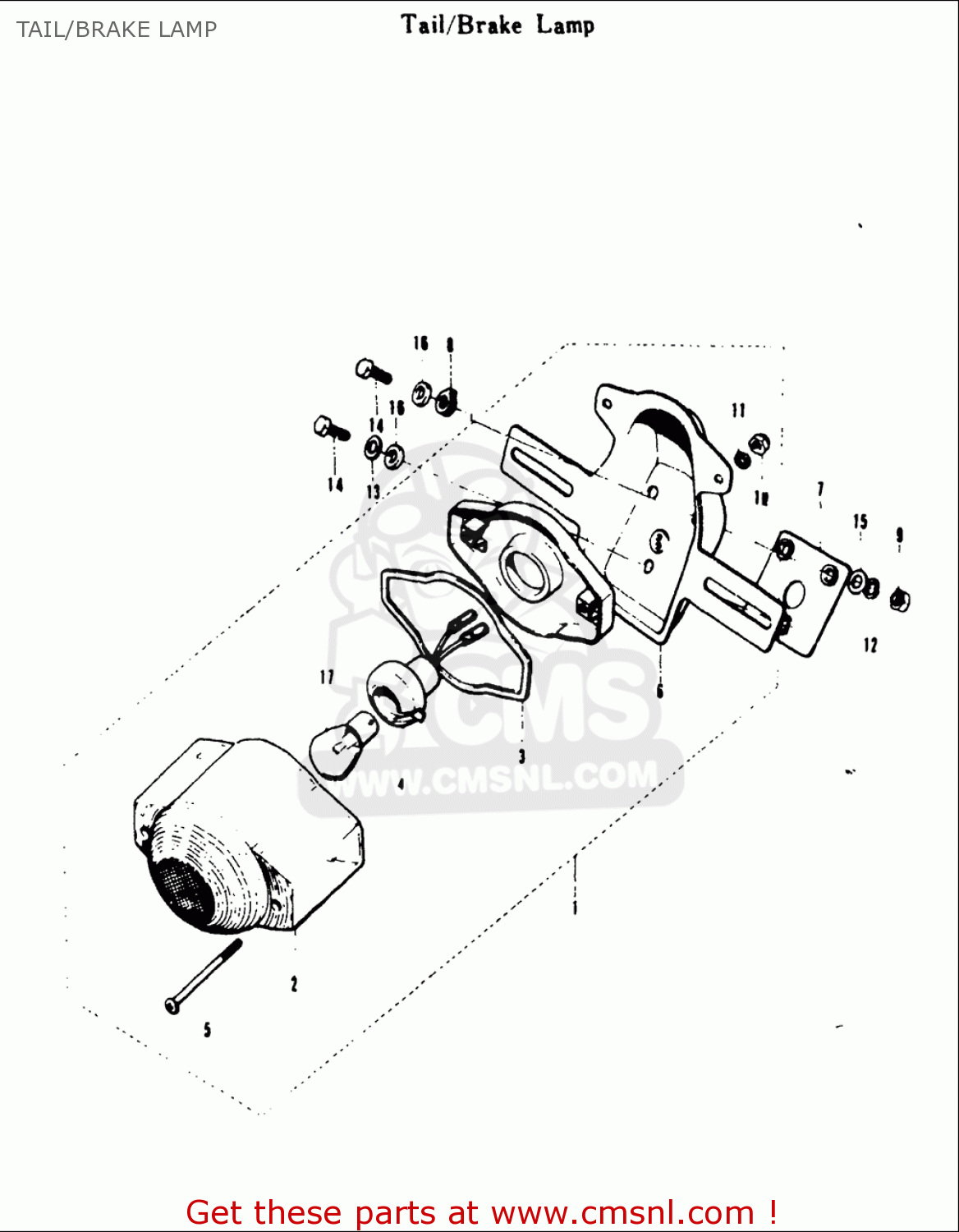

Tail/brake lamp diagram T20 TC250 SCRAMBLER 1969 USA (E03)

TAIL/BRAKE LAMP T20 TC250 SCRAMBLER 1969 USA (E03)

TAIL/BRAKE LAMP T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

9

0831000067
ref: 9

NUT

€ 2.50

9-2

0831000067
ref: 9-2

NUT

€ 2.50

10

0831311047
ref: 10

NUT

€ 2.00

11

0832101043
ref: 11

WASHER,LOCK

€ 2.00

12

0832101067
ref: 12

WASHER,LOCK

€ 2.50

13

0832201067
ref: 13

WASHER

€ 2.00

14-1

0911106001
ref: 14-1

BOLT(6X71.5)

€ 3.00

15

0916006008
ref: 15

WASHER (6.5X13X1)

€ 1.00

17

0947112035
ref: 17

BULB(12V23W)

€ 5.50
