OIL HOSE - OIL PUMP-TACHOMETER WORM GEAR

T20 TC250 SCRAMBLER 1969 USA (E03)

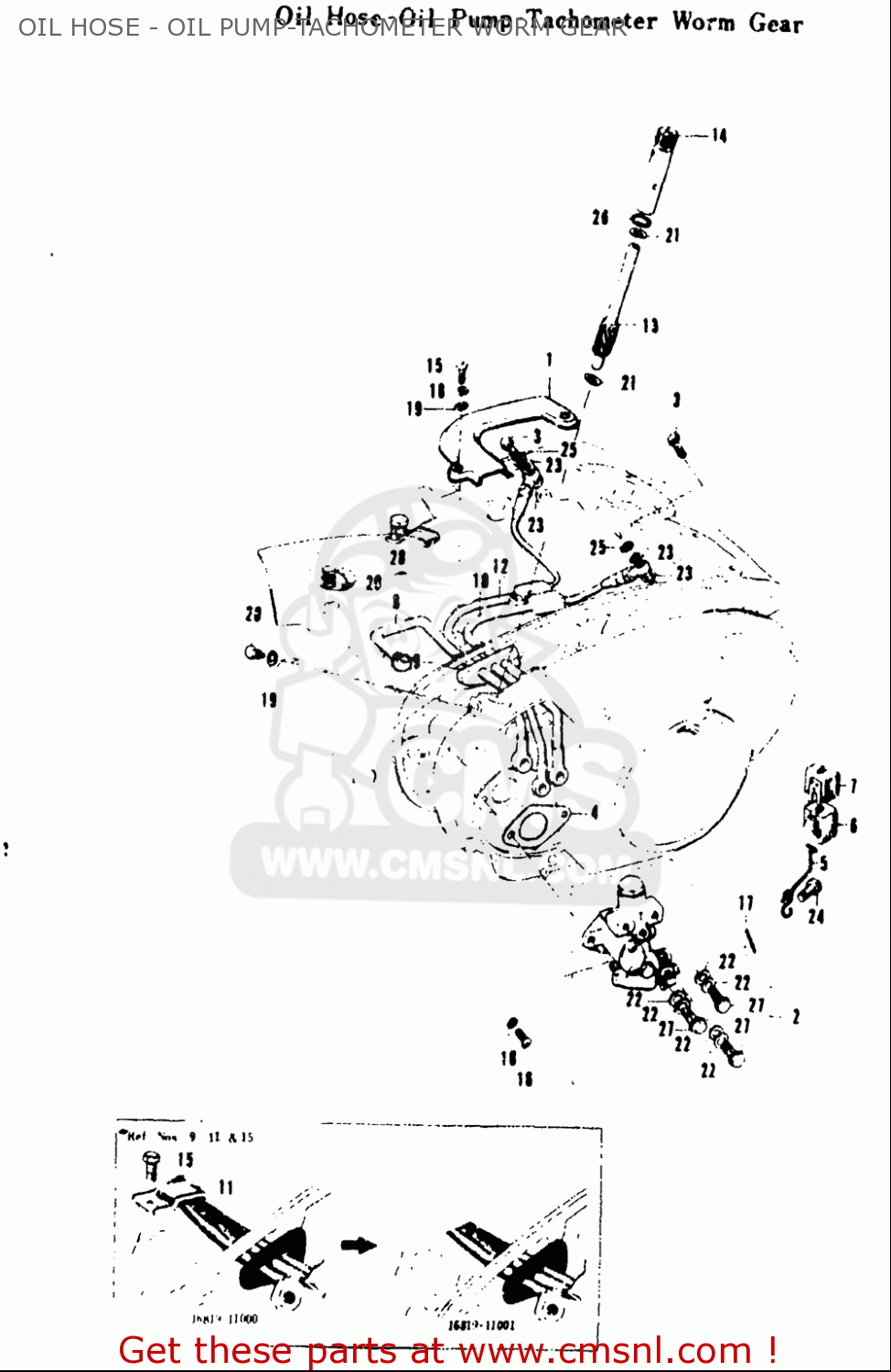

Oil hose - oil pump-tachometer worm gear diagram T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1675511010
ref: 5

OIL PUMP LEVER CHAIN

€ 1.50

1675611030
ref: 6

OIL PUMP LEVER CHAIN CONNECTOR

€ 1.50

1675711030
ref: 7

OIL PUMP LEVER CHAIN CONNECTOR (TC250TC250)

€ 3.50

0211206127
ref: 16

SCREW

€ 2.00

0832101067
ref: 18

WASHER,LOCK

€ 2.50

083220106A
ref: 19

WASHER

€ 2.00

0913506002
ref: 20

BOLT

€ 2.50

0916008003
ref: 21

WASHER(8X13.7X1)

€ 2.00

0916806004
ref: 22

GASKET(6.2X11X1).2 (NAS)

€ 1.50

0916810005
ref: 23

GASKET(10X16X3) (NAS)

€ 6.00

0920004001
ref: 24

OIL PUMP LEVER PIN

€ 3.00

0928008003
ref: 25

O RING(D:1.3,ID:7.6)

€ 1.00

0928010001
ref: 26

O RING(D:1.3,ID:9.6)

€ 2.00

0936006003
ref: 27

UNION BOLT

€ 5.00

OIL HOSE - OIL PUMP-TACHOMETER WORM GEAR
