FRAME - CENTER STAND - FOOTREST BAR - FRAM LEFT COVER

T20 TC250 SCRAMBLER 1969 USA (E03)

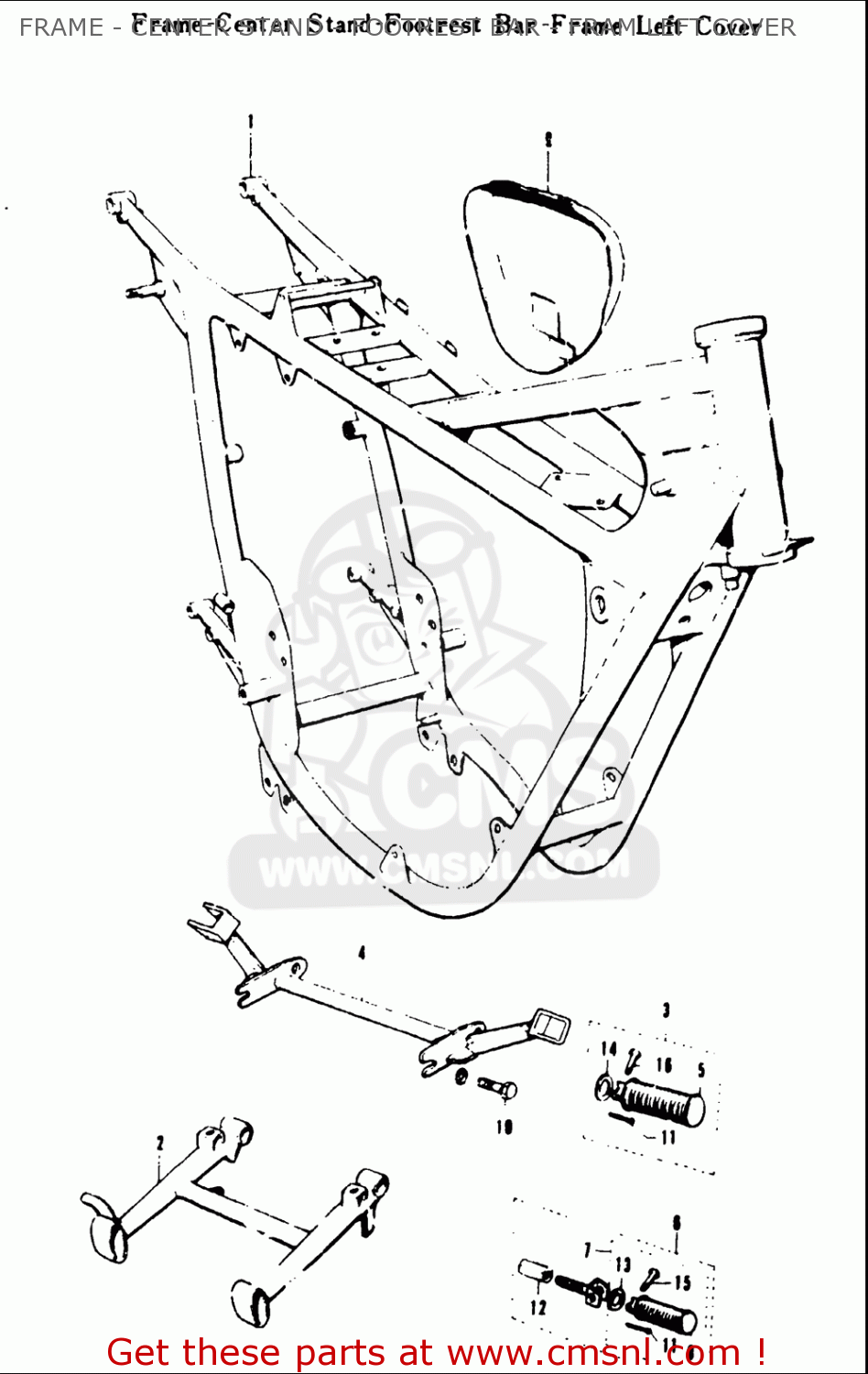

Frame - center stand - footrest bar - fram left cover diagram T20 TC250 SCRAMBLER 1969 USA (E03)

FRAME - CENTER STAND - FOOTREST BAR - FRAM LEFT COVER T20 TC250 SCRAMBLER 1969 USA (E03)

FRAME - CENTER STAND - FOOTREST BAR - FRAM LEFT COVER T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

10

0150008207
ref: 10

BOLT

€ 3.00

12

0915910003
ref: 12

NUT

€ 2.00

13

0916019024
ref: 13

WASHER(19.5X32X2)

€ 2.00

14

0916022033
ref: 14

WASHER(22.5X38X1)

€ 3.50

15

0920006010
ref: 15

PIN

€ 2.50

16

0920008002
ref: 16

PIN

€ 2.00
