CLUTCH

T20 TC250 SCRAMBLER 1969 USA (E03)

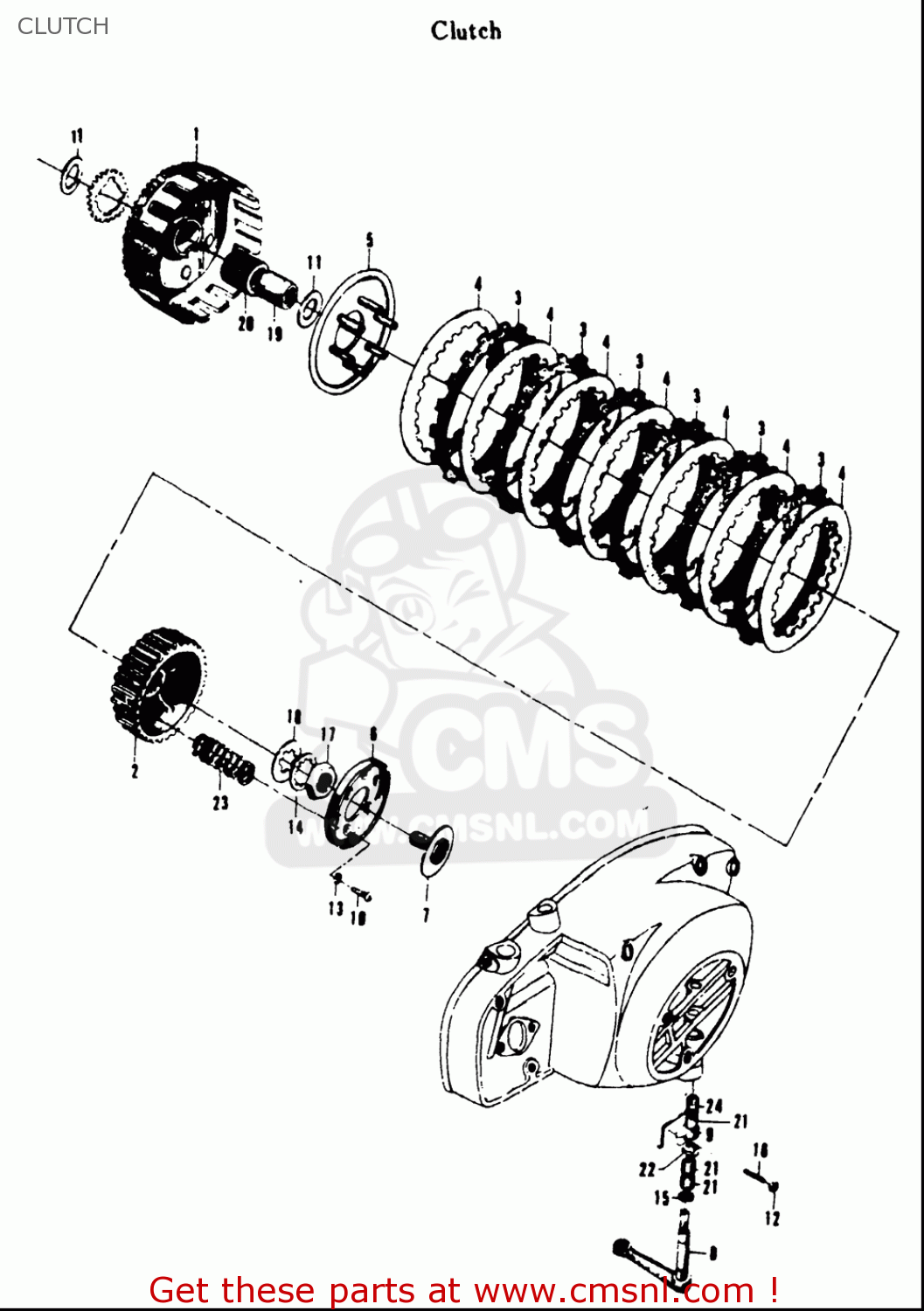

Clutch diagram T20 TC250 SCRAMBLER 1969 USA (E03)

CLUTCH T20 TC250 SCRAMBLER 1969 USA (E03)

CLUTCH T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

10-1

0211205207
ref: 10-1

SCREW

€ 3.00

11

0916020028
ref: 11

WASHER(20X38X2)

€ 6.50

12

0831000067
ref: 12

NUT

€ 2.50

13

0832101057
ref: 13

WASHER,LOCK

€ 2.00

15

0928210001
ref: 15

SEAL,OIL(10X17X5)

€ 4.00

17

0914020001
ref: 17

NUT

€ 3.50

18

0916720009
ref: 18

WASHER,LOCK

€ 3.00

21

0930410003
ref: 21

BUSHING

€ 10.50

22

0833211093
ref: 22

E RING

€ 1.50
