OPTIONAL

T20 TC250 SCRAMBLER 1969 USA (E03)

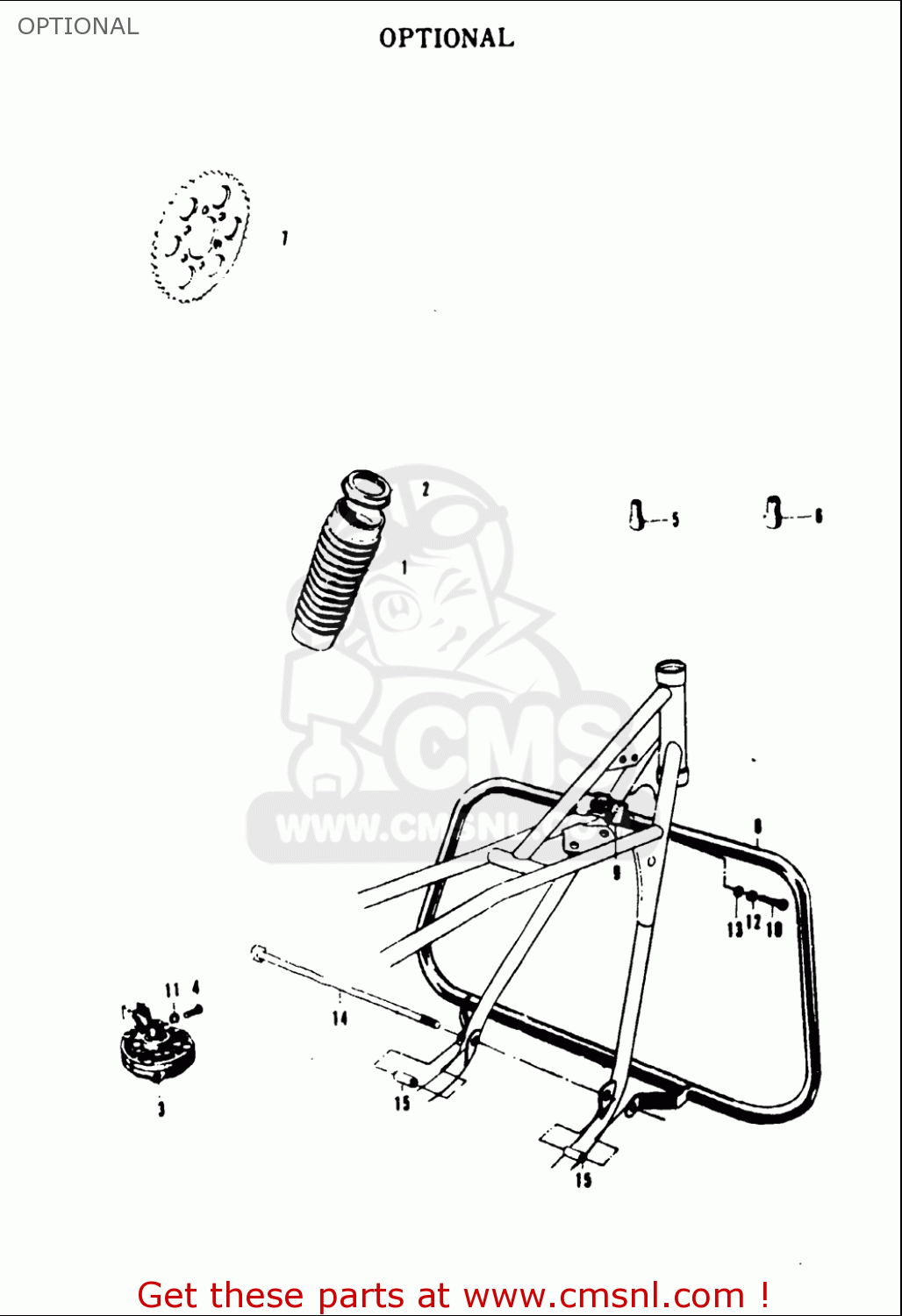

Optional diagram T20 TC250 SCRAMBLER 1969 USA (E03)

OPTIONAL T20 TC250 SCRAMBLER 1969 USA (E03)

OPTIONAL T20 TC250 SCRAMBLER 1969 USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5157111010
ref: 1

BOOT,SPRING COVER

€ 36.50

5

5541111000
ref: 5

BALANCER,WHEEL (B)

€ 4.50

6

5541211000
ref: 6

BALANCER,WHEEL (30G)

€ 8.00

11

0832101087
ref: 11

WASHER,LOCK

€ 2.00

13

0832201087
ref: 13

WASHER

€ 2.00

16

0982500002
ref: 16

LEVER,TIRE

€ 16.50
